M037
boert·KC85__M037_segmented_ROM·Platine/KiCad-Projekt/M037.kicad_pcb

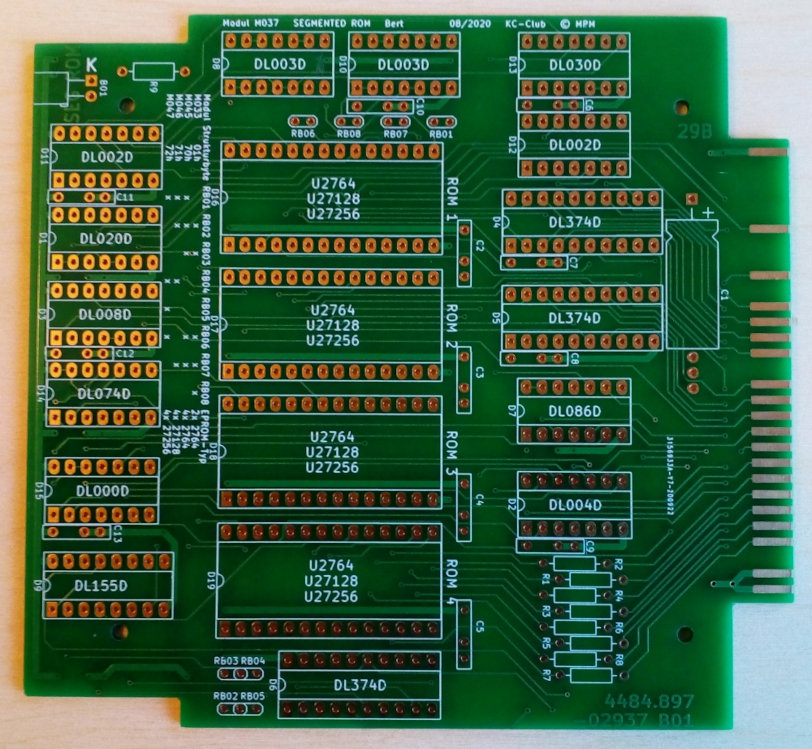

About the M037 PCB
M037 is an open source PCB design by boert, published on GitHub under the MIT license. It is a 2-layer board measuring 114.5 × 122.5 mm, with 43 components from 19 distinct parts.
By type, the board carries 19 diodes, 13 capacitors, 9 resistors, 1 crystal and 1 LED.
It belongs with the retro computing designs in this gallery.
From the project
Modul für den KC85/3/4/5: Segmentierter ROM in den Größen 32, 64 oder 128 kByte
Dokument | Verweis -------- | ------- Schaltplan | M037Schaltplan.pdf Layout | M037Platine.pdf Stückliste/BOM | M037Stueckliste.xls Bestückungshilfe | M037Bestueckhilfe.html

M037 bill of materials (BOM)
43 components, 19 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | KC85_MODULSTECKVERBINDER | KC85_Modul_M037 | X1 |
| 1 | VQA33 | LED_D5.0mm_Horizontal_O3.81mm_Z3.0mm | B01 |
| 1 | DL020D | DIP-14_W7.62mm_Socket_LongPads | D1 |
| 1 | DL004D | DIP-14_W7.62mm_Socket_LongPads | D2 |
| 1 | DL008D | DIP-14_W7.62mm_Socket_LongPads | D3 |
| 3 | DL374D | DIP-20_W7.62mm_Socket_LongPads | D4, D5, D6 |
| 1 | DL086D | DIP-14_W7.62mm_Socket_LongPads | D7 |
| 2 | DL003D | DIP-14_W7.62mm_Socket_LongPads | D8, D10 |
| 1 | DL155D | DIP-16_W7.62mm_Socket_LongPads | D9 |
| 2 | DL002D | DIP-14_W7.62mm_Socket_LongPads | D11, D12 |
| 1 | DL030D | DIP-14_W7.62mm_Socket_LongPads | D13 |
| 1 | DL074D | DIP-14_W7.62mm_Socket_LongPads | D14 |
| 1 | DL000D | DIP-14_W7.62mm_Socket_LongPads | D15 |
| 4 | U27256 | DIP-28_W15.24mm_Socket_LongPads | D16, D17, D18, D19 |
| 1 | 470/6,3 | CP_Axial_L21.0mm_D10.0mm_P25.0mm...35.0mm_Horizontal | C1 |
| 4 | 100n | C_Disc_D8.0mm_W2.0mm_P5.00mm_P7.50mm | C2, C3, C4, C5 |
| 8 | 33n | C_Disc_D8.0mm_W2.0mm_P5.00mm_P7.50mm | C6, C7, C8, C9, C10, C11, C12, C13 |
| 8 | 100 | R_Axial_L6.3mm_D2.0mm_P10.16mm_Horizontal | R1, R2, R3, R4, R5, R6, R7, R8 |
| 1 | 240 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R9 |
M037 design files
The KiCad project lives in the boert/KC85__M037_segmented_ROM repository on GitHub; these links point at the commit this page was built from.
M037: common questions
How big is the M037 PCB?
The M037 measures 114.5 × 122.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the M037?
43 components, from 19 distinct parts. The full bill of materials is listed on this page.
Where can I download the M037 design files?
From the boert/KC85__M037_segmented_ROM repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the M037 design in my own project?
Yes, under the terms of its MIT license, which boert chose for the repository.
