NYSM2 Open Stepper Standard PCB layout, top view — open source board by BoltzRnD

About the NYSM2 Open Stepper Standard PCB

NYSM2 Open Stepper Standard is an open source PCB design by BoltzRnD, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 22 × 28.5 mm, with 17 components from 11 distinct parts.

Other key parts include the TMC2209 and M.2-B-KEY. By type, the board carries 7 capacitors, 7 resistors and 2 ICs.

It belongs with the robotics & motion designs in this gallery.

From the project

An M.2 Key B Based Open Modular Stasndard for 3D Printer Stepper Driver Modules.

Modular stepper drivers are far superior than traditional pololu footprints as it has

1. Poka-yoke installations: The Key's in the interfaces makes sure that you never mess up installation orientations of the driver

apart from this NYSM.2 extends beyond these to provide more features as below:

1. physical locking mechanisms: to make sure drivers are locked in when In operation.

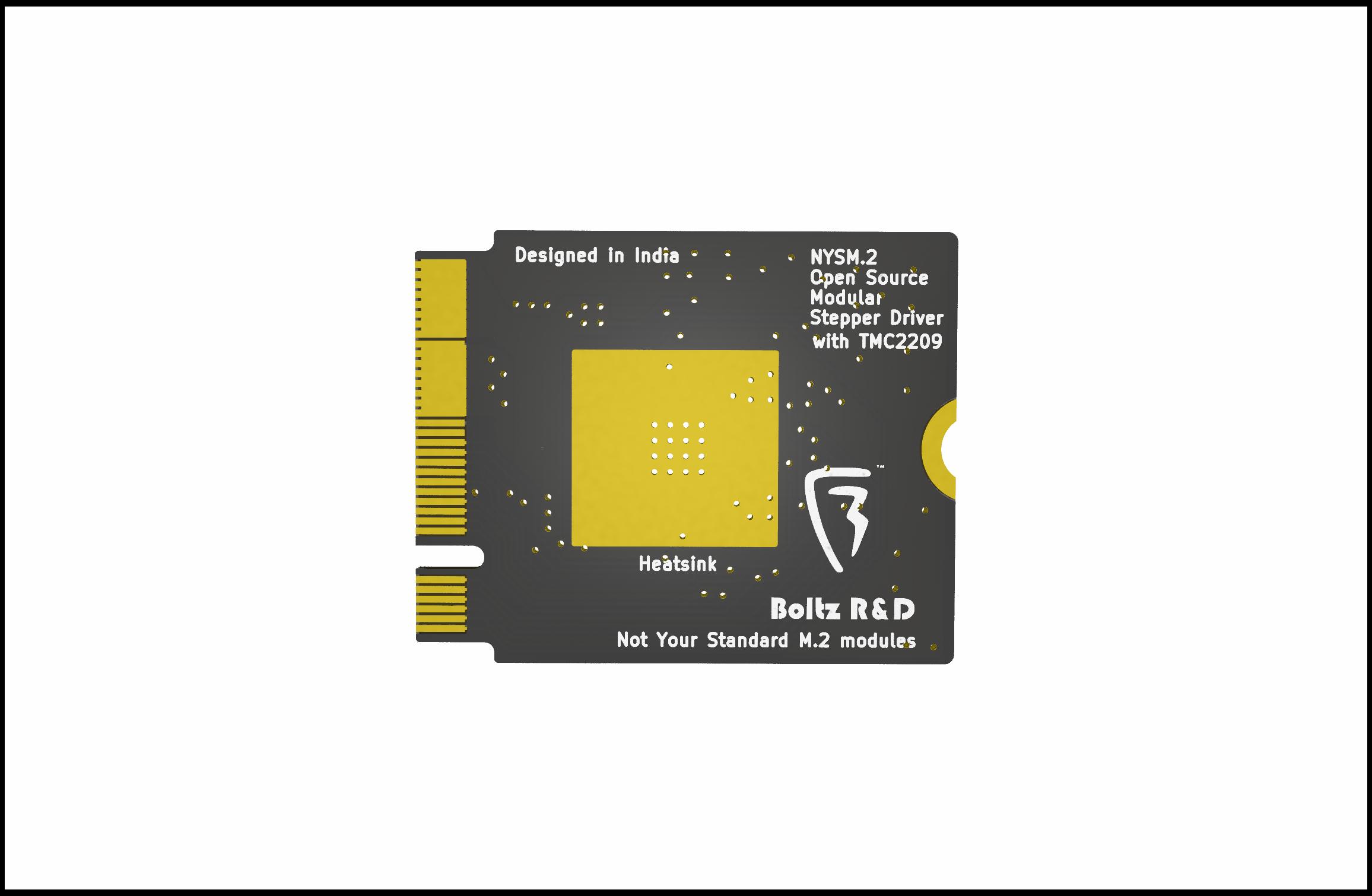

NYSM2 Open Stepper Standard, from the project README — From the project README

Main components on the NYSM2 Open Stepper Standard

TMC2209 M.2-B-KEY

NYSM2 Open Stepper Standard bill of materials (BOM)

17 components, 11 distinct parts.

Qty	Part	Footprint	Refs
1	TMC2209	QFN28_5X5_TRI	U1
1	M.2-B-KEY	NYSM2-Card-B-Key	U2
1	VG039NCHXTB203 20K	Potentiometer_Bourns_TC33X_Vertical	RV1
1	CC0402KRX7R9BB223 22nF/50V	C_0402_1005Metric	C1
4	0402B104K500CT 100nF/50V	C_0402_1005Metric	C2, C6, C9, C10
1	CL05A475KP5NRNC 4.7uF 10V	C_0402_1005Metric	C7
1	GRM155R61H105KE05D 1uF/50V	C_0402_1005Metric	C8
3	WR04X203JTL 20K	R_0402_1005Metric	R1, R2, R6
1	WR04X1001FTL 1K	R_0402_1005Metric	R3
1	WR04X104JTL 100K	R_0402_1005Metric	R7
2	NC	R_0402_1005Metric	R8, R9

NYSM2 Open Stepper Standard design files

The KiCad project lives in the BoltzRnD/NYSM2_Open_Stepper_Standard repository on GitHub; these links point at the commit this page was built from.

NYSM2 Open Stepper Standard: common questions

How big is the NYSM2 Open Stepper Standard PCB?

The NYSM2 Open Stepper Standard measures 22 × 28.5 mm, has 2 copper layers and is 0.89 mm thick.

How many components are on the NYSM2 Open Stepper Standard?

17 components, from 11 distinct parts. The full bill of materials is listed on this page.

Where can I download the NYSM2 Open Stepper Standard design files?

From the BoltzRnD/NYSM2_Open_Stepper_Standard repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the NYSM2 Open Stepper Standard design in my own project?

Yes, under the terms of its GPL-3.0 license, which BoltzRnD chose for the repository.
