FilpperZero Gameboy Link
BoredModder·FilpperZero_Gameboy_Link
About the FilpperZero Gameboy Link PCB
FilpperZero Gameboy Link is an open source PCB design by BoredModder, published on GitHub under the CC0-1.0 license. It is a 2-layer board measuring 14 × 12.7 mm, with 5 components from 5 distinct parts.
By type, the board carries 2 connectors, 2 resistors and 1 diode.
It belongs with the retro computing designs in this gallery.
From the project

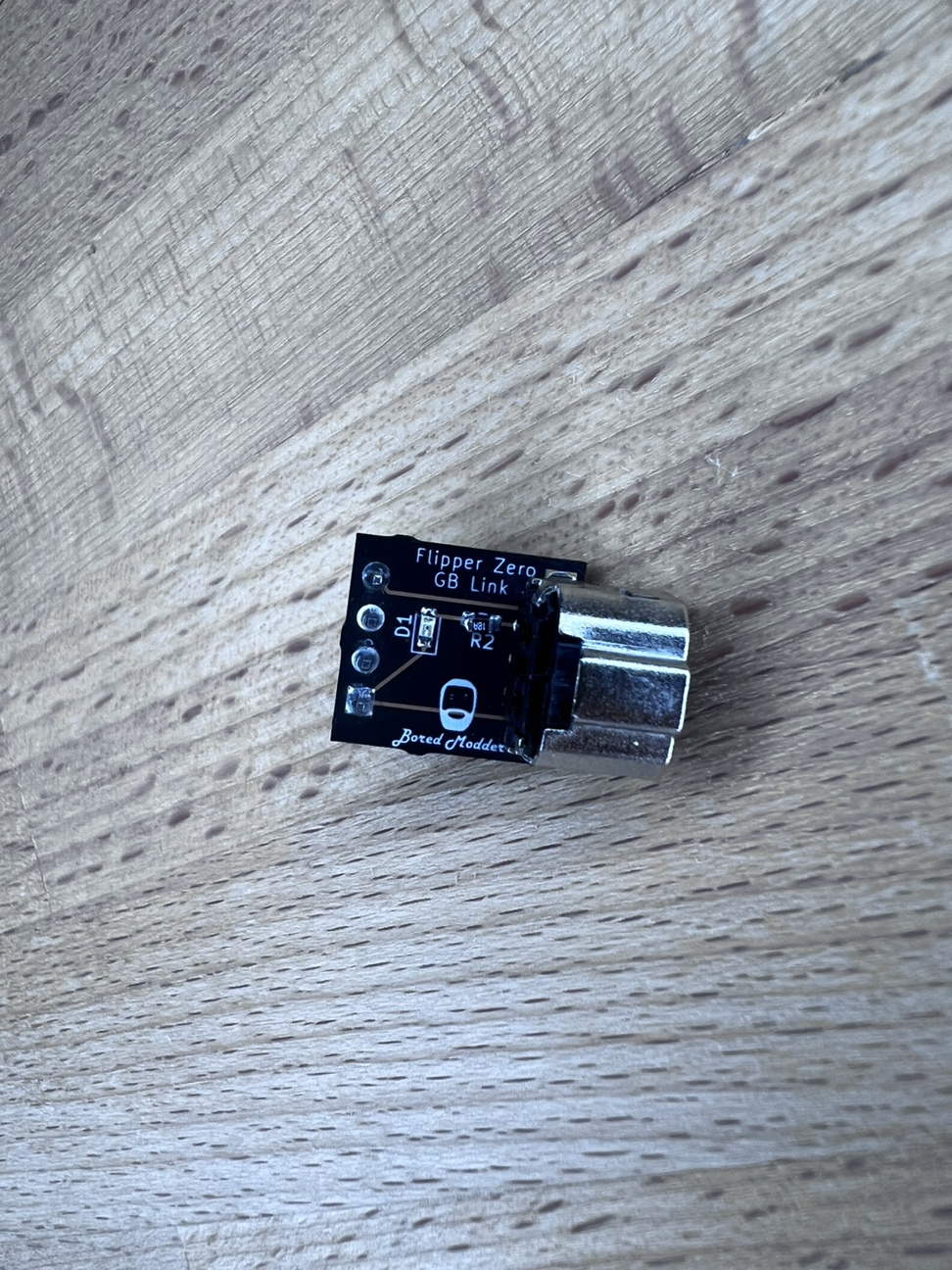

A module for the Flipper Zero to connect to the Gameboy via the link port
This is a module I worked on as a project to learn about PCB design, but to also learn about KiCAD, which is the program that was used to create this. I used GAME BOY Pokemon Trading MALVEKE to create this. Check is out because he is a way smarter guy than I.
If you want a simple way to get the PCB it is up in OshPark.
I use his GPIO layout so you will want to do the same on your flipper zero. If you use his Pokemon app in flipper.net then it will be the under "Select Pinout" > "Original".

FilpperZero Gameboy Link bill of materials (BOM)
5 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 0022232041 Molex | PinHeader_1x04_P2.54mm_Vertical | J1 |
| 1 | LINKPORTCGB-LINK | CGB-LINK | P1 |
| 1 | LED | LED_0603_1608Metric | D1 |
| 1 | 33k | R_0603_1608Metric | R1 |
| 1 | 150 | R_0603_1608Metric | R2 |
FilpperZero Gameboy Link design files
The KiCad project lives in the BoredModder/FilpperZero_Gameboy_Link repository on GitHub; these links point at the commit this page was built from.
FilpperZero Gameboy Link: common questions
How big is the FilpperZero Gameboy Link PCB?
The FilpperZero Gameboy Link measures 14 × 12.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the FilpperZero Gameboy Link?
5 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the FilpperZero Gameboy Link design files?
From the BoredModder/FilpperZero_Gameboy_Link repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the FilpperZero Gameboy Link design in my own project?
Yes, under the terms of its CC0-1.0 license, which BoredModder chose for the repository.
