About the RCP2N64Adv2 PCB

RCP2N64Adv2 is an open source FPGA PCB design by borti4938, published on GitHub under the CERN-OHL-W-2.0 license. It is a 2-layer board measuring 129.6 × 23.9 mm, with 8 components from 4 distinct parts.

Its main chip is the 10M16SAE144, from the FPGA family. By type, the board carries 6 resistors, 1 IC and 1 capacitor.

It belongs with the usb & debug tools designs in this gallery.

From the project

This repository contains all you need files to build your own DIY N64 Advanced board. Firmware is supplied in another repository.

This repository contains all you need files to build your own DIY N64 Advanced board. Firmware is supplied in another repository.

Please don't ask me for selling a modding. I either sell some prototypes on some forums marketplaces (which is very unlikely) or I don't have any of the boards. This is a complete DIY modding project. Everybody is on his own here.

WARNING: This is an advanced DIY project if you do everything on your own. You need decent soldering skills. The FPGA ad Video transmitter have 0.5mm fine pitch with 144pins and 64pins, respectively, and each has an exposed pad below…

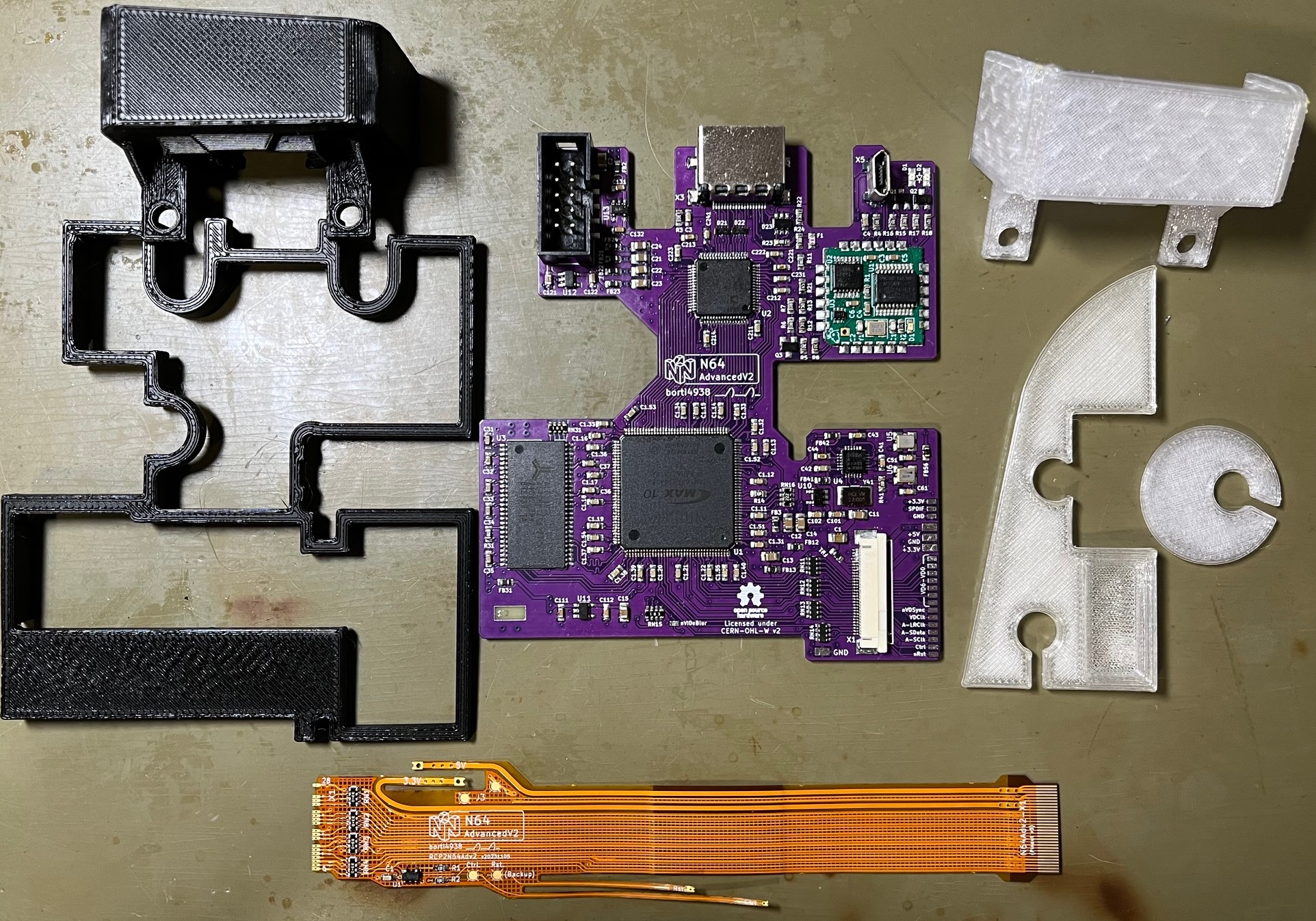

RCP2N64Adv2, from the project README
From the project README

Main components on the RCP2N64Adv2

10M16SAE144

RCP2N64Adv2 bill of materials (BOM)

8 components, 4 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
10M16SAE144
74LVC1G17
U1
1
100nF
C1
2
47
R1, R2
4
R_Pack04
RN1, RN2, RN3, RN4

RCP2N64Adv2 design files

The KiCad project lives in the borti4938/n64adv2_pcb repository on GitHub; these links point at the commit this page was built from.

RCP2N64Adv2: common questions

What microcontroller does the RCP2N64Adv2 use?

The RCP2N64Adv2 is built around the 10M16SAE144, from the FPGA family.

How big is the RCP2N64Adv2 PCB?

The RCP2N64Adv2 measures 129.6 × 23.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the RCP2N64Adv2?

8 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the RCP2N64Adv2 design files?

From the borti4938/n64adv2_pcb repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the RCP2N64Adv2 design in my own project?

Yes, under the terms of its CERN-OHL-W-2.0 license, which borti4938 chose for the repository.

Can I test firmware for the RCP2N64Adv2 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
