Picodrone PCB layout, top view — open source RP2040/RP2350 board by bradley-ray

About the Picodrone PCB

Picodrone is an open source RP2040/RP2350 PCB design by bradley-ray, published on GitHub. It is a 2-layer board measuring 35.6 × 71.1 mm, with 32 components from 10 distinct parts.

Its main chip is the RPi Pico, from the RP2040/RP2350 family. By type, the board carries 15 resistors, 9 connectors, 4 transistors and 4 diodes.

It belongs with the robotics & motion designs in this gallery.

From the project

- hardware/ contains the kicad schematic and pcb layout files - qx95 drone frame - 8520 brushed motors - header sockets for raspberry pi pico - header sockets for mpu 6050 breakout board - header sockets for sd card spi breakout board (future use)

- hardware/ contains the kicad schematic and pcb layout files - qx95 drone frame - 8520 brushed motors - header sockets for raspberry pi pico - header sockets for mpu 6050 breakout board - header sockets for sd card spi breakout board (future use)

- firmware/ contains the code for the microcontroller - requires picosdk to be downloaded and PICOSDKPATH to be set - uses btstack` and bluetooth rfcomm to receive control commands over bluetooth connection

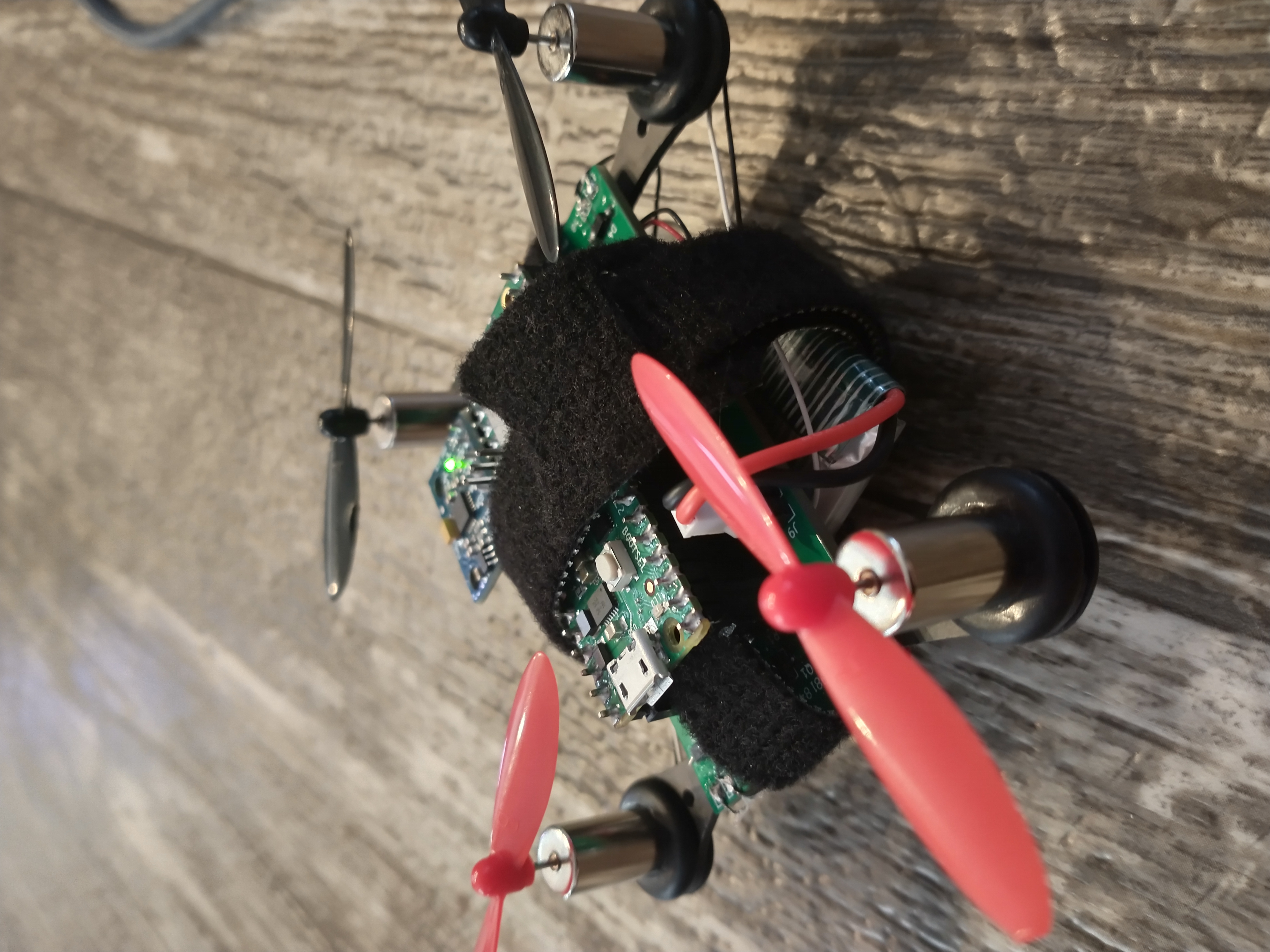

Picodrone, from the project README
From the project README

Picodrone bill of materials (BOM)

32 components, 10 distinct parts.

QtyPartRefs
4
NMOS
Q1, Q2, Q3, Q4
2
RPi Pico
J1, J2
1
MPU6050
J3
1
SD Card
J4
4
Motor
J5, J6, J7, J8
1
Battery
J9
4
Flyback
D1, D2, D3, D4
9
10k
R1, R4, R6, R8, R11, R12, R13, R14 +1
4
330
R2, R3, R5, R7
2
1M
R9, R10

Picodrone design files

The KiCad project lives in the bradley-ray/picodrone repository on GitHub; these links point at the commit this page was built from.

Picodrone: common questions

What microcontroller does the Picodrone use?

The Picodrone is built around the RPi Pico, from the RP2040/RP2350 family.

How big is the Picodrone PCB?

The Picodrone measures 35.6 × 71.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Picodrone?

32 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the Picodrone design files?

From the bradley-ray/picodrone repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Picodrone design in my own project?

The repository has no license, so all rights stay with bradley-ray. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Picodrone without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
