Z88 Serial to DB25 PCB layout, top view — open source board by BrettHallen
Simulate this board

About the Z88 Serial to DB25 PCB

Z88 Serial to DB25 is an open source PCB design by BrettHallen, published on GitHub. It is a 2-layer board measuring 14 × 42 mm, with 3 components from 3 distinct parts.

It belongs with the test & measurement designs in this gallery.

From the project

Projects for Sinclair computers (ZX80, ZX81, TS1000, TS1500, TS2068, Spectrum and clones)

To connect to a device with a DB25 plug we need to through-connect the DE9 pins to the equivalent on the DB25 side. Additionally, we need to connect DB25 pin 6 (DSR, data set ready) to the DCD signal.

Note that DB25 pin 1 is Protective Ground (PG) and must not be connected to signal ground.

Z88 side: DE9 male DB25 side: DB25 female

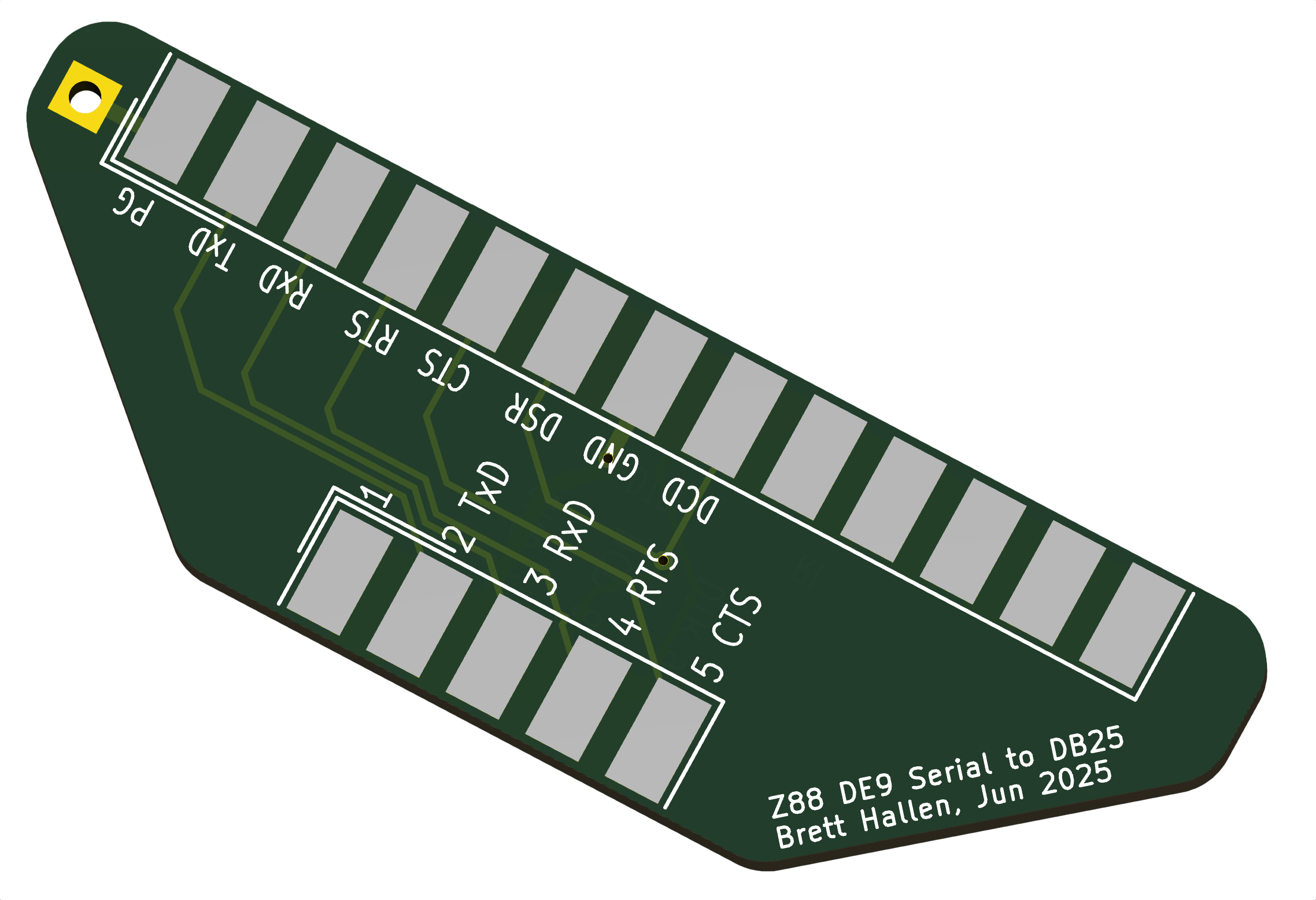

Z88 Serial to DB25, from the project README
From the project README

Z88 Serial to DB25 bill of materials (BOM)

3 components, 3 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Z88_SERIAL
Z88_Serial
J1
1
DB25_SOCKET
DB25_Socket
J2
1
PG
J3

Z88 Serial to DB25 design files

The KiCad project lives in the BrettHallen/Sinclair repository on GitHub; these links point at the commit this page was built from.

Z88 Serial to DB25: common questions

How big is the Z88 Serial to DB25 PCB?

The Z88 Serial to DB25 measures 14 × 42 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Z88 Serial to DB25?

3 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Z88 Serial to DB25 design files?

From the BrettHallen/Sinclair repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Z88 Serial to DB25 design in my own project?

The repository has no license, so all rights stay with BrettHallen. Use it as a reference, and ask the author before reusing the design.
