ZX81 Centronics
BrettHallen·Sinclair·ZX81_Centronics/Kicad/ZX81_Centronics.kicad_pcb
About the ZX81 Centronics PCB
ZX81 Centronics is an open source PCB design by BrettHallen, published on GitHub. It is a 2-layer board measuring 68.8 × 82.6 mm, with 18 components from 14 distinct parts.
Other key parts include the 74LS27, 74LS32, 74LS30 and 8255. By type, the board carries 6 capacitors, 4 ICs, 4 resistors, 1 transistor, 1 connector and 1 switch.
It belongs with the test & measurement designs in this gallery.
From the project
Projects for Sinclair computers (ZX80, ZX81, TS1000, TS1500, TS2068, Spectrum and clones)

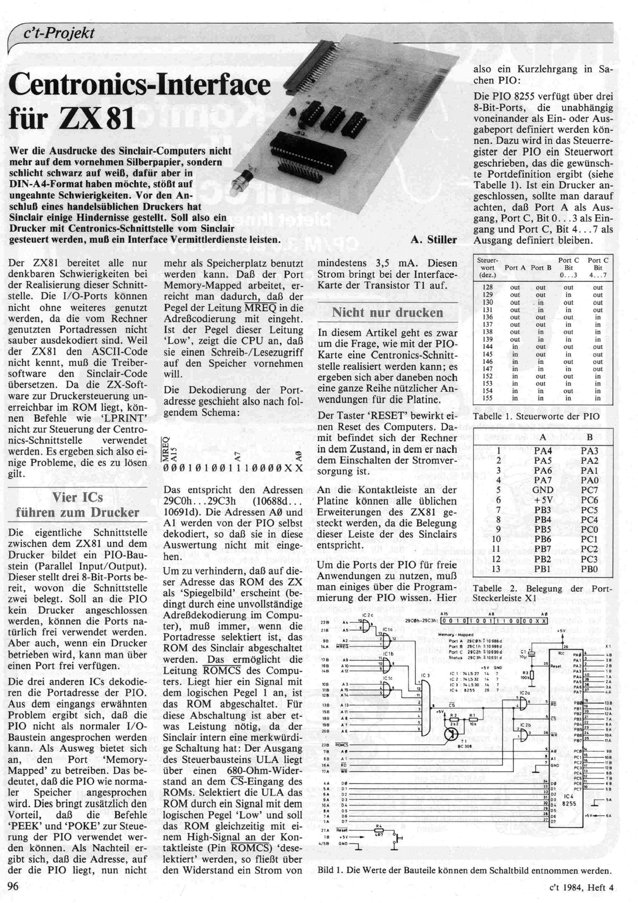

Recreating a DIY centronics interface from German computer magazine c't.

Main components on the ZX81 Centronics
ZX81 Centronics bill of materials (BOM)
18 components, 14 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74LS27 | DIP-14_W7.62mm | U1 |
| 1 | 74LS32 | DIP-14_W7.62mm | U2 |
| 1 | 74LS30 | DIP-14_W7.62mm | U3 |
| 1 | 8255 | DIP-40_W15.24mm | U4 |
| 1 | BC558 | TO-92_Inline | Q1 |
| 1 | CENTRONICS | PinHeader_2x13_P2.54mm_Vertical | J1 |
| 1 | CONN_ZX81 | ZX81_EDGE | BUS1 |
| 1 | SW_Push | SW_PUSH_6mm_H4.3mm | SW1 |
| 2 | 10µF | CP_Radial_D5.0mm_P2.50mm | C1, C5 |
| 4 | 100nF | C_Disc_D4.3mm_W1.9mm_P5.00mm | C2, C3, C4, C6 |
| 1 | 10KΩ | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
| 1 | 2.2KΩ | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2 |
| 1 | 100KΩ | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R3 |
| 1 | 4.7Ω | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R4 |
ZX81 Centronics design files
The KiCad project lives in the BrettHallen/Sinclair repository on GitHub; these links point at the commit this page was built from.
ZX81 Centronics: common questions
How big is the ZX81 Centronics PCB?
The ZX81 Centronics measures 68.8 × 82.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ZX81 Centronics?
18 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the ZX81 Centronics design files?
From the BrettHallen/Sinclair repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the ZX81 Centronics design in my own project?
The repository has no license, so all rights stay with BrettHallen. Use it as a reference, and ask the author before reusing the design.
