Usbsupply
brightcloudy·usbsupply

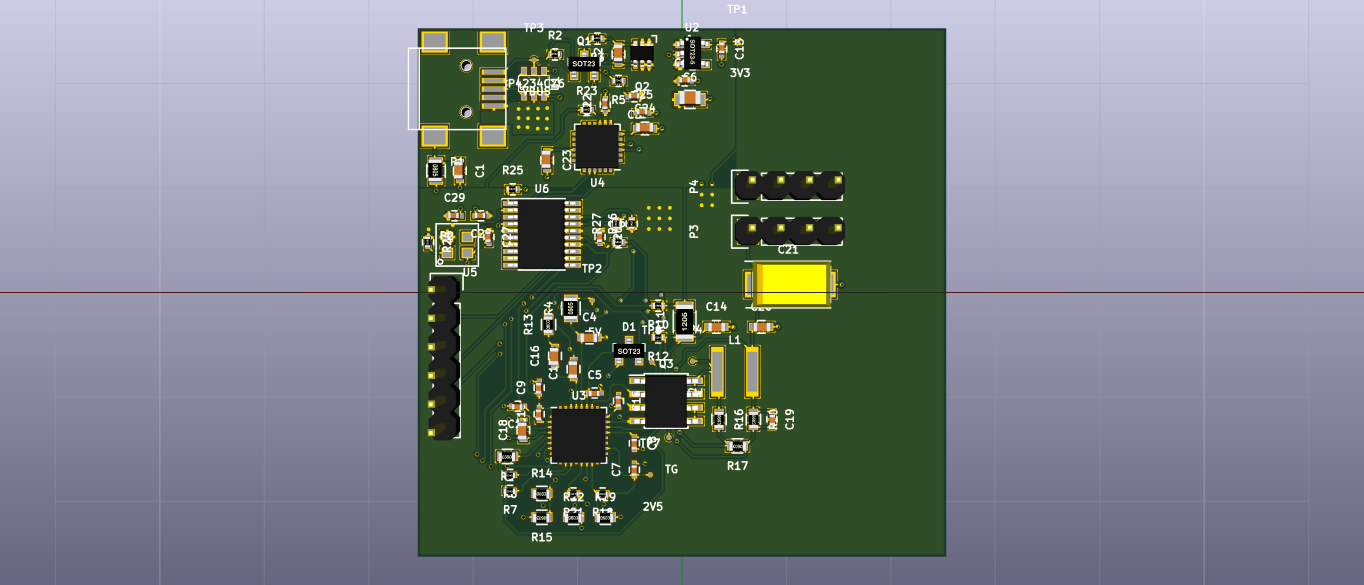

About the Usbsupply PCB
Usbsupply is an open source STM32 PCB design by brightcloudy, published on GitHub. It is a 2-layer board measuring 50 × 50 mm, with 78 components from 46 distinct parts.
Its main chip is the STM32F030F4, from the STM32 family. Other key parts include the IP4234CZ6, MIC5504-3.3, LTC3883EUH-1#PBF, CP2104-F03-GM and OSC. By type, the board carries 29 capacitors, 27 resistors, 7 test points, 6 ICs, 4 connectors and 3 transistors.
It belongs with the power & battery designs in this gallery.
From the project
USB-powered variable voltage and current power supply.

Main components on the Usbsupply
Usbsupply bill of materials (BOM)
78 components, 46 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | IP4234CZ6 | SOT457 | U1 |
| 1 | MIC5504-3.3 | SOT-23-5 | U2 |
| 1 | LTC3883EUH-1#PBF | QFN-32-1EP_5x5mm_Pitch0.5mm | U3 |
| 1 | CP2104-F03-GM | QFN-24-1EP_4x4mm_Pitch0.5mm | U4 |
| 1 | OSC | SIOSC | U5 |
| 1 | STM32F030F4 | TSSOP-20_4.4x6.5mm_Pitch0.65mm | U6 |
| 1 | BSS138 | SOT-23 | Q1 |
| 1 | FDG332PZ | SC-70-6 | Q2 |
| 1 | FDS6982AS | SOIC-8_3.9x4.9mm_Pitch1.27mm | Q3 |
| 1 | USB_OTG | USB_Mini-B | P1 |
| 1 | SWD_CONN | Pin_Header_Straight_1x06 | P2 |
| 1 | VOUT_CONN | Pin_Header_Straight_1x04 | P3 |
| 1 | GND_CONN | Pin_Header_Straight_1x04 | P4 |
| 1 | 3V3 | TP | TP1 |
| 1 | 5V | TP | TP2 |
| 1 | VBUS | TP | TP3 |
| 1 | SW | TP | TP4 |
| 1 | TG | TP | TP5 |
| 1 | BG | TP | TP6 |
| 1 | 2V5 | TP | TP7 |
Show 26 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | BAT54 | SOT-23 | D1 |
| 1 | 10u | XAL5050 | L1 |
| 2 | 4.7n | C_0603 | C1, C18 |
| 3 | 4.7u | C_0603 | C2, C23, C24 |
| 11 | 1u | C_0402 | C3, C5, C7, C8, C10, C12, C13, C19 +3 |
| 3 | 10u | C_0603 | C4, C14, C20 |
| 1 | 22u | C_0805 | C6 |
| 3 | 10n | C_0402 | C9, C11, C29 |
| 3 | 100n | C_0402 | C15, C26, C27 |
| 1 | 110p | C_0603 | C16 |
| 1 | 6.8p | C_0603 | C17 |
| 1 | 180u | TantalC_SizeD_EIA-7343_Reflow | C21 |
| 1 | 1Meg | R_0805 | R1 |
| 2 | 1k | R_0402 | R2, R3 |
| 1 | 3 | R_0805 | R4 |
| 9 | 10k | R_0402 | R5, R6, R7, R8, R18, R21, R23, R24 +1 |
| 1 | 5k | R_0603 | R9 |
| 2 | 100 | R_0402 | R10, R12 |
| 1 | 5m | R_1206 | R11 |
| 1 | 91k | R_0603 | R13 |
| 1 | 20k | R_0603 | R14 |
| 1 | 12.7k | R_0603 | R15 |
| 2 | 3.9k | R_0603 | R16, R20 |
| 1 | 6.8k | R_0603 | R17 |
| 2 | 15.8k | R_0603 | R19, R22 |
| 2 | 3.3k | R_0402 | R26, R27 |
Usbsupply design files
The KiCad project lives in the brightcloudy/usbsupply repository on GitHub; these links point at the commit this page was built from.
- Layoutusbsupply.kicad_pcb
Usbsupply: common questions
What microcontroller does the Usbsupply use?
The Usbsupply is built around the STM32F030F4, from the STM32 family.
How big is the Usbsupply PCB?
The Usbsupply measures 50 × 50 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Usbsupply?
78 components, from 46 distinct parts. The full bill of materials is listed on this page.
Where can I download the Usbsupply design files?
From the brightcloudy/usbsupply repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Usbsupply design in my own project?
The repository has no license, so all rights stay with brightcloudy. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Usbsupply without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
