About the Arduino-Kettle-Temperature-Controller PCB

Arduino-Kettle-Temperature-Controller is an open source AVR/Arduino PCB design by Bubbles-sz, published on GitHub. It is a board, with 12 components from 11 distinct parts.

Its main chip is the Arduino_Nano_v3.x, from the AVR/Arduino family. By type, the board carries 4 connectors, 2 fuses, 2 switches, 2 resistors and 1 module.

It belongs with the sensors and displays & leds designs in this gallery.

From the project

Custom temperature controller for an electric kettle using an Arduino Nano, an NTC thermistor, and a solid state relay.

Custom temperature controller for an electric kettle using an Arduino Nano, an NTC thermistor, and a solid state relay. The system replaces the kettle's stock on/off bi-metal switch with a target-temperature interface, letting you hold water at a specific temperature (e.g. 90°C for pour-over coffee, 80°C for green tea) instead of only being able to boil.

- Target temperature set via rotary encoder (0–100°C), displayed live on an OLED screen - Custom proportional power-curve control (see below) instead of a simple on/off thermostat - Hardware safety systems fully independent of the…

Main components on the Arduino-Kettle-Temperature-Controller

Arduino_Nano_v3.x

Arduino-Kettle-Temperature-Controller bill of materials (BOM)

12 components, 11 distinct parts.

QtyPartRefs
1
Arduino_Nano_v3.x
A1
1
OLED
J1
1
SSR_5V
J2
1
SSR_230V
J3
1
MainInput_230V
J4
2
Fuse
F1, F2
1
RotaryEncoder_Switch
SW1
1
SW_DPST
SW2
1
Thermistor_NTC
TH1
1
R
R1
1
Heater
R2

Arduino-Kettle-Temperature-Controller design files

The KiCad project lives in the Bubbles-sz/Arduino-Kettle-Temperature-Controller repository on GitHub; these links point at the commit this page was built from.

Arduino-Kettle-Temperature-Controller: common questions

What microcontroller does the Arduino-Kettle-Temperature-Controller use?

The Arduino-Kettle-Temperature-Controller is built around the Arduino_Nano_v3.x, from the AVR/Arduino family.

How many components are on the Arduino-Kettle-Temperature-Controller?

12 components, from 11 distinct parts. The full bill of materials is listed on this page.

Where can I download the Arduino-Kettle-Temperature-Controller design files?

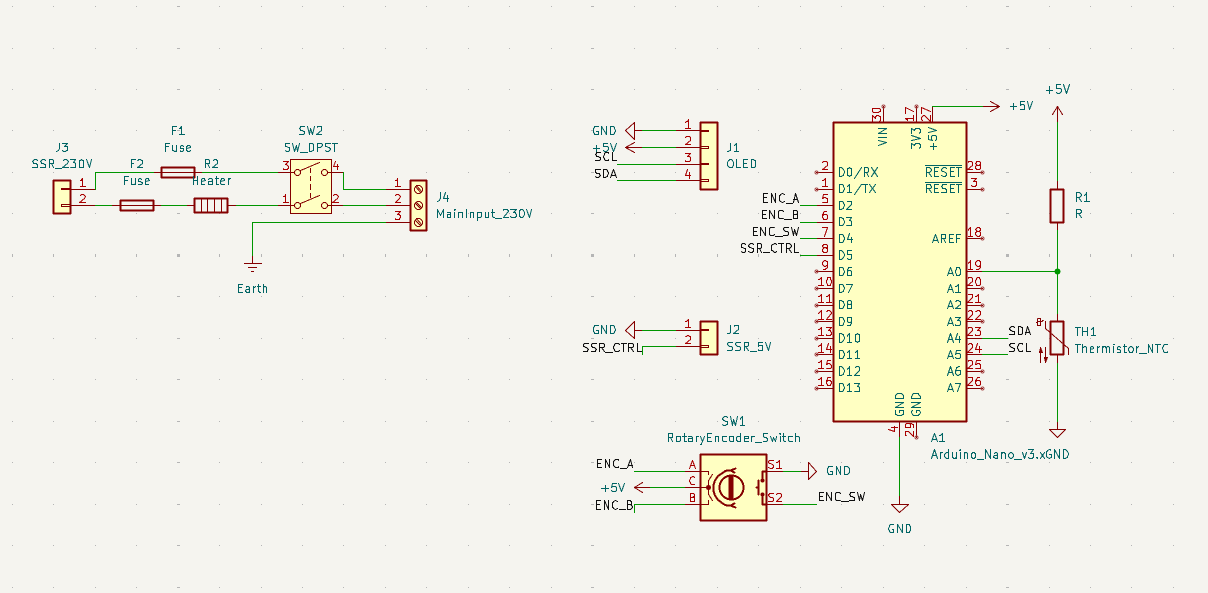

From the Bubbles-sz/Arduino-Kettle-Temperature-Controller repository on GitHub, which has the schematic; the links under Design files point to each one.

Can I use the Arduino-Kettle-Temperature-Controller design in my own project?

The repository has no license, so all rights stay with Bubbles-sz. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Arduino-Kettle-Temperature-Controller without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
