Kicad feather wing template

Bucknalla·kicad-feather-wing-template

Kicad feather wing template PCB layout, top view — open source board by Bucknalla

About the Kicad feather wing template PCB

Kicad feather wing template is an open source PCB design by Bucknalla, published on GitHub under the MIT license. It is a 2-layer board measuring 50.8 × 22.9 mm, with 2 components from 2 distinct parts.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

KiCAD 7 template for Adafruit Feather Wings

This repo is a simple KiCAD template for Adafruit Feather Wings Specification. Use it to quickly get started with the standard layout for Feather Wings to build your own sensor, driver, peripheral, etc. Wings.

This template is designed for use with KiCAD 7.

Firstly either git clone or download the files in this repo.

Next, you will need to either add these files to your KICADUSERTEMPLATEDIR` path or change the path to point at this repo.

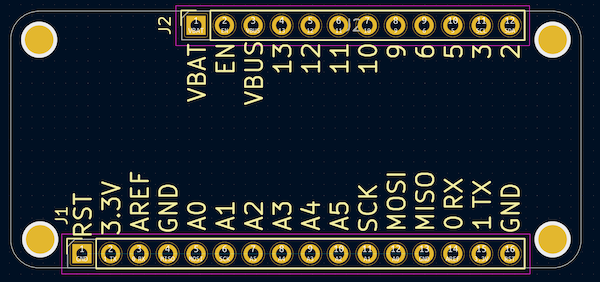

Kicad feather wing template, from the project README
From the project README

Kicad feather wing template bill of materials (BOM)

2 components, 2 distinct parts.

QtyPartRefs
1
Conn_01x16_Female
J1
1
Conn_01x12_Female
J2

Kicad feather wing template design files

The KiCad project lives in the Bucknalla/kicad-feather-wing-template repository on GitHub; these links point at the commit this page was built from.

Kicad feather wing template: common questions

How big is the Kicad feather wing template PCB?

The Kicad feather wing template measures 50.8 × 22.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Kicad feather wing template?

2 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the Kicad feather wing template design files?

From the Bucknalla/kicad-feather-wing-template repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Kicad feather wing template design in my own project?

Yes, under the terms of its MIT license, which Bucknalla chose for the repository.
