ZX-Spectrum-Component-Video PCB layout, top view — open source FPGA board by c0pperdragon

About the ZX-Spectrum-Component-Video PCB

ZX-Spectrum-Component-Video is an open source FPGA PCB design by c0pperdragon, published on GitHub. It is a 2-layer board measuring 50.8 × 33 mm, with 78 components from 24 distinct parts.

Its main chip is the 10M02SCE144, from the FPGA family. Other key parts include the LVC245A and THS7316. By type, the board carries 29 resistors, 28 capacitors, 10 connectors, 4 ICs and 3 inductors.

It belongs with the test & measurement designs in this gallery.

From the project

Component video (YPbPr) output for the ZX Spectrum computer

The ZX Spectrum in its original form produces a radio frequency signal that can be fed into an analog TV. The quality of this signal is very poor, but this can be improved by a simple modification that will make the ZX Spectrum output a composite video signal instead. While this is actually better, it is nowhere near good. To bring the video quality to the next level, this modification will produce a component video signal (YPbPr) that should be as good as an analog signal can possible get. This video signal can be used either directly with a TV that has a YPbPr input, or it can be passed…

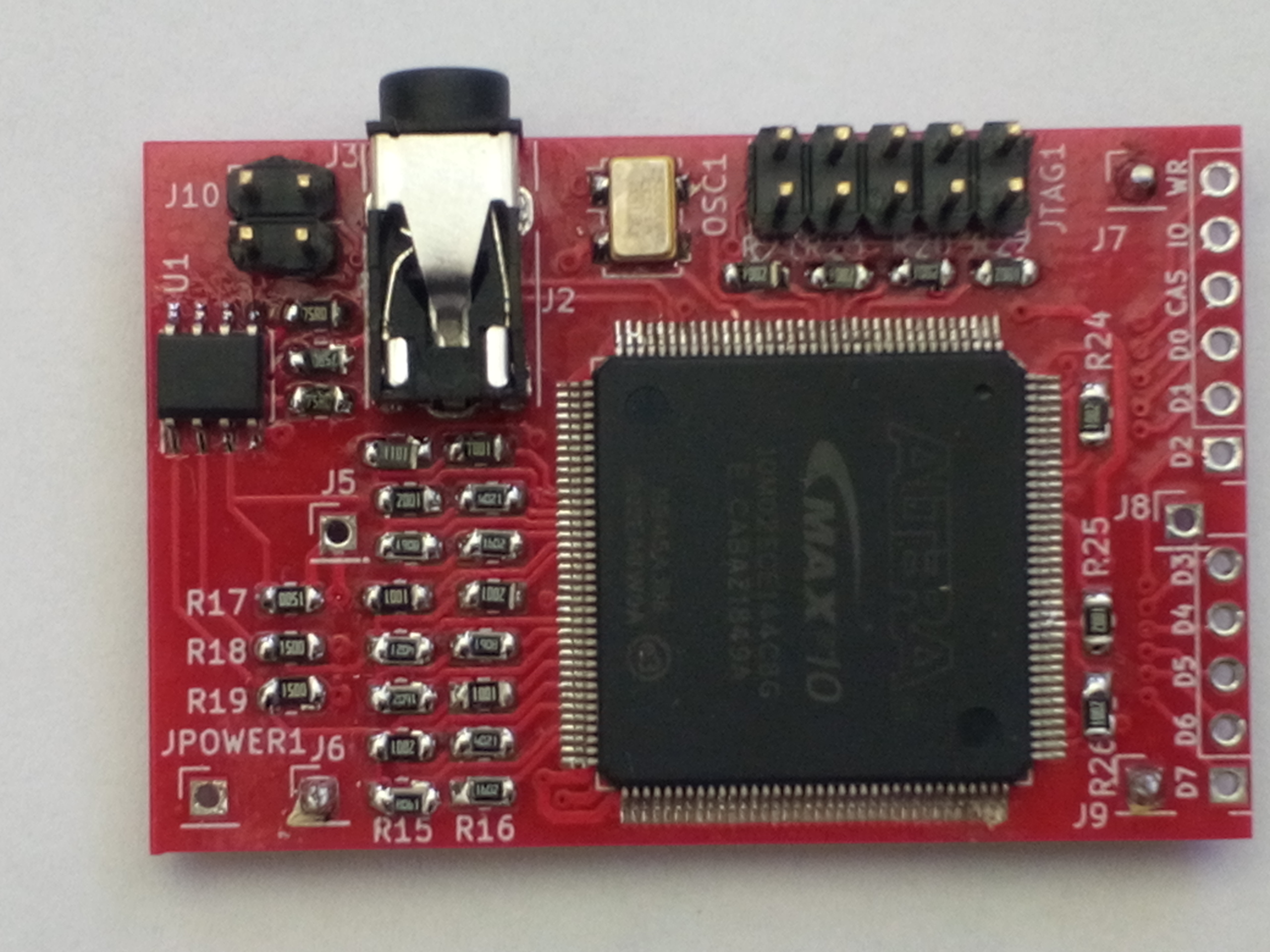

ZX-Spectrum-Component-Video, from the project README
From the project README

Main components on the ZX-Spectrum-Component-Video

LVC245ATHS731610M02SCE144

ZX-Spectrum-Component-Video bill of materials (BOM)

78 components, 24 distinct parts.

QtyPartRefs
2
LVC245A
IC1, IC2
1
THS7316
U1
1
10M02SCE144
U2
1
Conn_01x06_Male
J1
1
AudioJack4_Ground
J2
2
Conn_01x02
J3, J10
5
Conn_01x01_Male
J5, J6, J7, J8, J9
1
Conn_01x05_Male
J11
1
Conn_01x01_Male
JPOWER1
1
CONN_02X05
JTAG1
1
LFSPXO024957
OSC1
1
LM1117IMPX-3.3
REG1
3
10uH
L1, L2, L3
5
10uF
C1, C2, C3, C4, C5
23
100nF
C6, C7, C8, C9, C11, C12, C13, C14 +15
1
1k1
R1
3
1k
R2, R7, R12
3
2k
R3, R8, R13
3
4k
R4, R9, R14
3
8k
R5, R10, R15
Show 4 more
QtyPartRefs
3
16k
R6, R11, R16
3
150
R17, R18, R19
7
10k
R20, R21, R22, R23, R24, R25, R26
3
75
R27, R28, R29

ZX-Spectrum-Component-Video design files

The KiCad project lives in the c0pperdragon/ZX-Spectrum-Component-Video repository on GitHub; these links point at the commit this page was built from.

ZX-Spectrum-Component-Video: common questions

What microcontroller does the ZX-Spectrum-Component-Video use?

The ZX-Spectrum-Component-Video is built around the 10M02SCE144, from the FPGA family.

How big is the ZX-Spectrum-Component-Video PCB?

The ZX-Spectrum-Component-Video measures 50.8 × 33 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ZX-Spectrum-Component-Video?

78 components, from 24 distinct parts. The full bill of materials is listed on this page.

Where can I download the ZX-Spectrum-Component-Video design files?

From the c0pperdragon/ZX-Spectrum-Component-Video repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the ZX-Spectrum-Component-Video design in my own project?

The repository has no license, so all rights stay with c0pperdragon. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the ZX-Spectrum-Component-Video without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
