Feather valve driver

cbs-ntcore·feather_valve_driver·electronics/feather_valve_driver/feather_valve_driver.kicad_pcb

Feather valve driver PCB layout, top view — open source board by cbs-ntcore

About the Feather valve driver PCB

Feather valve driver is an open source PCB design by cbs-ntcore, published on GitHub. It is a 2-layer board measuring 127 × 63.5 mm, with 73 components from 11 distinct parts.

By type, the board carries 32 resistors, 16 transistors, 16 diodes, 7 connectors and 2 capacitors.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

16 Channel Valve driver (designed for 12 volt Lee valves) using a Feather microcontroller

Feather compatible 16 channel valve driver.

This was designed for 12 volt Lee valves.

See errata for current minor electronic issues.

A simple 3d printed baseplate is included that supports the Lee valves:

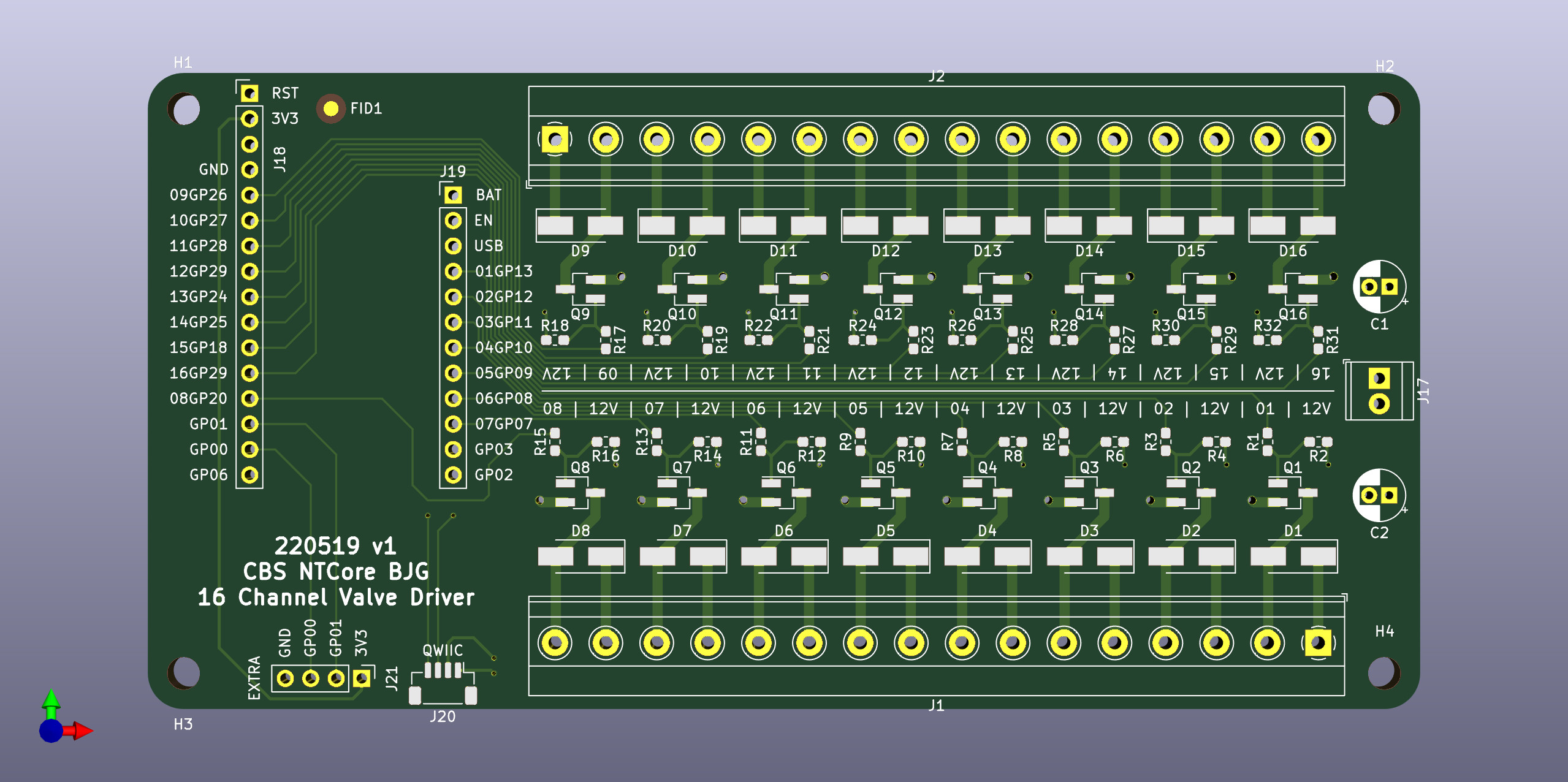

Feather valve driver, from the project README
From the project README

Feather valve driver bill of materials (BOM)

73 components, 11 distinct parts — part numbers from the project's BOM.

QtyPartRefs
16
DMN3731U
Q_NMOS_GSD
Diodes Incorporated
Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8 +8
2
Conn_01x16
J1, J2
1
Conn_01x02
J17
1
Conn_01x16
J18
1
Conn_01x12
J19
1
QWIIC
J20
1
EXTRA
J21
16
SM1
D
SMC Diode Solutions
D1, D2, D3, D4, D5, D6, D7, D8 +8
2
CP
C1, C2
16
100
any/open
R1, R3, R5, R7, R9, R11, R13, R15 +8
16
10k
any/open
R2, R4, R6, R8, R10, R12, R14, R16 +8

Feather valve driver design files

The KiCad project lives in the cbs-ntcore/feather_valve_driver repository on GitHub; these links point at the commit this page was built from.

Feather valve driver: common questions

How big is the Feather valve driver PCB?

The Feather valve driver measures 127 × 63.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Feather valve driver?

73 components, from 11 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Feather valve driver design files?

From the cbs-ntcore/feather_valve_driver repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Feather valve driver design in my own project?

The repository has no license, so all rights stay with cbs-ntcore. Use it as a reference, and ask the author before reusing the design.
