PCB AD5245 Digital Potentiometer

CedarGroveStudios·PCB_AD5245_Digital_Potentiometer·PCB/AD5245_breakout.kicad_pcb

PCB AD5245 Digital Potentiometer layout, top view — open source board by CedarGroveStudios

About the PCB AD5245 Digital Potentiometer

PCB AD5245 Digital Potentiometer is an open source PCB design by CedarGroveStudios, published on GitHub under the MIT license. It is a 2-layer board measuring 17.8 × 15.2 mm, with 10 components from 8 distinct parts.

Other key parts include the AD5245. By type, the board carries 4 resistors, 2 connectors, 2 capacitors, 1 IC and 1 diode.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

A small breakout board and CircuitPython driver for the 10K AD5245 digital potentiometer.

The AD5245 Digital Potentiometer breakout board is a simple implementation of the Analog Devices' I2C, 10K-ohm chip. The potentiometer sports 256 resistance steps and can work with a power source from 2.7v to 5.5v. The pins act similarly to a passive resistive potentiometer, but require that voltages placed on any of the three pins not exceed the power supply voltage or drop below ground potential.

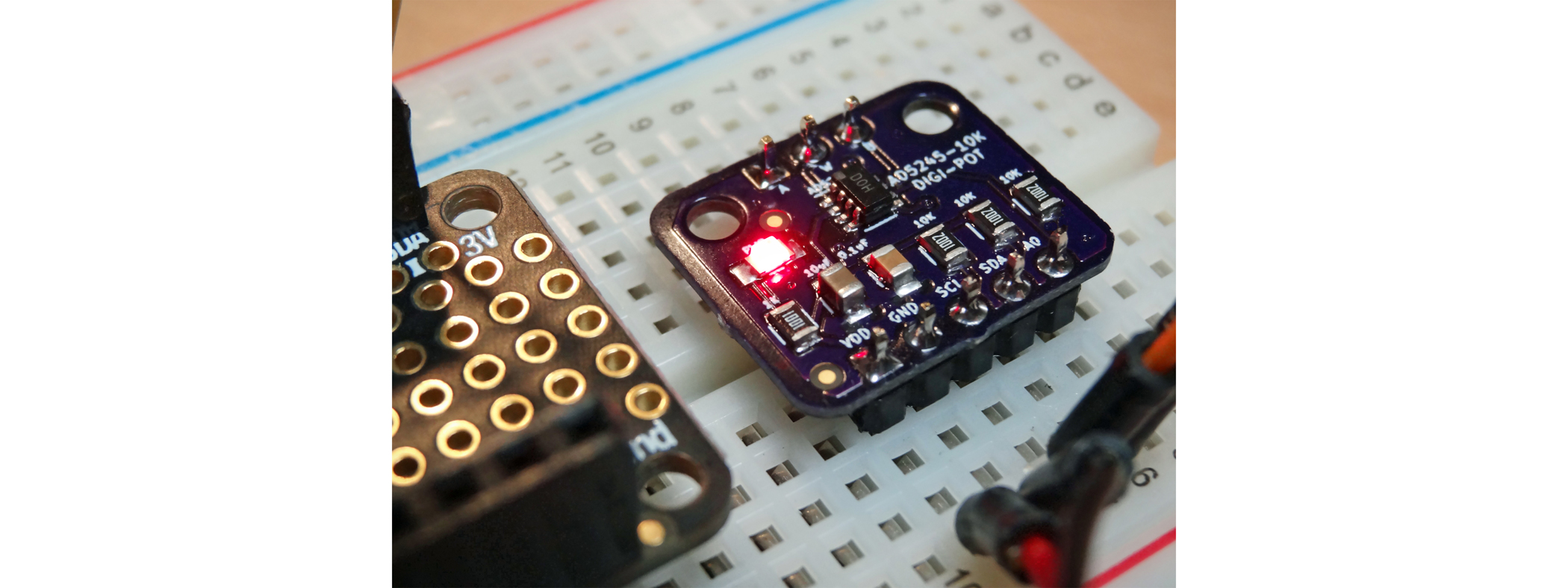

PCB AD5245 Digital Potentiometer, from the project README
From the project README

Main components on the PCB AD5245 Digital Potentiometer

AD5245

PCB AD5245 Digital Potentiometer bill of materials (BOM)

10 components, 8 distinct parts.

QtyPartRefs
1
AD5245
U1
1
BKOUT_PINS
J1
1
POTENTIOMETER
J2
1
PWR
D1
1
0.1uF
C1
1
10uF
C2
3
10K
R1, R2, R3
1
1K
R4

PCB AD5245 Digital Potentiometer design files

The KiCad project lives in the CedarGroveStudios/PCB_AD5245_Digital_Potentiometer repository on GitHub; these links point at the commit this page was built from.

PCB AD5245 Digital Potentiometer: common questions

How big is the PCB AD5245 Digital Potentiometer?

The PCB AD5245 Digital Potentiometer measures 17.8 × 15.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PCB AD5245 Digital Potentiometer?

10 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the PCB AD5245 Digital Potentiometer design files?

From the CedarGroveStudios/PCB_AD5245_Digital_Potentiometer repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the PCB AD5245 Digital Potentiometer design in my own project?

Yes, under the terms of its MIT license, which CedarGroveStudios chose for the repository.
