Pcb alimentation prototypage
About the Pcb alimentation prototypage
Pcb alimentation prototypage is an open source PCB design by cegep-electronique-programmable, published on GitHub. It is a 2-layer board measuring 58.4 × 71.1 mm, with 17 components from 14 distinct parts.
Other key parts include the LM317KCS. By type, the board carries 5 connectors, 4 resistors, 3 capacitors, 2 switches, 2 diodes and 1 IC.
It belongs with the dev boards & breakouts designs in this gallery.
From the project

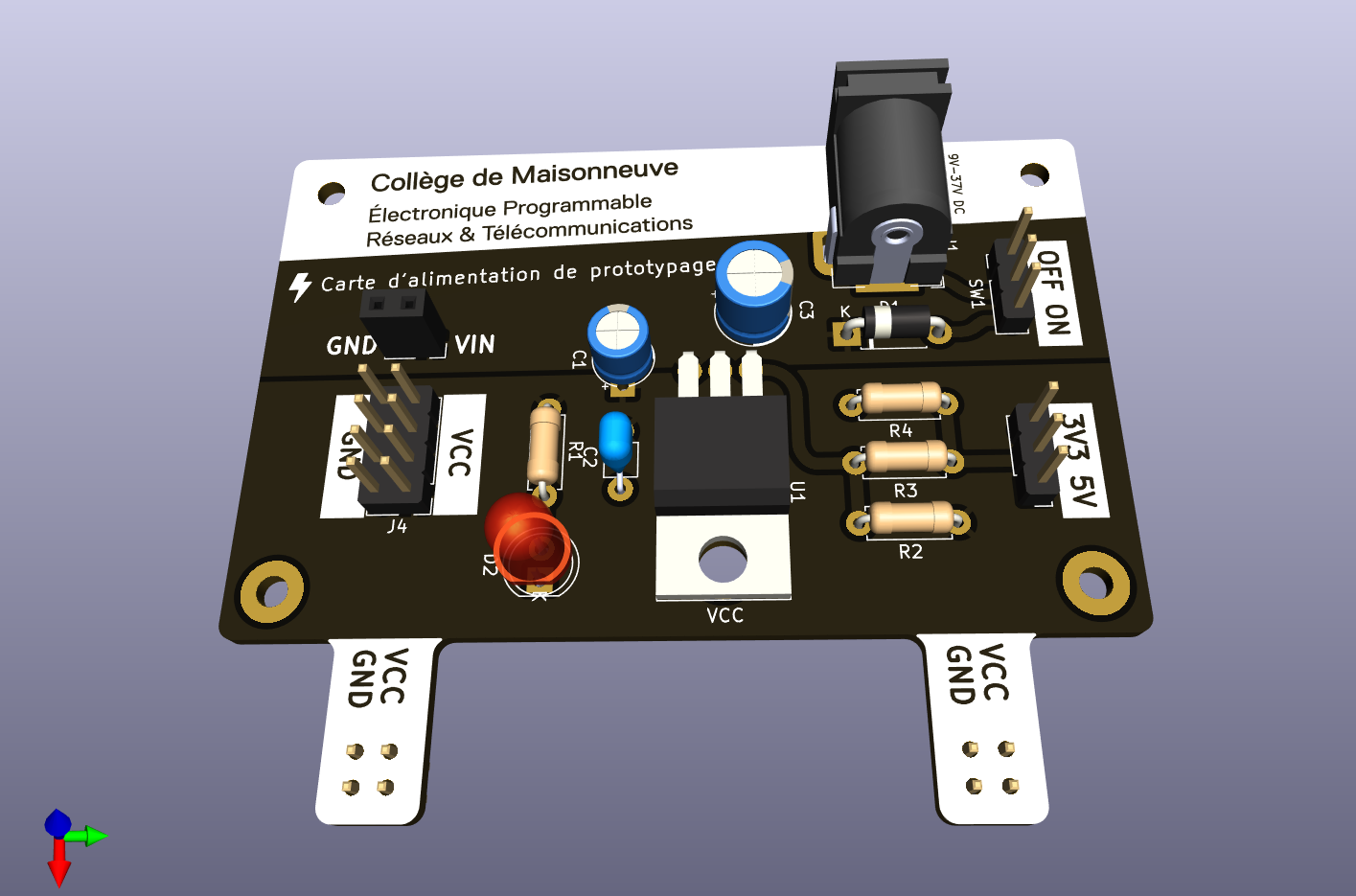

Cette carte génére une tension de 3.3V ou 5V et se branche sur une plaquette de prototypage (breadboard).
Cette carte génére une tension de 3.3V ou 5V et se branche sur une plaquette de prototypage(breadboard).
La plage de tension d'entrée recommandée est 9V à 37V.
Main components on the Pcb alimentation prototypage
Pcb alimentation prototypage bill of materials (BOM)
17 components, 14 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM317KCS LM317_TO-220 | TO-220-3_Horizontal_TabDown_Connected_Oversized | U1 |
| 1 | PJ-002A Barrel_Jack_MountingPin | BarrelJack_Horizontal_PJ-002A_Oversized | J1 |
| 2 | Conn_02x02_Odd_Even | PinHeader_2x02_P2.54mm_Vertical_Oversized | J2, J3 |
| 1 | Conn_02x04_Odd_Even | PinHeader_2x04_P2.54mm_Vertical_Oversized | J4 |
| 1 | Conn_01x02 | PinSocket_1x02_P2.54mm_Vertical_Oversized | J5 |
| 2 | SW_DPDT_x2 | PinHeader_1x03_P2.54mm_Vertical_Oversized | SW1, SW2 |
| 1 | 1N4001RLG 1N4001 | D_DO-41_SOD81_P7.62mm_Horizontal_Oversized | D1 |
| 1 | XLUG12D LED | LED_D5.0mm_Oversized | D2 |
| 1 | EEU-EB1J100SB 10u | CP_Radial_D5.0mm_P5.0mm_EEU-EB1J100SB | C1 |
| 1 | RDER71H104K0K1H03B 0.1u | C_Rect_L4.0mm_W2.5mm_P5.00mm_RDER71H104K0K1H03B | C2 |
| 1 | ES5107M016AE1EA 100u | CP_Radial_D6.3mm_P2.50mm_Oversized | C3 |
| 2 | 330 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal_Oversized | R1, R4 |
| 1 | 240 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal_Oversized | R2 |
| 1 | 390 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal_Oversized | R3 |
Pcb alimentation prototypage design files
The KiCad project lives in the cegep-electronique-programmable/pcb_alimentation_prototypage repository on GitHub; these links point at the commit this page was built from.
- Layoutbreadboard_psu.kicad_pcb
- Schematicbreadboard_psu.kicad_sch
- BOMdocumentation/bom.xlsx
Pcb alimentation prototypage: common questions
How big is the Pcb alimentation prototypage?
The Pcb alimentation prototypage measures 58.4 × 71.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Pcb alimentation prototypage?
17 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Pcb alimentation prototypage design files?
From the cegep-electronique-programmable/pcb_alimentation_prototypage repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Pcb alimentation prototypage design in my own project?
The repository has no license, so all rights stay with cegep-electronique-programmable. Use it as a reference, and ask the author before reusing the design.
