Led Cube BaseControlerV2

cepdnaclk·e19-3yp-3d-led-cube-holographical-display·KiCad Files/Led_Cube_BaseControler/Anode_Controller_V2/Led_Cube_BaseControlerV2.kicad_pcb

Led Cube BaseControlerV2 PCB layout, top view — open source board by cepdnaclk

About the Led Cube BaseControlerV2 PCB

Led Cube BaseControlerV2 is an open source PCB design by cepdnaclk, published on GitHub. It is a 2-layer board measuring 207 × 54 mm, with 80 components from 10 distinct parts.

Other key parts include the 74HC595. By type, the board carries 64 resistors and 8 ICs.

It belongs with the displays & leds designs in this gallery, and the repository also holds 1 earlier revision of it.

From the project

e19-3yp-3d-led-cube-holographical-display

- Experience the future of interactive entertainment with our 3D LED Holographic Display. This innovative device goes beyond traditional displays, offering users the ability to showcase 3D Objects, Engaging Animations and Simple Games. Users can join our collaborative platform and connect, share their creativity, and get inspired by others. Users hold the reins, deciding how to wield the cube's versatile display. - You can get a clear idea using this YouTube video.

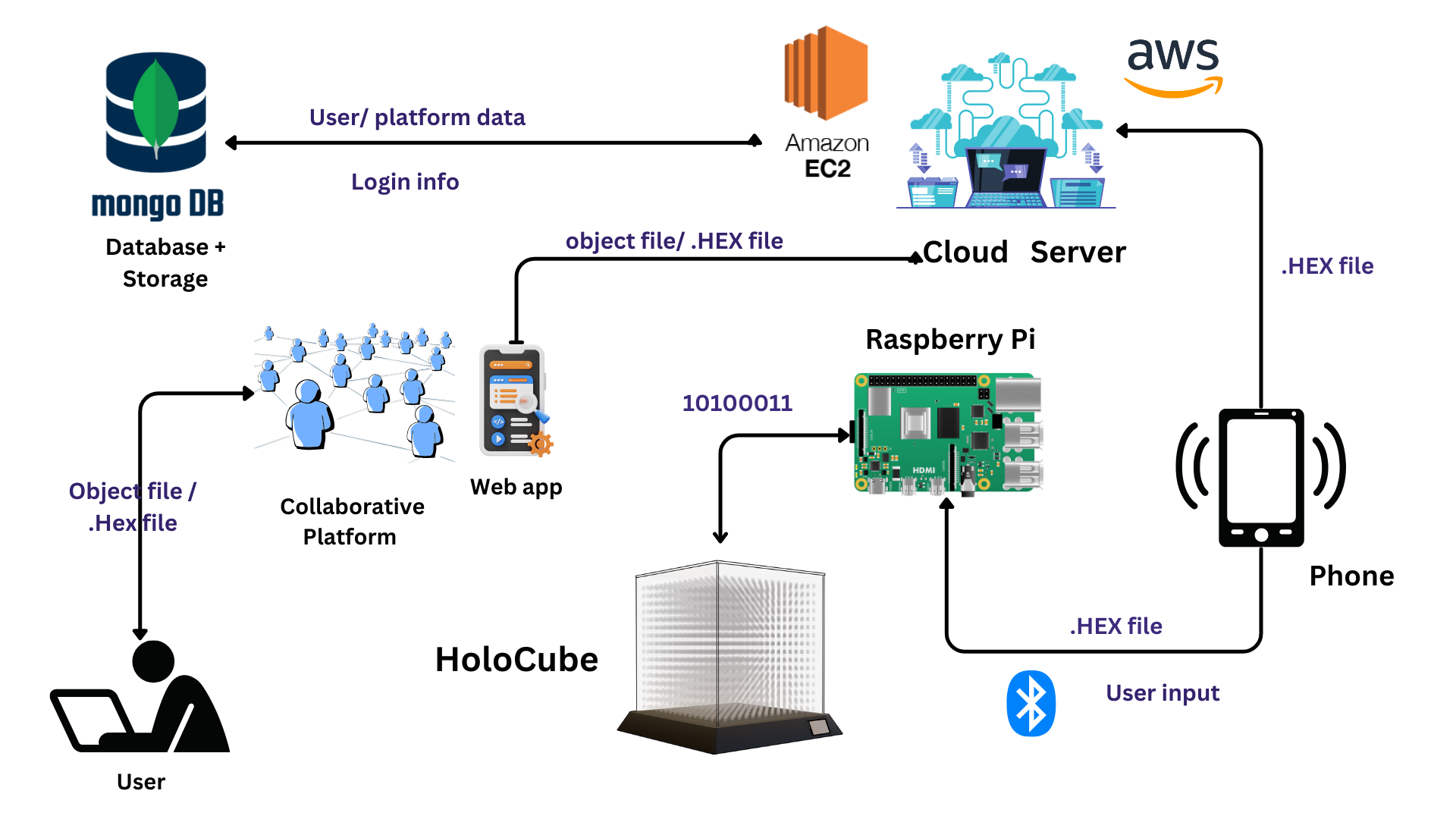

Led Cube BaseControlerV2, from the project README
From the project README

Main components on the Led Cube BaseControlerV2

74HC595

Led Cube BaseControlerV2 bill of materials (BOM)

80 components, 10 distinct parts — part numbers from the project's BOM.

QtyPartRefs
8
74HC595
U1, U2, U3, U4, U5, U6, U7, U8
1
Row_01
Row_1
1
Row_02
Row_2
1
Row_03
Row_3
1
Row_04
Row_4
1
Row_05
Row_5
1
Row_06
Row_6
1
Row_07
Row_7
1
Row_08
Row_8
64
R_Small
R1, R2, R3, R4, R5, R6, R7, R8 +56

Led Cube BaseControlerV2 design files

The KiCad project lives in the cepdnaclk/e19-3yp-3d-led-cube-holographical-display repository on GitHub; these links point at the commit this page was built from.

Led Cube BaseControlerV2: common questions

How big is the Led Cube BaseControlerV2 PCB?

The Led Cube BaseControlerV2 measures 207 × 54 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Led Cube BaseControlerV2?

80 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Led Cube BaseControlerV2 design files?

From the cepdnaclk/e19-3yp-3d-led-cube-holographical-display repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Led Cube BaseControlerV2 design in my own project?

The repository has no license, so all rights stay with cepdnaclk. Use it as a reference, and ask the author before reusing the design.
