Pcb tm1637-0.80 led display module

cfrankb·pcb_tm1637-0.80_led_display_module·revision1/tm1637-0.80.kicad_pcb

Pcb tm1637-0.80 led display module layout, top view — open source board by cfrankb

About the Pcb tm1637-0.80 led display module

Pcb tm1637-0.80 led display module is an open source PCB design by cfrankb, published on GitHub. It is a 2-layer board measuring 90 × 40 mm, with 12 components from 9 distinct parts.

Other key parts include the TM1637 and CA56-12SRWA. By type, the board carries 4 capacitors, 3 resistors, 2 ICs, 2 connectors and 1 diode.

It belongs with the displays & leds designs in this gallery.

From the project

0.80" LED Display Module Pin Compatible with 0.56" LED Display Module (TM1637)

This is a pcb design for the 0.80" LED 7-Segments Display Module. The board is pin compatible with the standard 0.56" LED 7-Segments Display Module

This hardware module is supported by a native C++ driver implementation (linked below), demonstrating a full-stack IoT approach from physical PCB to firmware abstraction.

Reflowed using a controlled hotplate process with lead-free solder paste (SAC305). The screen was hand soldered using a standard soldering iron. The screen can be attached directly or socketed.

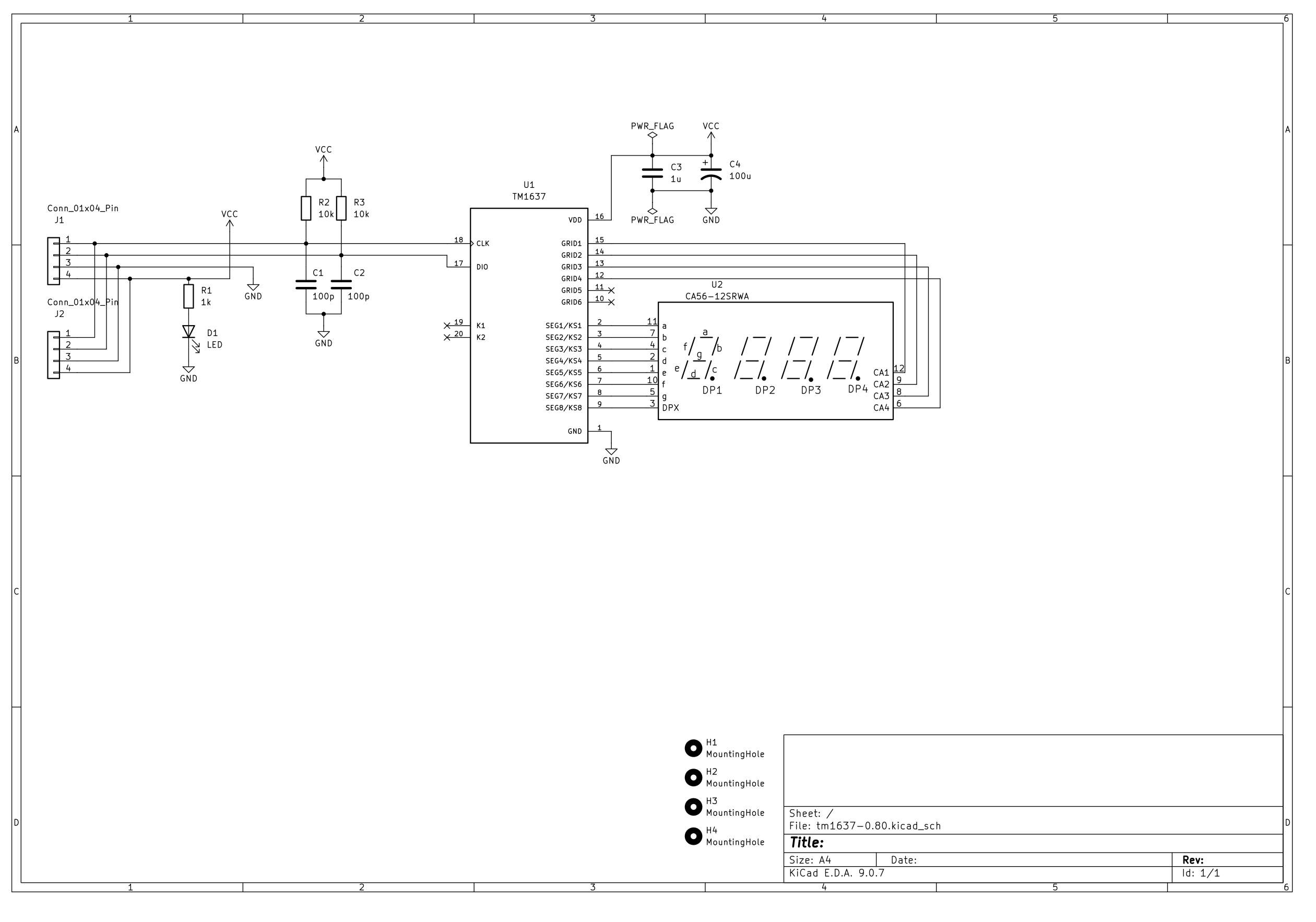

Pcb tm1637-0.80 led display module, from the project README — From the project README

Main components on the Pcb tm1637-0.80 led display module

TM1637 CA56-12SRWA

Pcb tm1637-0.80 led display module bill of materials (BOM)

12 components, 9 distinct parts.

Qty	Part	Footprint	Refs
1	TM1637	SOP-20_7.5x12.8mm_P1.27mm	U1
1	CA56-12SRWA	8041AS	U2
2	Conn_01x04_Pin	PinHeader_1x04_P2.54mm_Vertical	J1, J2
1	LED	LED_0805_2012Metric	D1
2	100p	C_1206_3216Metric	C1, C2
1	1u	C_1206_3216Metric	C3
1	100u	CP_EIA-3216-10_Kemet-I_Pad1.58x1.35mm_HandSolder	C4
1	1k	R_1206_3216Metric	R1
2	10k	R_1206_3216Metric	R2, R3

Pcb tm1637-0.80 led display module design files

The KiCad project lives in the cfrankb/pcb_tm1637-0.80_led_display_module repository on GitHub; these links point at the commit this page was built from.

Layoutrevision1/tm1637-0.80.kicad_pcb
Schematicrevision1/tm1637-0.80.kicad_sch

Pcb tm1637-0.80 led display module: common questions

How big is the Pcb tm1637-0.80 led display module?

The Pcb tm1637-0.80 led display module measures 90 × 40 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pcb tm1637-0.80 led display module?

12 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the Pcb tm1637-0.80 led display module design files?

From the cfrankb/pcb_tm1637-0.80_led_display_module repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Pcb tm1637-0.80 led display module design in my own project?

The repository has no license, so all rights stay with cfrankb. Use it as a reference, and ask the author before reusing the design.
