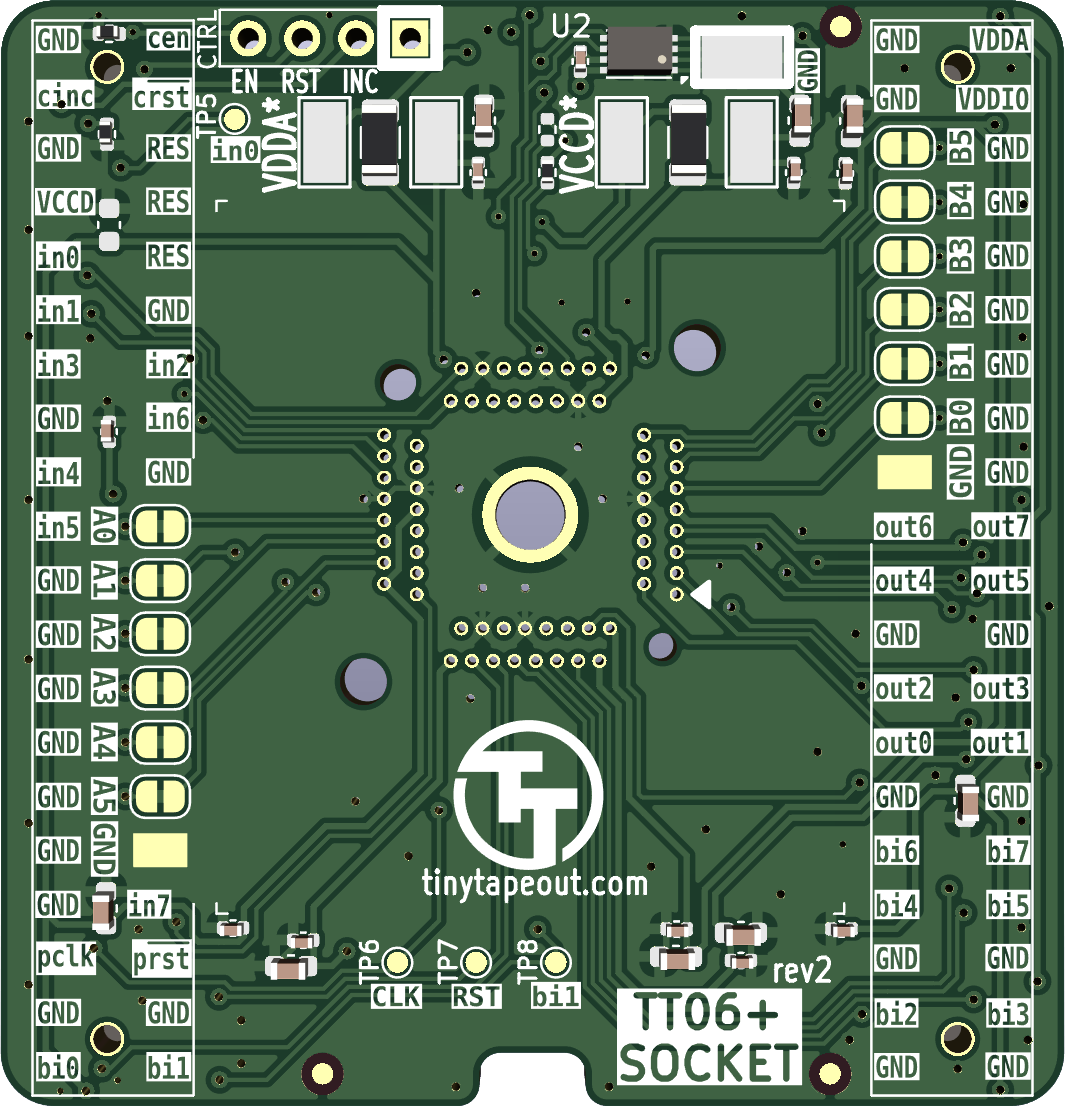

Breakout tt06-qfn socket
About the Breakout tt06-qfn socket
Breakout tt06-qfn socket is an open source PCB design by chipfoundry, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 50 × 52 mm, with 32 components from 8 distinct parts.
Other key parts include the QFN-64BT-0.5-01. By type, the board carries 19 capacitors, 5 test points, 5 resistors, 2 connectors and 1 IC.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
For testing Tiny Tapeout chips not yet soldered to a breakout board. Based on the TT06 QFN breakout board by Pat Deegan.
For testing Tiny Tapeout chips not yet soldered to a breakout board. Based on the TT06 QFN breakout board by Pat Deegan.
To be used with Enplas QFN-64BT-0.5-01 sockets.
Main components on the Breakout tt06-qfn socket
Breakout tt06-qfn socket bill of materials (BOM)
32 components, 8 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | QFN-64BT-0.5-01 Enplas QFN-64BT-0.5-01 | Socket-QFN-64-1EP_9x9mm_P0.5mm_rot90 | U1 |
| 2 | NPTC202KFMS-RC ~ | FH-00148_PinSocket_2x20_P2.54mm | CON1, CON2 |
| 5 | 5019 TestPoint_Alt | TestPoint_Keystone_5019_Minature | TP1, TP2, TP3, TP4, TP9 |
| 9 | CL10A106KP8NNNC 1u | C_0603_1608Metric | C1, C2, C3, C14, C15, C16, C17, C18 +1 |
| 10 | CL05A105KA5NQNC 0.1u | C_0402_1005Metric | C4, C5, C6, C7, C8, C9, C10, C11 +2 |
| 2 | 0402WGF1001TCE 1k | R_0402_1005Metric | R1, R2 |
| 2 | 1206W4F0000T5E 0R | R_1206_3216Metric | R3, R4 |
| 1 | 0402WGF0000TCE 0R | R_0402_1005Metric | R6 |
Breakout tt06-qfn socket design files
The KiCad project lives in the chipfoundry/breakout-pcb-standalone repository on GitHub; these links point at the commit this page was built from.
Breakout tt06-qfn socket: common questions
How big is the Breakout tt06-qfn socket?
The Breakout tt06-qfn socket measures 50 × 52 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Breakout tt06-qfn socket?
32 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Breakout tt06-qfn socket design files?
From the chipfoundry/breakout-pcb-standalone repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Breakout tt06-qfn socket design in my own project?
Yes, under the terms of its Apache-2.0 license, which chipfoundry chose for the repository.
