Rpi mipi dsi display
About the Rpi mipi dsi display PCB
Rpi mipi dsi display is an open source PCB design by chrispyy87, published on GitHub. It is a 4-layer board measuring 60 × 80 mm, with 17 components from 14 distinct parts.
Other key parts include the AMS1117-1.8 and TPS61165DBV. By type, the board carries 5 capacitors, 5 resistors, 3 connectors, 2 ICs, 1 diode and 1 inductor.
It belongs with the displays & leds and dev boards & breakouts designs in this gallery.
From the project

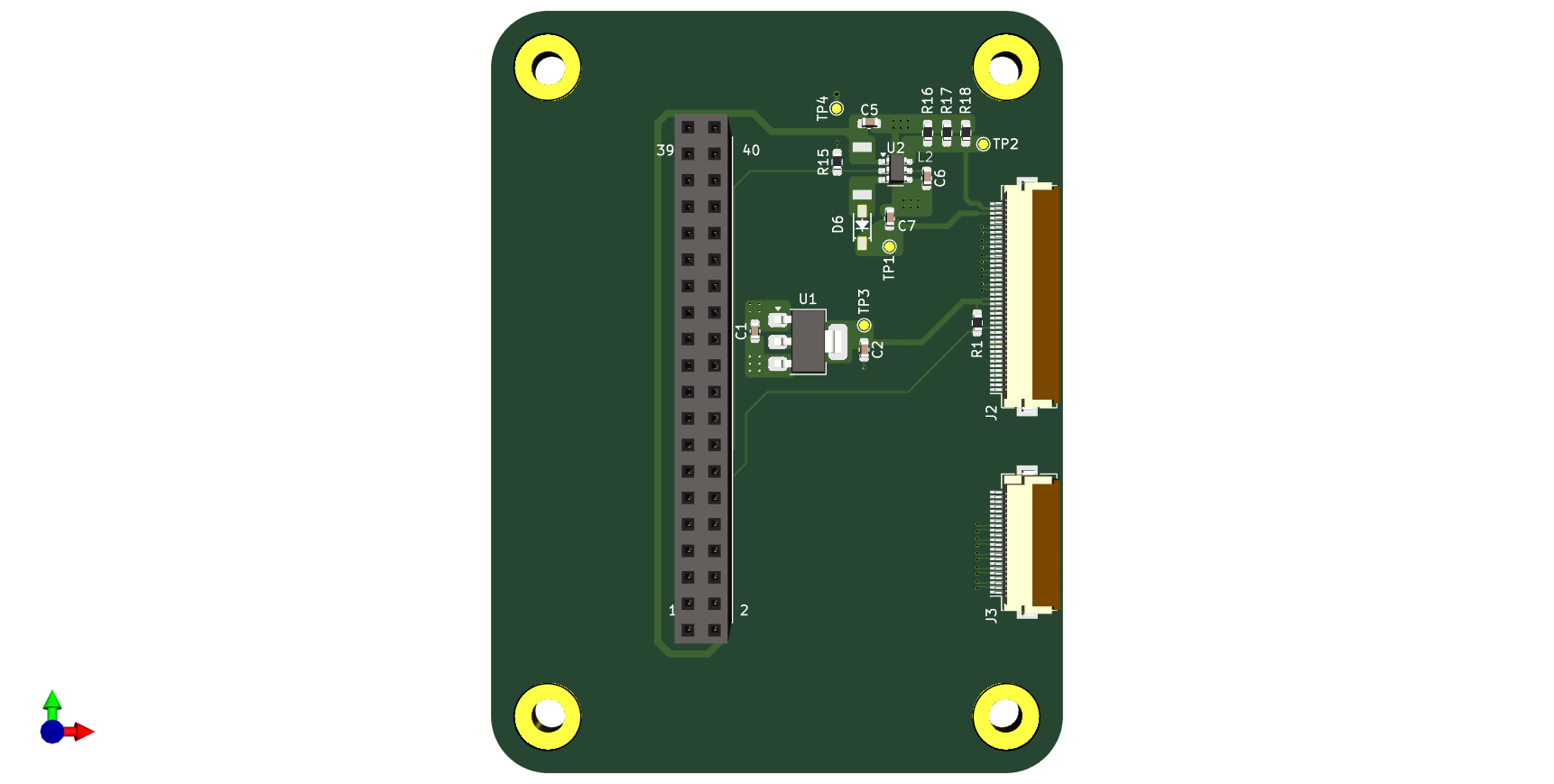

Raspberry CM4/RP4 MIPI DSI display breakout board with drivers
THE DESIGN IS PROVIDED "AS IS" AND THE AUTHOR DISCLAIMS ALL WARRANTIES WITH REGARD TO THIS DESIGN INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY SPECIAL, DIRECT, INDIRECT, OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS DESIGN.
Main components on the Rpi mipi dsi display
Rpi mipi dsi display bill of materials (BOM)
17 components, 14 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AMS1117-1.8 | SOT-223-3_TabPin2 | U1 |
| 1 | TPS61165DBV | SOT-23-6 | U2 |
| 1 | Conn_02x20_Odd_Even | PinSocket_2x20_P2.54mm_Vertical | J1 |
| 1 | Conn_01x40 | Hirose_FH12-40S-0.5SH_1x40-1MP_P0.50mm_Horizontal_PiPad | J2 |
| 1 | Conn_01x22 | Hirose_FH12-22S-0.5SH_1x22-1MP_P0.50mm_Horizontal_PiPad | J3 |
| 1 | MBR0540T1G | SOD-123 | D6 |
| 1 | 10uH 20% | SD53-100-R | L2 |
| 2 | 22UF 22uF | C_0603_1608Metric | C1, C2 |
| 2 | 4.7UF 4.7uF | C_0603_1608Metric | C5, C6 |
| 1 | 1UF 1uF | C_0603_1608Metric | C7 |
| 2 | RC0603FR-072K2L 10k Yageo | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R15 |
| 1 | RC0603FR-072K2L 2 Yageo | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R16 |
| 1 | RC0603FR-072K2L 3.3 Yageo | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R17 |
| 1 | RC0603FR-072K2L 0 Yageo | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R18 |
Rpi mipi dsi display design files
The KiCad project lives in the chrispyy87/rpi-mipi-dsi-display repository on GitHub; these links point at the commit this page was built from.
Rpi mipi dsi display: common questions
How big is the Rpi mipi dsi display PCB?
The Rpi mipi dsi display measures 60 × 80 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Rpi mipi dsi display?
17 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Rpi mipi dsi display design files?
From the chrispyy87/rpi-mipi-dsi-display repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Rpi mipi dsi display design in my own project?
The repository has no license, so all rights stay with chrispyy87. Use it as a reference, and ask the author before reusing the design.
