STM32F103 dev board

christophmeyer·STM32F103_dev_board

STM32F103 dev board layout, top view — open source STM32 board by christophmeyer
Simulate this board

About the STM32F103 dev board

STM32F103 dev board is an open source STM32 PCB design by christophmeyer, published on GitHub under the MIT license. It is a 4-layer board measuring 50 × 57 mm, with 32 components from 19 distinct parts.

Its main chip is the STM32F103C8T6TR, from the STM32 family. Other key parts include the AMS1117-3.3 and USBLC6-2SC6Y. By type, the board carries 13 capacitors, 8 resistors, 3 ICs, 3 connectors, 2 switches and 1 crystal.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Hardware design files for a STM32F103 development board

This repo contains the KiCad hardware design files for a development board for the STM32F103 MCU, which is somewhat similar to the well known blue pill board. The design(er) has greatly benefitted from some of Phil Salmony's designs :pray:.

- STM32F103 MCU - 2x I2C (pull up resistors included) - SPI (22R series termination resistor included) - USB micro - UART - 21 GPIOs - 16MHz crystal - ESD protection - SWD via legged 6-pin plug-of-nails tag-connect connector - BOOT0 pin toggle switch - NRST pin push button - Power LED - LDO voltage regulator

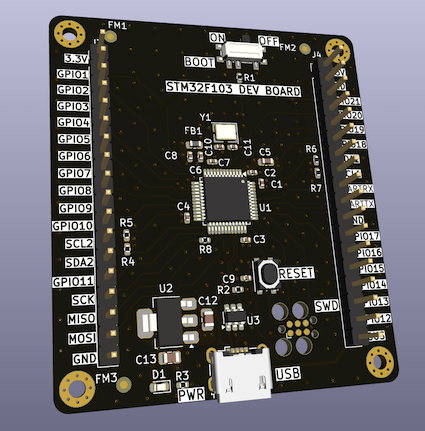

STM32F103 dev board, from the project README
From the project README

Main components on the STM32F103 dev board

STM32F103C8T6TRAMS1117-3.3USBLC6-2SC6Y

STM32F103 dev board bill of materials (BOM)

32 components, 19 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STM32F103C8T6TR
STM32F103C8Tx
STMicroelectronics
U1
1
AMS1117-3.3
UMW
U2
1
USBLC6-2SC6Y
USBLC6-2SC6
STMicroelectronics
U3
1
NX3225GA-16.000M-STD-CRG-2
16MHz
NDK
Y1
1
629105150521
USB_B_Micro
Würth Elektronik
J1
2
Conn_01x18
x
J3, J4
1
434133025816
SW_Push
Würth Elektronik
SW1
1
PCM12SMTR
SW_SPDT
C&K
SW2
1
150060SS75000
LED
Würth Elektronik
D1
1
742792606
120R
Würth Elektronik
FB1
5
04023C104KAT2A
100n
KYOCERA AVX
C1, C2, C3, C4, C9
1
0603YD106KAT2A
10u
KYOCERA AVX
C5
2
04023D105KAT2A
1u
KYOCERA AVX
C6, C8
1
0603YD475MAT2A
10n
KYOCERA AVX
C7
2
04025U150JAT2A
15p
KYOCERA AVX
C10, C11
2
08053D226MAT2A
22u
KYOCERA AVX
C12, C13
1
560112110020
10k
Würth Elektronik
R1
6
560112110095
1k5
Würth Elektronik
R2, R3, R4, R5, R6, R7
1
560112110046
22R
Würth Elektronik
R8

STM32F103 dev board design files

The KiCad project lives in the christophmeyer/STM32F103_dev_board repository on GitHub; these links point at the commit this page was built from.

STM32F103 dev board: common questions

What microcontroller does the STM32F103 dev board use?

The STM32F103 dev board is built around the STM32F103C8T6TR, from the STM32 family.

How big is the STM32F103 dev board?

The STM32F103 dev board measures 50 × 57 mm, has 4 copper layers and is 1.652 mm thick.

How many components are on the STM32F103 dev board?

32 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the STM32F103 dev board design files?

From the christophmeyer/STM32F103_dev_board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the STM32F103 dev board design in my own project?

Yes, under the terms of its MIT license, which christophmeyer chose for the repository.

Can I test firmware for the STM32F103 dev board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
