Teapot

cillian64·teapot·board-r2/teapot.kicad_pcb

Teapot PCB layout, top view — open source STM32 board by cillian64

About the Teapot PCB

Teapot is an open source STM32 PCB design by cillian64, published on GitHub. It is a 2-layer board measuring 23 × 57 mm, with 48 components from 30 distinct parts.

Its main chip is the STM32L052K6T6, from the STM32 family. Other key parts include the TPS79333DBVR, TLV61225, RFM69W, HTU21D and MS5637. By type, the board carries 17 capacitors, 7 ICs, 7 resistors, 5 test points, 5 diodes and 4 connectors.

It belongs with the sensors designs in this gallery.

From the project

ukhasnet node with temperature, light and humidity sensing

Node | Board | Sensors | Status ---- | ----- | ------- | ------ TEA0 | r2 F0 | | USB Gateway, working TEA1 | r2 L0 | | Repeater (needs firmware) TEA2 | r2 L0 | | Repeater (needs firmware) TEA3 | r2 L0 | | Repeater (needs antenna and firmware) TEA4 | r2 L0 | | Repeater (needs antenna and firmware) TEA5 | r3 | THPS | Working TEA6 | r3 | THPS | Working TEA7 | r3 | THPS | Working TEA8 | r3 | THPS | Working TEA9 | r3 | THPS | Working TEAa | r3 | THPSX | Grid-eye has checkerboard problem, otherwise ok TEAb | r3 | THPSX | Working TEAc | r3 | THPSX | Working TEAd | r3 | THPSX | Working TEAe | r3 |…

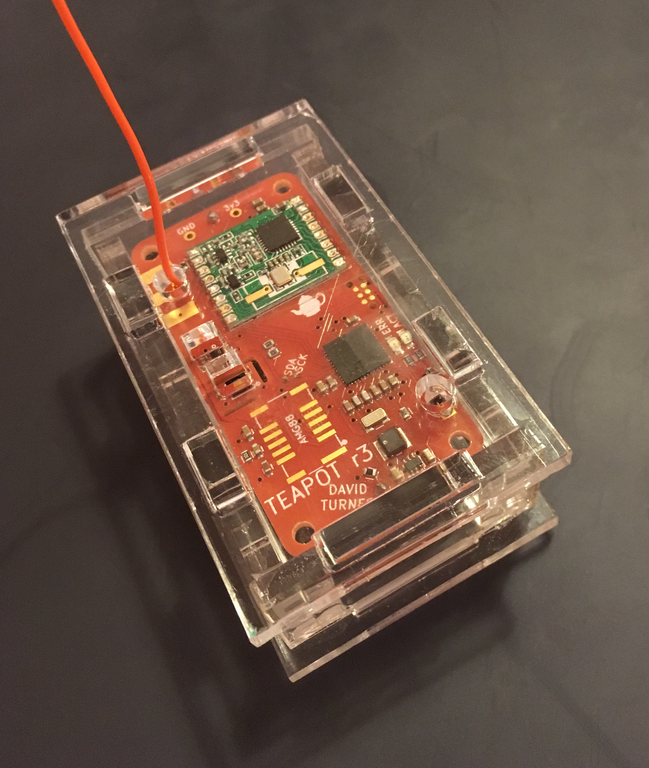

Teapot, from the project README
From the project README

Main components on the Teapot

TPS79333DBVRTLV61225RFM69WSTM32L052K6T6HTU21DMS5637SWD

Teapot bill of materials (BOM)

48 components, 30 distinct parts.

QtyPartRefs
1
TPS79333DBVR
U1
1
TLV61225
U2
1
RFM69W
U4
1
STM32L052K6T6
U5
1
HTU21D
U6
1
MS5637
U7
1
SWD
U8
1
TEPT4400
Q1
1
32.768k
Y1
1
MICROUSB
J1
1
BATT
P1
1
SMA
P2
1
SWD_TC
P3
1
ANT
TP1
1
3v3
TP2
1
GND
TP3
1
SCK
TP4
1
SDA
TP5
2
TVS_small
D1, D3
1
RED
D2
Show 10 more
QtyPartRefs
1
GREEN
D4
1
YELLOW
D5
1
4u7
L1
5
10u
C1, C3, C5, C6, C16
8
100n
C2, C7, C10, C11, C13, C14, C15, C17
1
10n
C4
2
15p
C8, C9
1
1u
C12
4
10k
R1, R3, R4, R7
3
1k
R2, R5, R6

Teapot design files

The KiCad project lives in the cillian64/teapot repository on GitHub; these links point at the commit this page was built from.

Teapot: common questions

What microcontroller does the Teapot use?

The Teapot is built around the STM32L052K6T6, from the STM32 family.

How big is the Teapot PCB?

The Teapot measures 23 × 57 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Teapot?

48 components, from 30 distinct parts. The full bill of materials is listed on this page.

Where can I download the Teapot design files?

From the cillian64/teapot repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Teapot design in my own project?

The repository has no license, so all rights stay with cillian64. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Teapot without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
