Scart mtf ftm
circuitsable·SCARTCouplers·kicad projects/scart-mtf-ftm/scart-mtf-ftm.kicad_pcb
About the Scart mtf ftm PCB
Scart mtf ftm is an open source PCB design by circuitsable, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 49.8 × 21.2 mm, with 2 components from 2 distinct parts.
It belongs with the retro computing designs in this gallery.
From the project
A collection of SCART gender changers & information

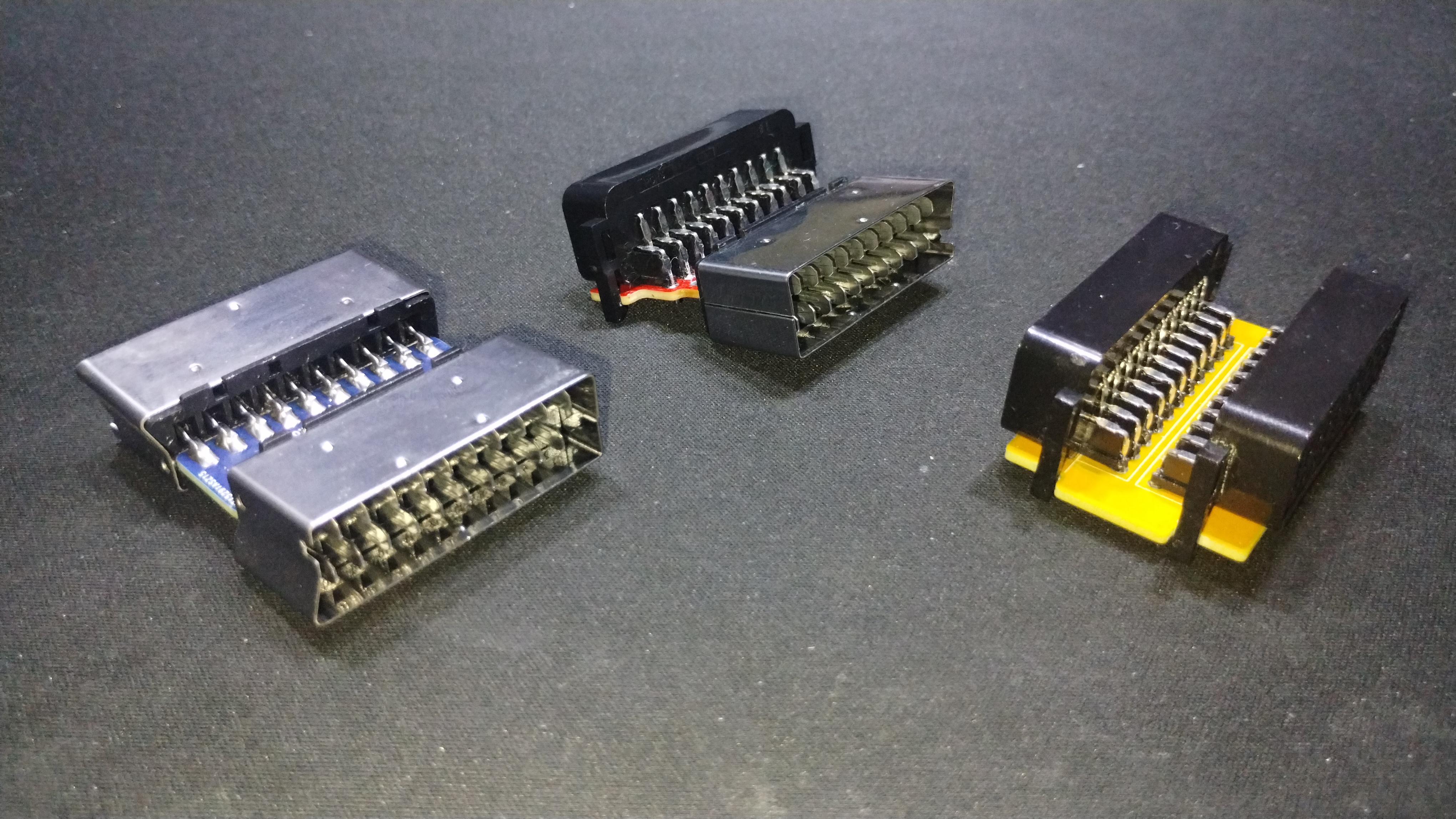

When I was designing a previous project, I had to fully understand the SCART standard for the project to be sucessful, which I found difficult to do. This may be due to my inexperience in dealing with connectors or understanding concepts of how the video signals being sent over the SCART cable work. This repository includes working schematics & PCBs for SCART gender changers/couplers, as well as a very short "cable", which would have helped me greatly when desinging my previous project.

Scart mtf ftm bill of materials (BOM)
2 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SCART-F | KYCON_SCART_K-SCARTX-022_Horizontal | J1 |
| 1 | SCART-M | Male_SCART | J2 |
Scart mtf ftm design files
The KiCad project lives in the circuitsable/SCARTCouplers repository on GitHub; these links point at the commit this page was built from.
Scart mtf ftm: common questions
How big is the Scart mtf ftm PCB?
The Scart mtf ftm measures 49.8 × 21.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Scart mtf ftm?
2 components, from 2 distinct parts. The full bill of materials is listed on this page.
Where can I download the Scart mtf ftm design files?
From the circuitsable/SCARTCouplers repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Scart mtf ftm design in my own project?
Yes, under the terms of its GPL-3.0 license, which circuitsable chose for the repository.
