Rtk datalogger

CMU-Robotics-Club·rtk-datalogger·backplane-board-v1/backplane-board-v1.kicad_pcb

Rtk datalogger PCB layout, top view — open source board by CMU-Robotics-Club

About the Rtk datalogger PCB

Rtk datalogger is an open source PCB design by CMU-Robotics-Club, published on GitHub. It is a 2-layer board measuring 66 × 79.5 mm, with 8 components from 8 distinct parts.

Other key parts include the GPS-RTK-SMA, MOUDLE-SEEEDUINO-XIAO and I2C_OLED. By type, the board carries 3 ICs, 3 connectors, 1 jumper and 1 switch.

From the project

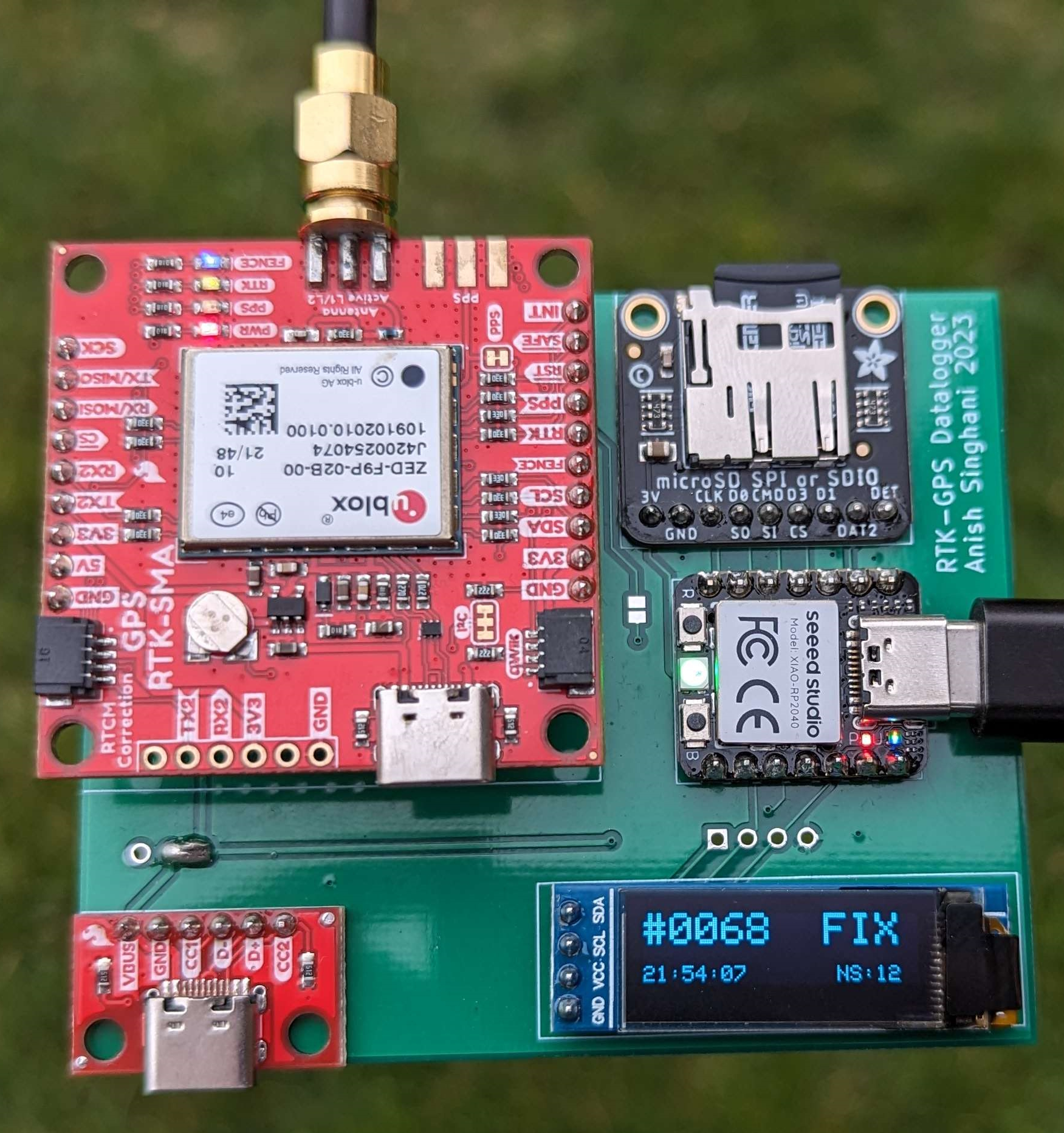

Assembeled hardware: Image showing a module running a preliminary version of v1.0 Arduino firmware.

Rtk datalogger, from the project README
From the project README

Main components on the Rtk datalogger

Rtk datalogger bill of materials (BOM)

8 components, 8 distinct parts.

QtyPartRefs
1
GPS-RTK-SMA
U1
1
MOUDLE-SEEEDUINO-XIAO
U2
1
I2C_OLED
U3
1
USB_B
J1
1
I2C Breakout
J2
1
Micro_SD_Card
J3
1
RST_jump
JP1
1
SW_SPDT
SW1

Rtk datalogger design files

The KiCad project lives in the CMU-Robotics-Club/rtk-datalogger repository on GitHub; these links point at the commit this page was built from.

Rtk datalogger: common questions

How big is the Rtk datalogger PCB?

The Rtk datalogger measures 66 × 79.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Rtk datalogger?

8 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the Rtk datalogger design files?

From the CMU-Robotics-Club/rtk-datalogger repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Rtk datalogger design in my own project?

The repository has no license, so all rights stay with CMU-Robotics-Club. Use it as a reference, and ask the author before reusing the design.
