Amiga Ashcom 512Kb
CoconutSmarts·Amiga_Ashcom_512Kb
About the Amiga Ashcom 512Kb PCB

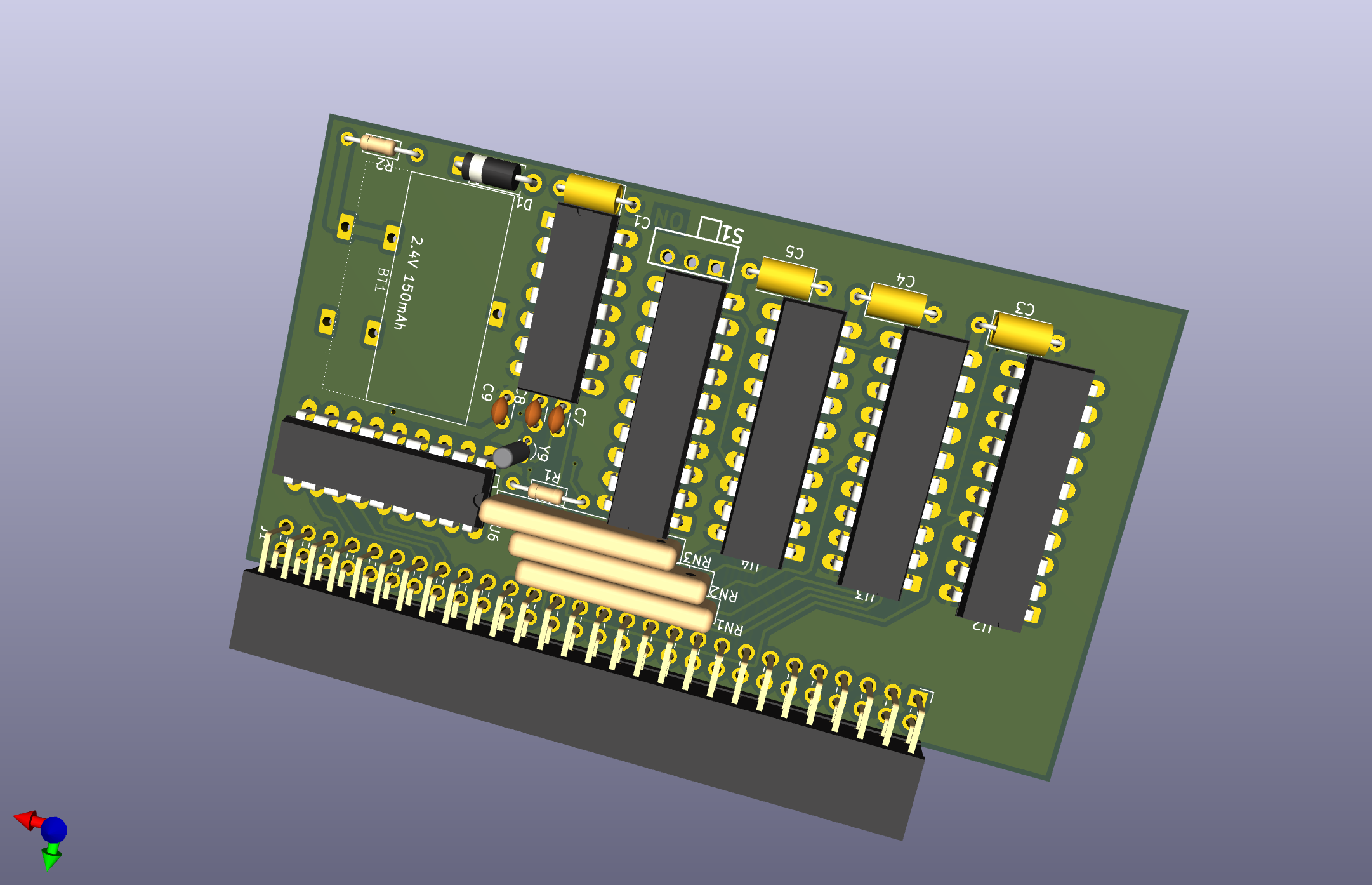

Amiga Ashcom 512Kb is an open source PCB design by CoconutSmarts, published on GitHub. It is a 2-layer board measuring 88 × 48 mm, with 23 components from 14 distinct parts.
Other key parts include the 74LS00N, 256kb x 4 and M6242B. By type, the board carries 7 capacitors, 6 ICs, 5 resistors, 1 crystal, 1 connector and 1 battery holder.
It belongs with the retro computing designs in this gallery.
From the project
Reproduction of the PCB for an Ashcom 512kb memory expansion, for Amiga 500s
In summary this seems a stripped down design when compared to the A501. Does this have any nagative implications?
Using Amiga Test Kit, the memory and RTC tested successfully:-
The PCB seems designed for a 2.4V or a 3.6V NiMh rechargeable battery. R2 is sized to trickle charge a 2.4v cell at around 4mA. R2 should be changed accordingly if a 3.6v cell is used. By my calcs that would be around 200ohms, but I have not tested this configuration.

Main components on the Amiga Ashcom 512Kb
Amiga Ashcom 512Kb bill of materials (BOM)
23 components, 14 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74LS00N | DIP-14_W7.62mm_LongPads | U1 |
| 4 | 256kb x 4 | DIP-20_W7.62mm_LongPads | U2, U3, U4, U5 |
| 1 | M6242B | DIP-18_W7.62mm_LongPads | U6 |
| 1 | 32768Hz | Crystal_C26-LF_D2.1mm_L6.5mm_Vertical | Y9 |
| 1 | PinSocket_2x28_P2.54mm_Horizontal | PinSocket_2x28_P2.54mm_Horizontal | J1 |
| 1 | 2.4V 150mAh | Varta_2.4v_150mAh | BT1 |
| 1 | Enable/Disable | 780565 | S1 |
| 1 | 1N914 | D_A-405_P7.62mm_Horizontal | D1 |
| 4 | 100nF | C_Axial_L5.1mm_D3.1mm_P7.50mm_Horizontal | C1, C3, C4, C5 |
| 2 | 22pF | C_Disc_D3.0mm_W1.6mm_P2.50mm | C7, C8 |
| 1 | 100nF | C_Disc_D3.0mm_W1.6mm_P2.50mm | C9 |
| 1 | 47 | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R1 |
| 1 | 510 | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R2 |
| 3 | 22 | R_Array_SIP8 | RN1, RN2, RN3 |
Amiga Ashcom 512Kb design files
The KiCad project lives in the CoconutSmarts/Amiga_Ashcom_512Kb repository on GitHub; these links point at the commit this page was built from.
- LayoutAmiga_Ashcom_512Kb.kicad_pcb
- SchematicAmiga_Ashcom_512Kb.kicad_sch
Amiga Ashcom 512Kb: common questions
How big is the Amiga Ashcom 512Kb PCB?
The Amiga Ashcom 512Kb measures 88 × 48 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Amiga Ashcom 512Kb?
23 components, from 14 distinct parts. The full bill of materials is listed on this page.
Where can I download the Amiga Ashcom 512Kb design files?
From the CoconutSmarts/Amiga_Ashcom_512Kb repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Amiga Ashcom 512Kb design in my own project?
The repository has no license, so all rights stay with CoconutSmarts. Use it as a reference, and ask the author before reusing the design.
