About the STM32F401RE-Dev-Board-Design

STM32F401RE-Dev-Board-Design is an open source STM32 PCB design by colonelblacc, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 35 components from 16 distinct parts.

Its main chip is the STM32F401RETx, from the STM32 family. Other key parts include the AMS1117-3.3. By type, the board carries 14 capacitors, 8 resistors, 7 connectors, 2 ICs, 1 crystal and 1 switch.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Custom two-layer STM32F401RE development board designed in KiCad, featuring USB-C, SWD debugging, UART, SPI, I²C, GPIO expansion, regulated 3.3 V power, external crystal and user-interface circuitry.

This repository covers the complete design lifecycle:

The schematic is divided into functional blocks:

- STM32F401 — Central MCU with all peripheral nets routed - Power Supply — AMS1117-3.3 LDO with bulk and decoupling capacitors - USB-C Connector — With 5.1k CC1/CC2 pull-down resistors (R7, R8) - Crystal — 24 MHz with 22pF load capacitors C12, C13 - Header Breakouts — UART, SPI, I2C, GPIO, SWD - Mounting Holes — H1–H4 (M2.5, 2.7mm diameter)

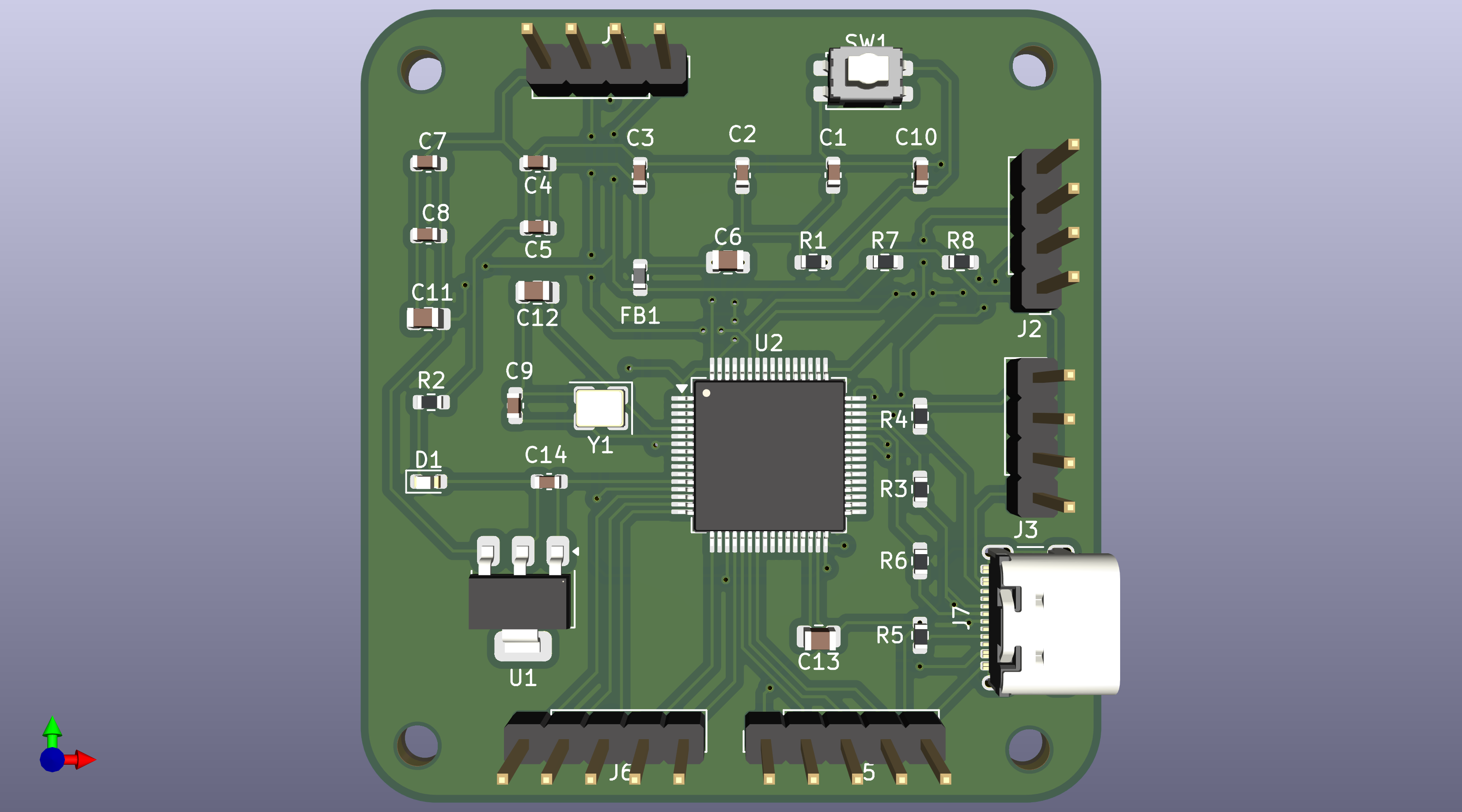

STM32F401RE-Dev-Board-Design, from the project README
From the project README

Main components on the STM32F401RE-Dev-Board-Design

AMS1117-3.3STM32F401RETx

STM32F401RE-Dev-Board-Design bill of materials (BOM)

35 components, 16 distinct parts.

QtyPartRefs
1
AMS1117-3.3
U1
1
STM32F401RETx
U2
1
Crystal_GND24
Y1
1
USB_C_Receptacle_USB2.0_14P
J1
3
Conn_01x04_Pin
J2, J3, J4
2
Conn_01x05_Pin
J5, J6
1
USB_C_Receptacle_USB2.0_16P
J7
1
SW_MEC_5E
SW1
1
LED
D1
1
FerriteBead
FB1
10
C
C1, C2, C3, C4, C5, C7, C8, C9 +2
3
C
C6, C11, C12
1
22uf
C13
4
R
R1, R2, R7, R8
2
22k
R3, R6
2
5k
R4, R5

STM32F401RE-Dev-Board-Design design files

The KiCad project lives in the colonelblacc/STM32F401RE-Dev-Board-Design repository on GitHub; these links point at the commit this page was built from.

STM32F401RE-Dev-Board-Design: common questions

What microcontroller does the STM32F401RE-Dev-Board-Design use?

The STM32F401RE-Dev-Board-Design is built around the STM32F401RETx, from the STM32 family.

How big is the STM32F401RE-Dev-Board-Design?

The STM32F401RE-Dev-Board-Design measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the STM32F401RE-Dev-Board-Design?

35 components, from 16 distinct parts. The full bill of materials is listed on this page.

Where can I download the STM32F401RE-Dev-Board-Design design files?

From the colonelblacc/STM32F401RE-Dev-Board-Design repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the STM32F401RE-Dev-Board-Design design in my own project?

The repository has no license, so all rights stay with colonelblacc. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the STM32F401RE-Dev-Board-Design without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
