Capitulo136

About the Capitulo136 PCB

Capitulo136 is an open source RP2040/RP2350 PCB design by ComputadorasySensores, published on GitHub. It is a 2-layer board measuring 125 × 87 mm, with 23 components from 11 distinct parts.

Its main chip is the 90147-1120, from the RP2040/RP2350 family. By type, the board carries 7 connectors, 6 diodes, 3 transistors, 3 relays, 3 resistors and 1 switch.

From the project

Archivos de diseño para placa de desarrollo Pico Carrier Relay

Un placa de desarrollo para Raspberry Pi Pico/W con 3 canales de relé (relay) incorporados controlado mediante GPIOs y borneras para una fácil conexión a circuitos externos de continua y alterna. También expone todos los GPIO de la placa para una fácil conexión de dispositivos adicionales y un pulsador de reset.

Todos los archivos de diseño en Kicad se encuentran publicados junto a un código de ejemplo en MicroPython

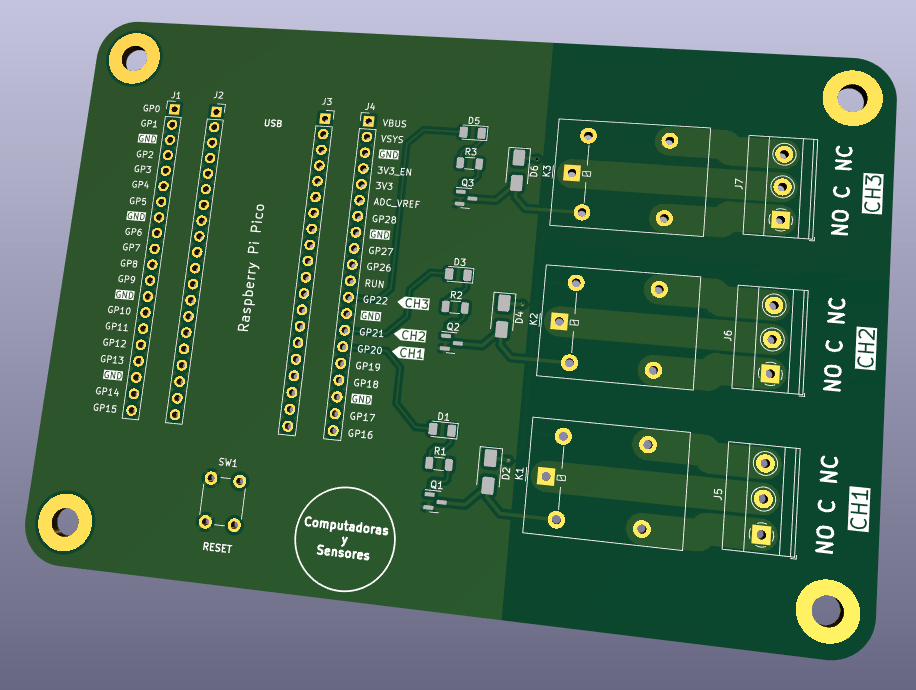

Capitulo136, from the project README — From the project README

Capitulo136 bill of materials (BOM)

23 components, 11 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
3	MMBT3904 Onsemi	SOT-23	Q1, Q2, Q3
1	22-28-4200 PicoHeader1 Molex	PinHeader_1x20_P2.54mm_Vertical	J1
1	90147-1120 Pico1-2 Molex	PinSocket_1x20_P2.54mm_Vertical	J2
1	90147-1120 Pico2-2 Molex	PinSocket_1x20_P2.54mm_Vertical	J3
1	22-28-4200 PicoHeader2 Molex	PinHeader_1x20_P2.54mm_Vertical	J4
3	1715035 Screw_Terminal_01x03 Phoenix contact	TerminalBlock_Phoenix_MKDS-1,5-3_1x03_P5.00mm_Horizontal	J5, J6, J7
3	SRD-05VDC-SL-C G5LE-1 Songle Relay	Relay_SPDT_Omron-G5LE-1	K1, K2, K3
1	B3F-1000 RESET Omron	SW_PUSH_6mm	SW1
3	598-8210-102F RED LED Dialight	LED_1206_3216Metric	D1, D3, D5
3	NRVA4007T3G US1A Onsemi	D_SMA	D2, D4, D6
3	ERJ-8GEYJ111V 110 Panasonic	R_1206_3216Metric	R1, R2, R3

Capitulo136 design files

The KiCad project lives in the ComputadorasySensores/Capitulo136 repository on GitHub; these links point at the commit this page was built from.

Capitulo136: common questions

What microcontroller does the Capitulo136 use?

The Capitulo136 is built around the 90147-1120, from the RP2040/RP2350 family.

How big is the Capitulo136 PCB?

The Capitulo136 measures 125 × 87 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Capitulo136?

23 components, from 11 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Capitulo136 design files?

From the ComputadorasySensores/Capitulo136 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Capitulo136 design in my own project?

The repository has no license, so all rights stay with ComputadorasySensores. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Capitulo136 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
