CFL EE FeatherDebugShield
connectedfuturelabs·CFL_EE_FeatherDebugShield
About the CFL EE FeatherDebugShield PCB
CFL EE FeatherDebugShield is an open source PCB design by connectedfuturelabs, published on GitHub under the MIT license. It is a 2-layer board measuring 33 × 61 mm, with 9 components from 6 distinct parts.
It belongs with the dev boards & breakouts and usb & debug tools designs in this gallery.
From the project

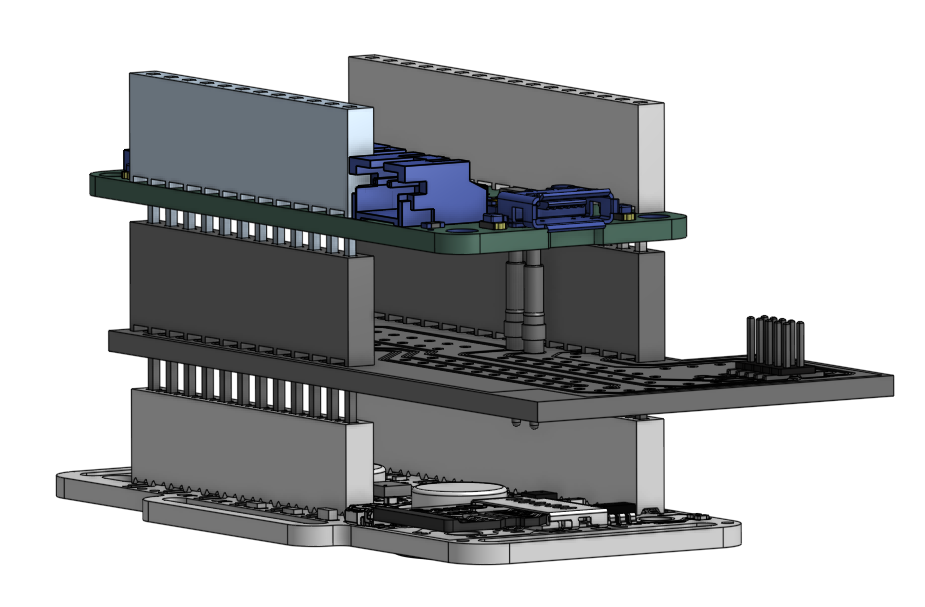

Shield to connect JTAG pins on Feather M0

CFL EE FeatherDebugShield bill of materials (BOM)
9 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SSQ-112-03-G-S Conn_01x12 Samtec Inc. | PinSocket_1x12_P2.54mm_Vertical | J1 |
| 1 | SSQ-116-03-G-S Conn_01x16 Samtec Inc. | PinSocket_1x16_P2.54mm_Vertical | J2 |
| 4 | CONN_JUMPER_NO | CONN_SLDR_BRDG_NO | J3, J7, J8, J9 |
| 1 | FTSH-105-01-F-DV-K-P Conn_ARM_JTAG_SWD_10 Samtec Inc. | SAMTEC_FTSH-105-01-F-DV-K-TR | J4 |
| 1 | 0929-7-15-20-75-14-11-0 SWDIO Mill-Max Manufacturing Corp. | CONN_PROBE_SPRING_01X01_C150H75 | J5 |
| 1 | 0929-7-15-20-75-14-11-0 SWCLK Mill-Max Manufacturing Corp. | CONN_PROBE_SPRING_01X01_C150H75 | J6 |
CFL EE FeatherDebugShield design files
The KiCad project lives in the connectedfuturelabs/CFL_EE_FeatherDebugShield repository on GitHub; these links point at the commit this page was built from.
CFL EE FeatherDebugShield: common questions
How big is the CFL EE FeatherDebugShield PCB?
The CFL EE FeatherDebugShield measures 33 × 61 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the CFL EE FeatherDebugShield?
9 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the CFL EE FeatherDebugShield design files?
From the connectedfuturelabs/CFL_EE_FeatherDebugShield repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the CFL EE FeatherDebugShield design in my own project?
Yes, under the terms of its MIT license, which connectedfuturelabs chose for the repository.
