McNulty Pad PCB layout, top view — open source board by cookiemonsternz

About the McNulty Pad PCB

McNulty Pad is an open source PCB design by cookiemonsternz, published on GitHub. It is a 2-layer board measuring 440 × 137.3 mm, with 417 components from 97 distinct parts.

Other key parts include the IRLML6344TRPBF. By type, the board carries 200 diodes, 102 resistors, 101 switches, 10 modules, 3 connectors and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

Lens Board is a custom mechanical keyboard, with a modified 1800's layout, more physical input methods (sliders, scrolly wheel, touchscreen) and an inbuilt, physical audio visualizer.

Lens Board is a custom mechanical keyboard, with a modified 1800's layout, more physical input methods (sliders, scrolly wheel, touchscreen) and an inbuilt, physical audio visualizer.

My inspiration for this project was my Hackpad project, which I had a ton of fun designing and building. I wanted to make another thing to do with keyboards, and this was a great opportunity to do so.

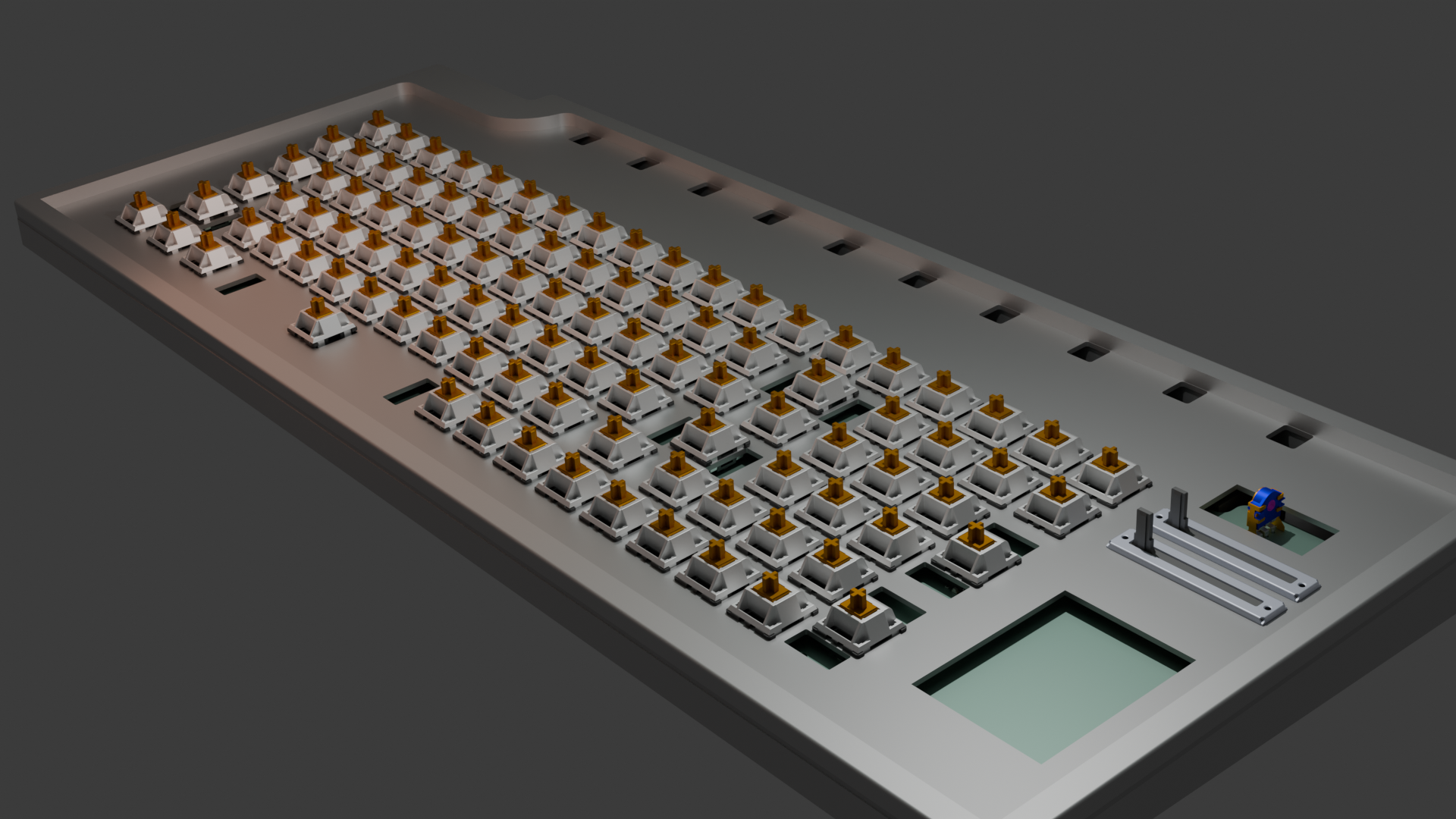

McNulty Pad, from the project README
From the project README

Main components on the McNulty Pad

IRLML6344TRPBF

McNulty Pad bill of materials (BOM)

417 components, 97 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
IRLML6344TRPBF
U7
10
Motor_Servo
M1, M2, M3, M4, M5, M6, M7, M8 +2
1
CONN_02X30_ODD_EVEN
Conn_02x30_Odd_Even
J1
2
Touchscreen
J3, J4
1
Esc
SW1
1
F1
SW2
1
F2
SW3
1
F3
SW4
1
F4
SW5
1
F5
SW6
1
F6
SW7
1
F7
SW8
1
F8
SW9
1
F9
SW10
1
F10
SW11
1
F11
SW12
1
F12
SW13
1
DEL
SW14
1
HOME
SW15
1
END
SW16
Show 77 more
QtyPartRefs
1
PGUP
SW17
1
PGDN
SW18
1
INS
SW19
1
TILDE
SW20
2
1
SW21, SW85
2
2
SW22, SW86
2
3
SW23, SW87
2
4
SW24, SW68
2
5
SW25, SW69
2
6
SW26, SW70
2
7
SW27, SW52
2
8
SW28, SW53
2
9
SW29, SW54
2
0
SW30, SW98
2
-
SW31, SW37
1
=
SW32
1
BKSP
SW33
1
Num
SW34
2
/
SW35, SW82
1
*
SW36
1
Tab
SW38
1
Q
SW39
1
W
SW40
1
E
SW41
1
R
SW42
1
T
SW43
1
Y
SW44
1
U
SW45
1
I
SW46
1
O
SW47
1
P
SW48
1
[
SW49
1
]
SW50
1
\
SW51
1
Caps
SW55
1
A
SW56
1
S
SW57
1
D
SW58
1
F
SW59
1
G
SW60
1
H
SW61
1
J
SW62
1
K
SW63
1
L
SW64
1
;
SW65
1
"
SW66
1
Enter
SW67
1
+
SW71
1
Shift
SW72
1
Z
SW73
1
X
SW74
1
C
SW75
1
V
SW76
1
B
SW77
1
N
SW78
1
M
SW79
1
<
SW80
1
>
SW81
1
Shift
SW83
1
Up
SW84
1
Ctrl
SW88
1
Win
SW89
1
Alt
SW90
1
Space
SW91
1
Fn
SW92
1
M1
SW93
1
M2
SW94
1
Left
SW95
1
Down
SW96
1
Right
SW97
1
.
SW99
1
Enter
SW100
1
RotaryEncoder
SW101
100
D
D1, D2, D3, D4, D5, D6, D7, D8 +92
100
LED
D101, D102, D103, D104, D105, D106, D107, D108 +92
100
680R
R9, R10, R11, R12, R13, R14, R15, R16 +92
2
PTA3043-2010CIB103
R109, R110

McNulty Pad design files

The KiCad project lives in the cookiemonsternz/lensboard repository on GitHub; these links point at the commit this page was built from.

McNulty Pad: common questions

How big is the McNulty Pad PCB?

The McNulty Pad measures 440 × 137.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the McNulty Pad?

417 components, from 97 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the McNulty Pad design files?

From the cookiemonsternz/lensboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the McNulty Pad design in my own project?

The repository has no license, so all rights stay with cookiemonsternz. Use it as a reference, and ask the author before reusing the design.
