PMW3610-breakout
About the PMW3610-breakout
PMW3610-breakout is an open source PCB design by cormoran, published on GitHub under the CC-BY-4.0 license. It is a 2-layer board measuring 17.6 × 16.6 mm, with 12 components from 11 distinct parts.
Other key parts include the PMW3610 and TLV70018_SOT23-5. By type, the board carries 7 capacitors, 2 ICs, 1 connector, 1 jumper and 1 resistor.
It belongs with the keyboards, power & battery and dev boards & breakouts designs in this gallery.
From the project

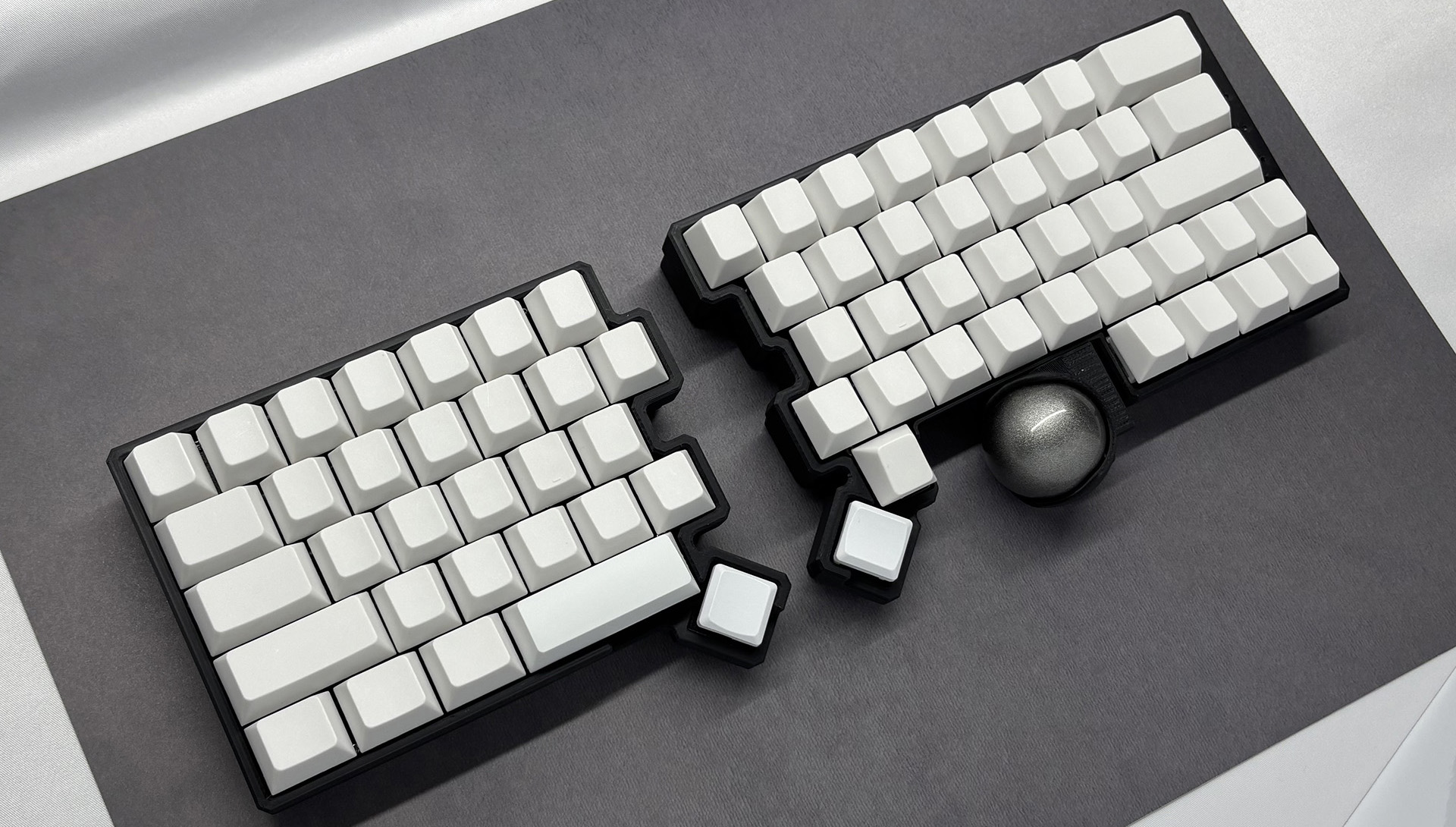

- Controller: RP2040-zero (QMK) and XAIO NRF52840 plus (ZMK) - ZMK firmware is not available yet, since XAIO NRF52840 plus cannot be used in Japan for now. - Layout: US and JIS - Switch: Cherry MX compatible, hotswappable - LED x 12 (left 4, right 4 + 4 indicator) - PMW3610 low p
- Controller: RP2040-zero (QMK) and XAIO NRF52840 plus (ZMK) - ZMK firmware is not available yet, since XAIO NRF52840 plus cannot be used in Japan for now. - Layout: US and JIS - Switch: Cherry MX compatible, hotswappable - LED x 12 (left 4, right 4 + 4 indicator) - PMW3610 low power trackball sensor - Optional features by soldering additional parts - Lipo battery support for XAIO - AAA battery (1.2V NiMH or 1.5V) support
Main components on the PMW3610-breakout
PMW3610-breakout bill of materials (BOM)
12 components, 11 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PMW3610 | PMW3610DM-SUDU 16Pin | U1 |
| 1 | TLV70018_SOT23-5 | SOT-23-5 | U2 |
| 1 | Conn_01x06_Pin | JUSHUO-AFH34-S06FIA-1H | J1 |
| 1 | Jumper_2_Bridged | SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm | JP1 |
| 2 | 100nF | C_0603_1608Metric | C1, C8 |
| 1 | 10uF X7R | C_0603_1608Metric | C3 |
| 1 | 10nF X7R | C_0603_1608Metric | C4 |
| 1 | 100nF X7R | C_0603_1608Metric | C5 |
| 1 | 10nF | C_0603_1608Metric | C6 |
| 1 | 10uF | C_0603_1608Metric | C7 |
| 1 | 51kΩ | R_0603_1608Metric | R1 |
PMW3610-breakout design files
The KiCad project lives in the cormoran/dya-keyboard repository on GitHub; these links point at the commit this page was built from.
PMW3610-breakout: common questions
How big is the PMW3610-breakout?
The PMW3610-breakout measures 17.6 × 16.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PMW3610-breakout?
12 components, from 11 distinct parts. The full bill of materials is listed on this page.
Where can I download the PMW3610-breakout design files?
From the cormoran/dya-keyboard repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the PMW3610-breakout design in my own project?
Yes, under the terms of its CC-BY-4.0 license, which cormoran chose for the repository.
