About the Gear80-M PCB
Gear80-M is an open source STM32 PCB design by cosmosalad, published on GitHub. It is a 4-layer board measuring 100.8 × 21.8 mm, with 181 components from 11 distinct parts.
Its main chip is the STM32F072C8Tx, from the STM32 family. Other key parts include the XC6206P332MR. By type, the board carries 81 diodes, 10 capacitors, 3 resistors, 2 ICs, 1 connector and 1 fuse.
It belongs with the keyboards and robotics & motion designs in this gallery.

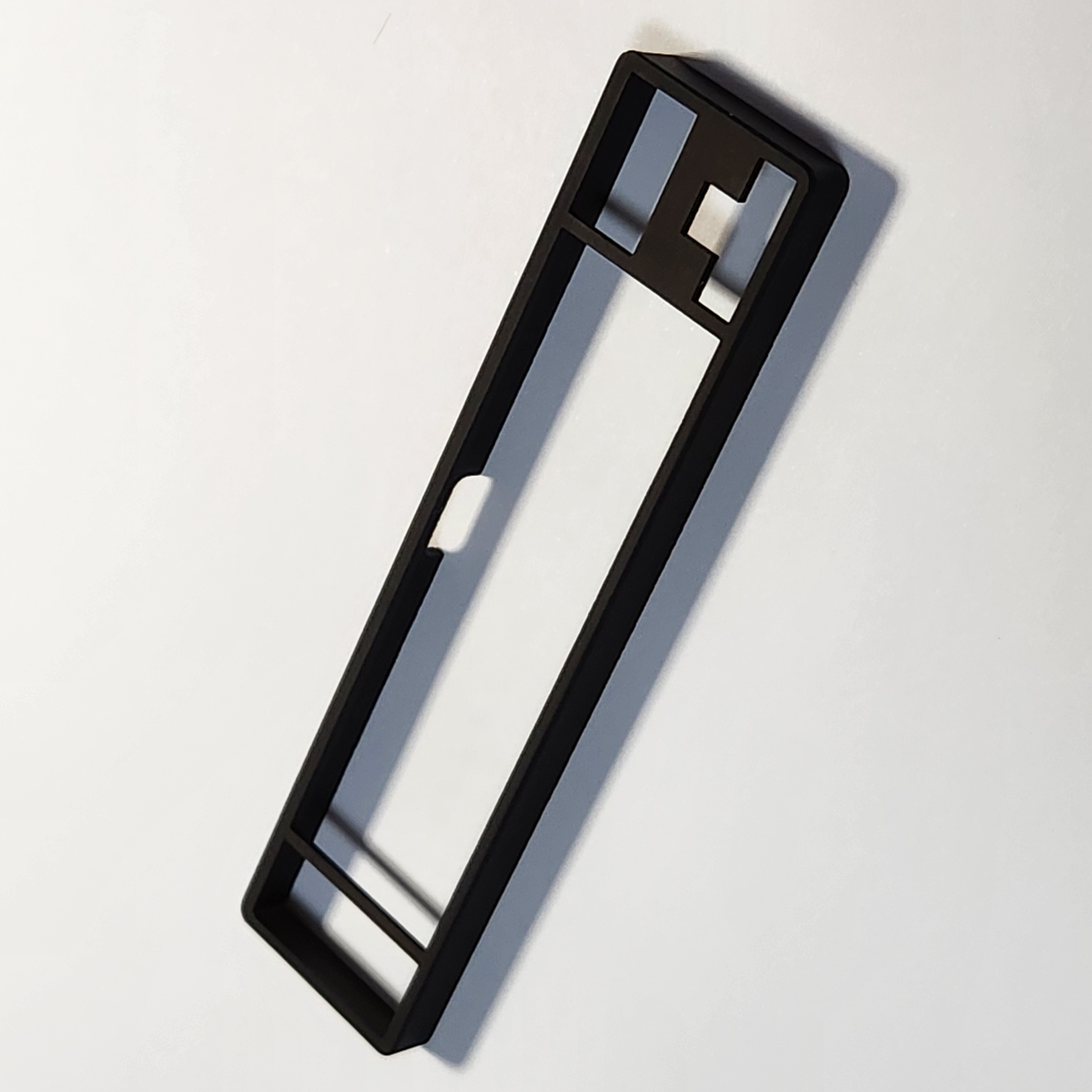

From the project
All Gear series keyboards are being uploaded.

Main components on the Gear80-M
Gear80-M bill of materials (BOM)
181 components, 11 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | XC6206P332MR | SOT-23-3 | U2 |
| 1 | STM32F072C8Tx | LQFP-48_7x7mm_P0.5mm | U3 |
| 1 | USB_C_Receptacle_USB2.0 | USB_C_Receptacle_GCT_USB4110 | J1 |
| 1 | SMD0805P050TF | R_0805_2012Metric | F1 |
| 83 | MX_SW_HS | PinSocket_1x02_P2.54mm_Vertical_new_qmk | MX1, MX2, MX3, MX4, MX5, MX6, MX7, MX8 +75 |
| 81 | D_Small | D_SOD-323_new | D1, D2, D3, D4, D5, D6, D7, D8 +73 |
| 6 | 100n | C_0402_1005Metric | C1, C2, C3, C4, C5, C10 |
| 1 | 4.7u | C_0402_1005Metric | C6 |
| 3 | 1u | C_0402_1005Metric | C7, C8, C9 |
| 2 | 5.1k | R_0402_1005Metric | R1, R2 |
| 1 | 10k | R_0402_1005Metric | R3 |
Gear80-M design files
The KiCad project lives in the cosmosalad/GearSeries repository on GitHub; these links point at the commit this page was built from.
Gear80-M: common questions
What microcontroller does the Gear80-M use?
The Gear80-M is built around the STM32F072C8Tx, from the STM32 family.
How big is the Gear80-M PCB?
The Gear80-M measures 100.8 × 21.8 mm, has 4 copper layers and is 1.2 mm thick.
How many components are on the Gear80-M?
181 components, from 11 distinct parts. The full bill of materials is listed on this page.
Where can I download the Gear80-M design files?
From the cosmosalad/GearSeries repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Gear80-M design in my own project?
The repository has no license, so all rights stay with cosmosalad. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Gear80-M without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
