Gearpad PCB layout, top view — open source RP2040/RP2350 board by cosmosalad

About the Gearpad PCB

Gearpad is an open source RP2040/RP2350 PCB design by cosmosalad, published on GitHub. It is a 2-layer board measuring 74.6 × 124.9 mm, with 80 components from 19 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the SRV05-4, XC6206P332MR and W25Q128JVSIQ. By type, the board carries 21 diodes, 16 capacitors, 9 resistors, 4 ICs, 4 connectors and 3 switches.

It belongs with the keyboards and robotics & motion designs in this gallery.

From the project

All Gear series keyboards are being uploaded.

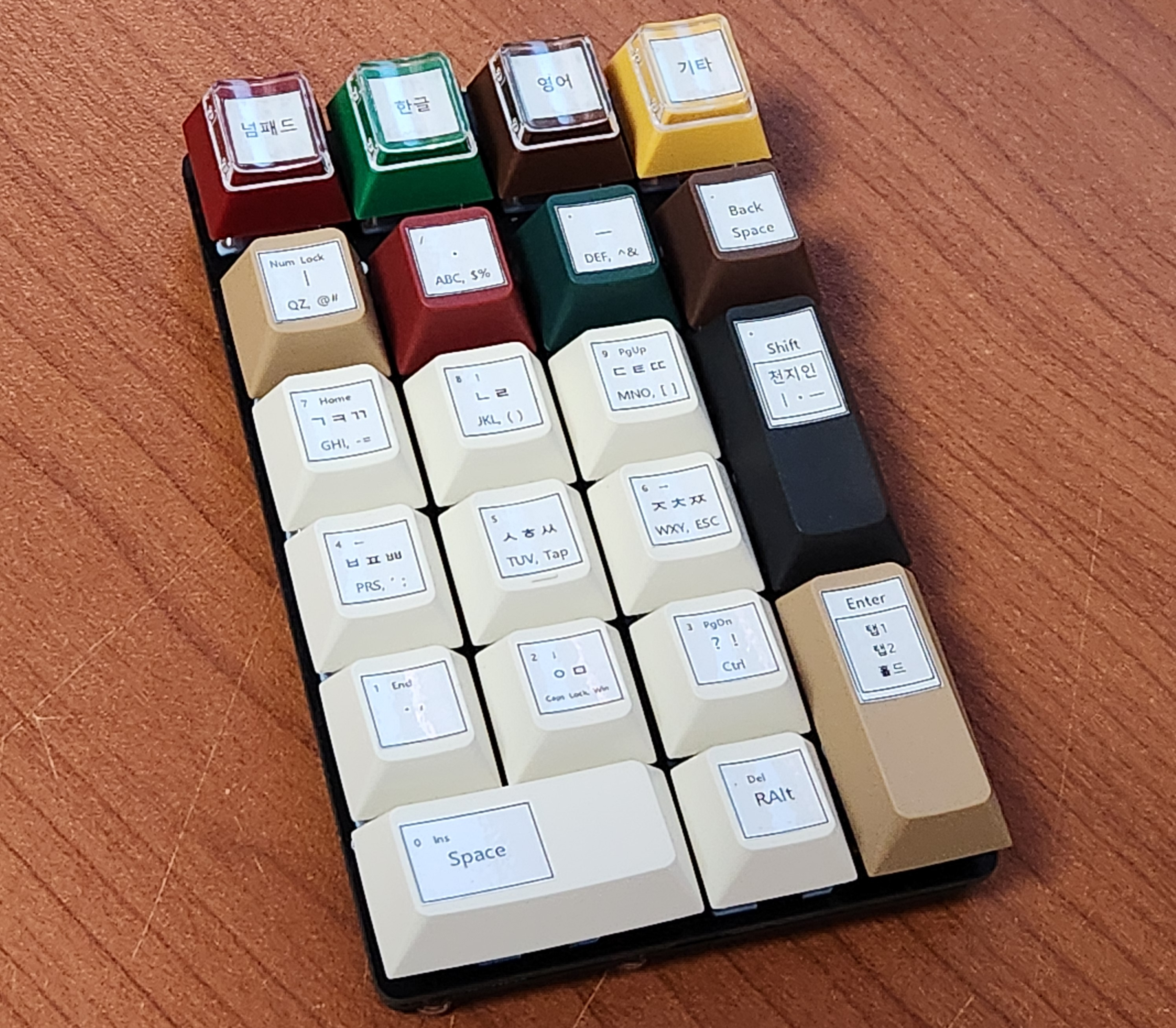

Gearpad, from the project README
From the project README

Main components on the Gearpad

SRV05-4RP2040XC6206P332MRW25Q128JVSIQ

Gearpad bill of materials (BOM)

80 components, 19 distinct parts.

QtyPartRefs
1
SRV05-4
U6
1
RP2040
U7
1
XC6206P332MR
U8
1
W25Q128JVSIQ
U9
1
X322512MSB4SI
Y2
1
Conn_01x10_Pin
J7
1
TYPE-C-31-M-12
J9
1
Conn_01x04
J10
1
Conn_01x05
J11
1
MF-MSMF050-2
F3
21
MX_SW_HS
MX96, MX97, MX98, MX99, MX100, MX101, MX102, MX103 +13
3
stb
S2, S8, S9
21
D_Small
D96, D97, D98, D99, D100, D101, D102, D103 +13
9
100n
C17, C18, C20, C21, C22, C23, C24, C25 +1
5
1u
C19, C27, C28, C29, C32
2
22p
C30, C31
5
5.1k
R12, R13, R17, R18, R20
2
27
R14, R15
2
1k
R16, R19

Gearpad design files

The KiCad project lives in the cosmosalad/GearSeries repository on GitHub; these links point at the commit this page was built from.

Gearpad: common questions

What microcontroller does the Gearpad use?

The Gearpad is built around the RP2040, from the RP2040/RP2350 family.

How big is the Gearpad PCB?

The Gearpad measures 74.6 × 124.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Gearpad?

80 components, from 19 distinct parts. The full bill of materials is listed on this page.

Where can I download the Gearpad design files?

From the cosmosalad/GearSeries repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Gearpad design in my own project?

The repository has no license, so all rights stay with cosmosalad. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Gearpad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
