Left PCB layout, top view — open source AVR/Arduino board by csun
Simulate this board

About the Left PCB

Left is an open source AVR/Arduino PCB design by csun, published on GitHub under the Custom license license. It is a 2-layer board measuring 190.5 × 125.7 mm, with 72 components from 72 distinct parts.

Its main chip is the ProMicro, from the AVR/Arduino family. Other key parts include the TRRS. By type, the board carries 34 relays, 34 diodes, 2 ICs, 1 connector and 1 switch.

From the project

PCB and Plate files for the ellipsis split https://www.csun.io/2020/06/14/ellipsis-split-buildlog.html

KiCad files for the pcb in the pcb/ directory

dxf files for the plates in the plates/ directory. This includes files for the templates used to cut out the wrist rests.

The board is laid out for this specific aliexpress promicro clone. You can probably use a standard promicro, but the USB port will not be flush with the edge of the board.

The toggle switch used is the E-Switch 100SP1T2B4M6QE. TBH I'd buy a clone of this off aliexpress too and save yourself a bunch of money.

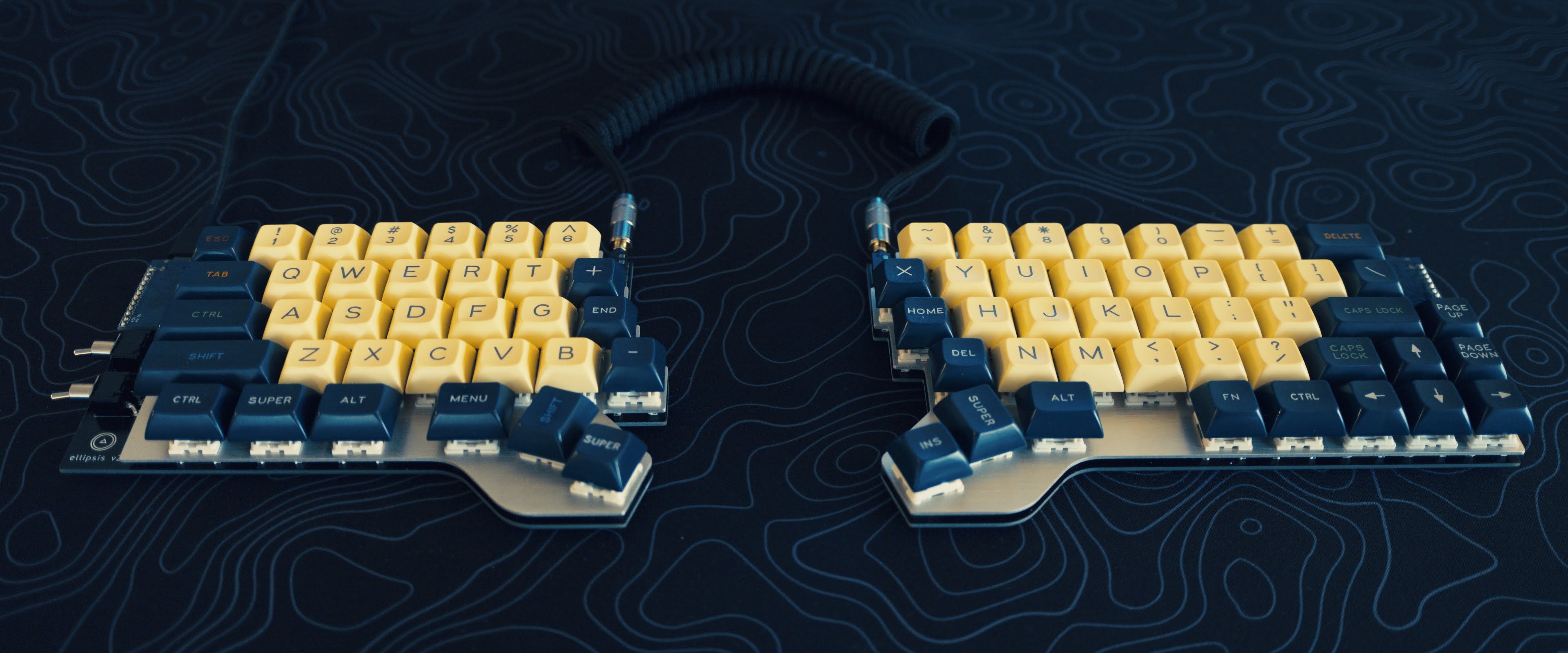

Left, from the project README
From the project README

Main components on the Left

TRRSProMicro

Left bill of materials (BOM)

72 components, 72 distinct parts.

QtyPartRefs
