E80-900M2213S SE050 Breakout
About the E80-900M2213S SE050 Breakout
E80-900M2213S SE050 Breakout is an open source PCB design by cvaldess, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 68.9 × 51.8 mm, with 14 components from 10 distinct parts.
Other key parts include the SE050E2HQ1/Z01Z3Z and E80-900M2213S. By type, the board carries 5 capacitors, 4 resistors, 2 ICs and 1 connector.
It belongs with the rf & radio and dev boards & breakouts designs in this gallery.
From the project

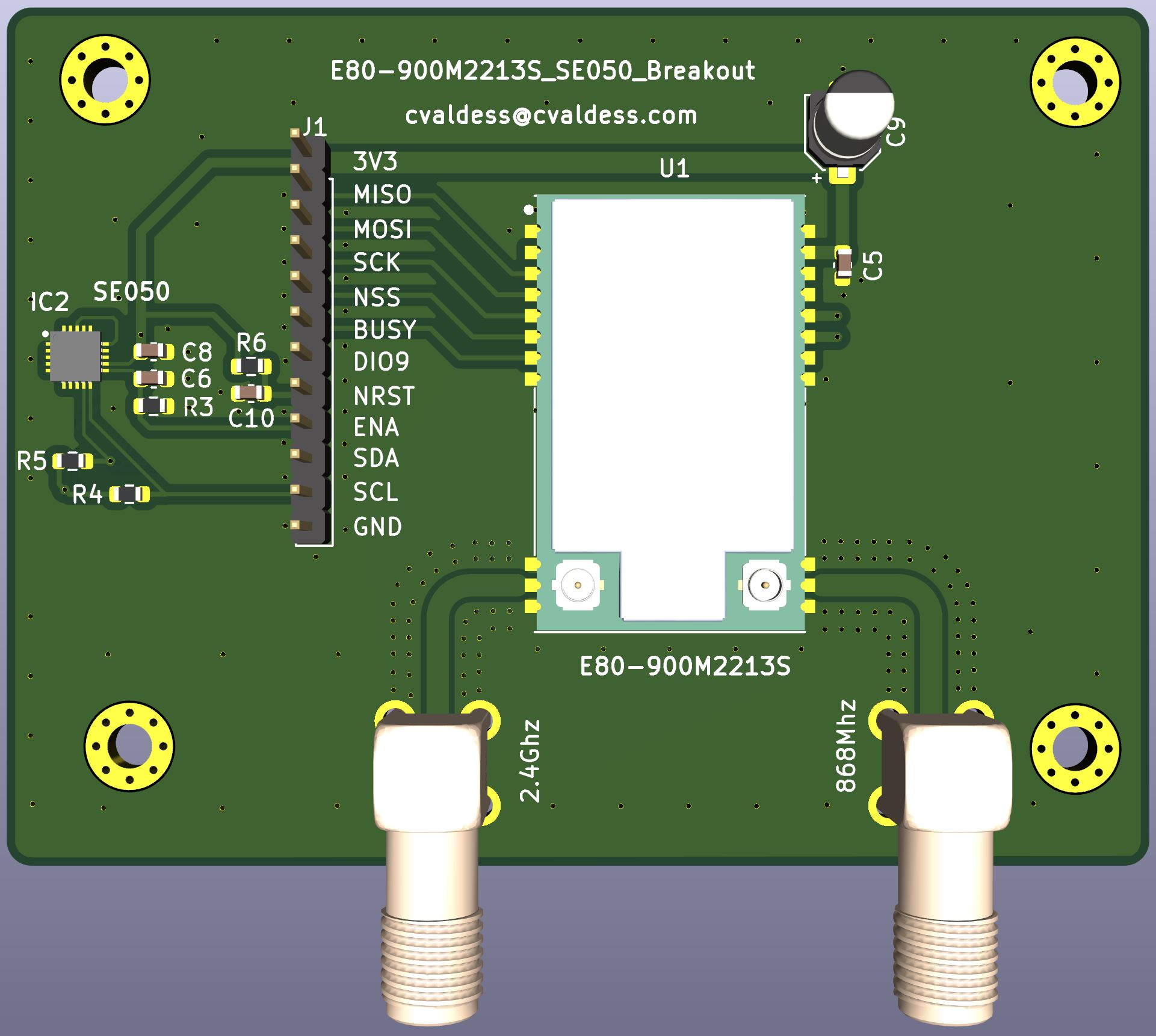

Breakout board for the Ebyte E80-900M2213S (LR1121 dual-band LoRa) with an NXP SE050 secure element — KiCad 10
A breakout board for the Ebyte E80-900M2213S dual-band LoRa module (Semtech LR1121, sub-GHz and 2.4 GHz) with an NXP EdgeLock SE050E2 secure element next to it. The radio's SPI bus and control lines and the secure element's I²C bus all come out on one 12-pin 2 mm header. Each antenna port has its own right-angle SMA connector, fed by a 50 Ω line.
68.92 × 51.80 mm, two layers, 1.6 mm, four M2.5 mounting holes. Designed in KiCad 10. The project is self-contained: the symbols, footprints and 3D models of every non-standard part are in lib/, so it opens on any machine without installing extra…
Main components on the E80-900M2213S SE050 Breakout
E80-900M2213S SE050 Breakout bill of materials (BOM)
14 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SE050E2HQ1/Z01Z3Z SE050E2HQ1_Z01Z3Z | QFN40P300X300X33-21N-D | IC2 |
| 1 | E80-900M2213S | E80-xxxM2213S | U1 |
| 1 | Conn_01x12_Pin | PinHeader_1x12_P2.00mm_Vertical | J1 |
| 2 | - 皇捷 | SMA-TH_HJ-SMA175 | SMA1, SMA2 |
| 3 | 100nf | C_0603_1608Metric | C5, C8, C10 |
| 1 | 33nf | C_0603_1608Metric | C6 |
| 1 | 22uf/6.3V | CP_Elec_4x5.4 | C9 |
| 1 | 100K | R_0603_1608Metric | R3 |
| 2 | 4.7K | R_0603_1608Metric | R4, R5 |
| 1 | 10K | R_0603_1608Metric | R6 |
E80-900M2213S SE050 Breakout design files
The KiCad project lives in the cvaldess/E80-900M2213S_SE050_Breakout repository on GitHub; these links point at the commit this page was built from.
E80-900M2213S SE050 Breakout: common questions
How big is the E80-900M2213S SE050 Breakout?
The E80-900M2213S SE050 Breakout measures 68.9 × 51.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the E80-900M2213S SE050 Breakout?
14 components, from 10 distinct parts. The full bill of materials is listed on this page.
Where can I download the E80-900M2213S SE050 Breakout design files?
From the cvaldess/E80-900M2213S_SE050_Breakout repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the E80-900M2213S SE050 Breakout design in my own project?
Yes, under the terms of its GPL-3.0 license, which cvaldess chose for the repository.
