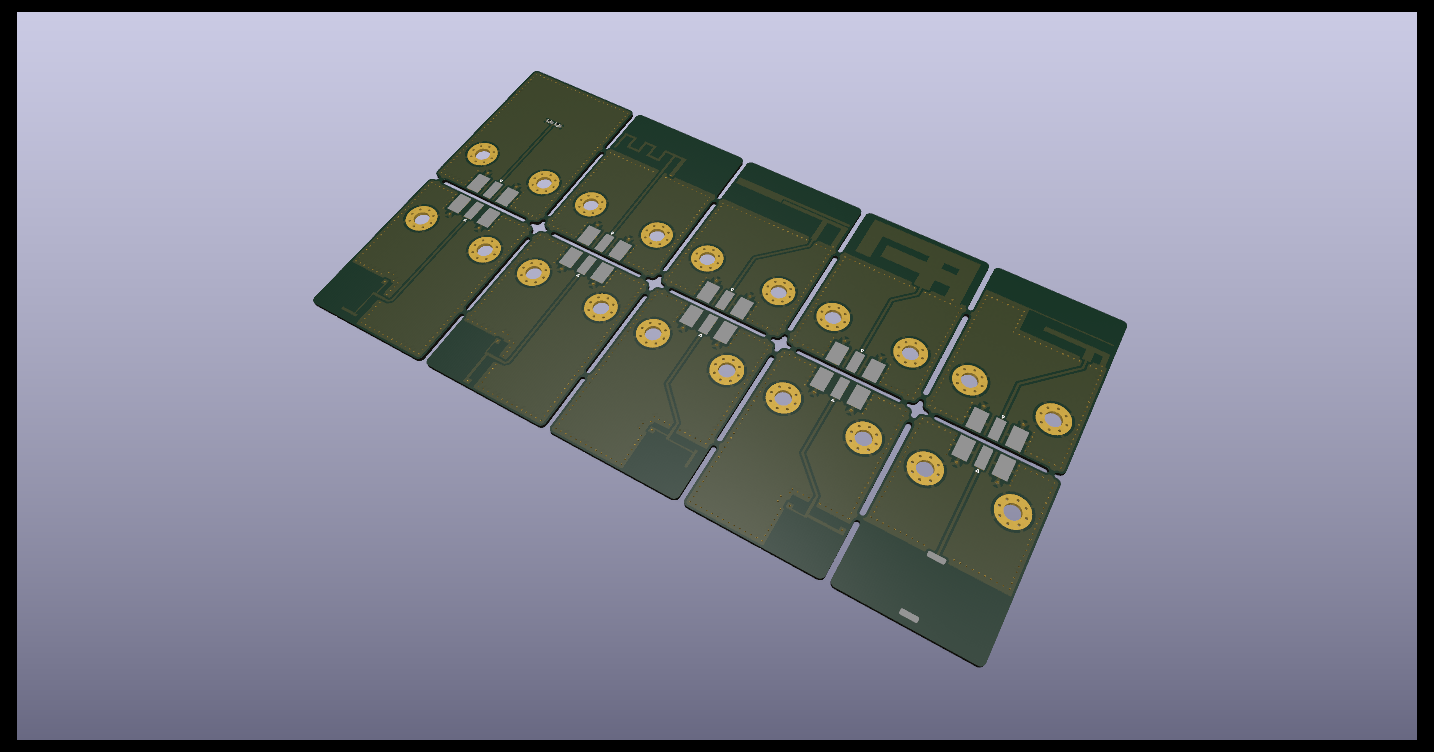

Antenna evaluation board
About the Antenna evaluation board
Antenna evaluation board is an open source PCB design by cyber-murmel, published on GitHub under the MIT license. It is a 4-layer board measuring 133 × 70 mm, with 21 components from 9 distinct parts.
By type, the board carries 10 connectors, 9 antennas and 2 resistors.
It belongs with the dev boards & breakouts and rf & radio designs in this gallery.
From the project
Browse the files on KiCanvas - by Stargirl Flowers
Browse the files on KiCanvas - by Stargirl Flowers
The Makefile calls a Python script that makes use of sexptdata to parse KiCad files. Install Poetry and run poetry shell followed by poetry install in the root of this repositoryto set up a virtual environment with the required package(s). To re-enter this environment, simply run poetry shell in the root of this repository.
Antenna evaluation board bill of materials (BOM)
21 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 10 | Conn_Coaxial | SMA_Molex_73251-2120_EdgeMount_Horizontal | J1, J2, J3, J4, J5, J6, J7, J8 +2 |
| 1 | AKK_2.4GHz_5GHz_Left | AKK_2.4GHz_5GHz_Left | AE1 |
| 1 | Texas_SWRA117D_2.4GHz_Left | Texas_SWRA117D_2.4GHz_Left | AE2 |
| 1 | WYSK_2.4GHz_5GHz_Left | WYSK_2.4GHz_5GHz_Left | AE3 |
| 1 | LHDH_2.4GHz_5GHz_Left | LHDH_2.4GHz_5GHz_Left | AE4 |
| 2 | HCL_2.4GHz_5GHz_Left | HCL_2.4GHz_5GHz_Left | AE5, AE7 |
| 2 | HCL_2.4GHz_5GHz_coupling_Left | HCL_2.4GHz_5GHz_coupling_Left | AE6, AE8 |
| 1 | RainSun_AN1003_2.4GHz_5GHz | RainSun_AN1003_2.4GHz_5GHz | AE10 |
| 2 | 100 | R_0402_1005Metric | R1, R2 |
Antenna evaluation board design files
The KiCad project lives in the cyber-murmel/antenna-evaluation-board repository on GitHub; these links point at the commit this page was built from.
Antenna evaluation board: common questions
How big is the Antenna evaluation board?
The Antenna evaluation board measures 133 × 70 mm, has 4 copper layers and is 0.7662 mm thick.
How many components are on the Antenna evaluation board?
21 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the Antenna evaluation board design files?
From the cyber-murmel/antenna-evaluation-board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Antenna evaluation board design in my own project?
Yes, under the terms of its MIT license, which cyber-murmel chose for the repository.
