Hackpad deck PCB layout, top view — open source board by damnitzhemanth-oss

About the Hackpad deck PCB

Hackpad deck is an open source PCB design by damnitzhemanth-oss, published on GitHub. It is a 2-layer board measuring 95 × 95 mm, with 30 components from 6 distinct parts.

Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 18 diodes, 10 switches, 1 IC and 1 connector.

It belongs with the displays & leds and keyboards designs in this gallery.

From the project

A 9-key macropad with rotary encoder, OLED, and addressable RGB LEDs

Note : This ReadMe is written by a human known as Hemanth from India, I am new to this and learning every day. Please highlight the mistakes I may have made.

This is my first Stardance HackClub project. I have officially worked on this project for 22+ hours. I want to thank all the people to who are responsible in creation of these organizations.

- Modes like Dev, Editor, etc with different presets of keys. - Contains a satisfying Mini Game. (Discussed in depth in upcoming sections)

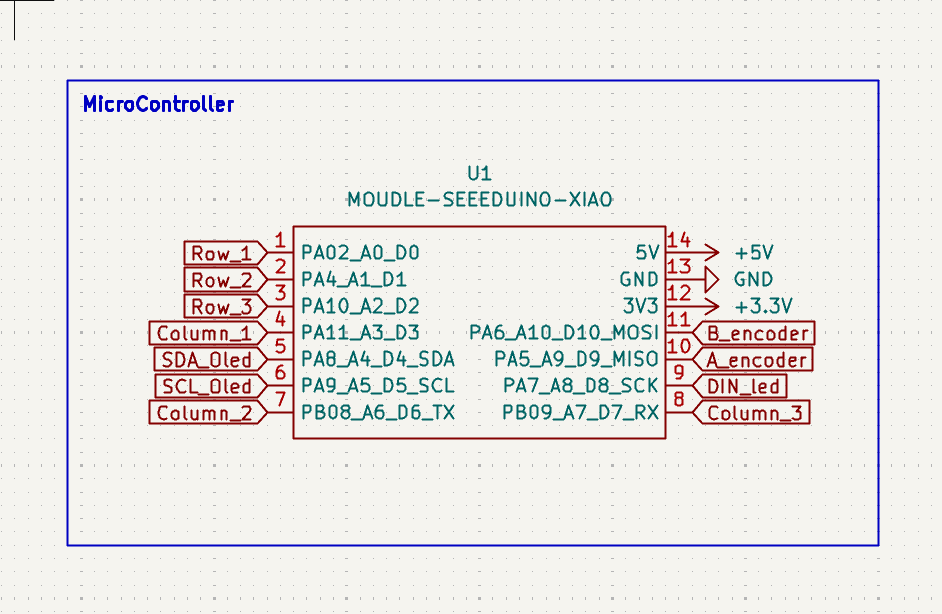

Hackpad deck, from the project README
From the project README

Main components on the Hackpad deck

MOUDLE-SEEEDUINO-XIAO

Hackpad deck bill of materials (BOM)

30 components, 6 distinct parts.

QtyPartRefs
1
MOUDLE-SEEEDUINO-XIAO
U1
1
Conn_01x04_Pin
J1
9
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +1
1
RotaryEncoder_Switch
SW10
9
SK6812MINI-E
D1, D2, D3, D4, D5, D6, D7, D8 +1
9
1N4148
D10, D11, D12, D13, D14, D15, D16, D17 +1

Hackpad deck design files

The KiCad project lives in the damnitzhemanth-oss/hackpad-deck repository on GitHub; these links point at the commit this page was built from.

Hackpad deck: common questions

How big is the Hackpad deck PCB?

The Hackpad deck measures 95 × 95 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Hackpad deck?

30 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Hackpad deck design files?

From the damnitzhemanth-oss/hackpad-deck repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Hackpad deck design in my own project?

The repository has no license, so all rights stay with damnitzhemanth-oss. Use it as a reference, and ask the author before reusing the design.
