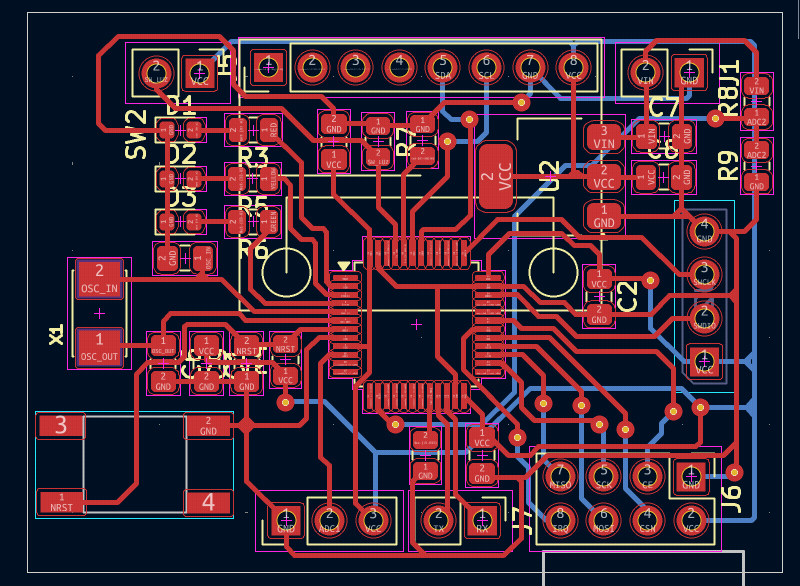

Blue pill PCB layout, top view — open source STM32 board by DasReyxr

About the Blue pill PCB

Blue pill is an open source STM32 PCB design by DasReyxr, published on GitHub. It is a 2-layer board measuring 47 × 32.6 mm, with 32 components from 20 distinct parts.

Its main chip is the STM32F103C8Tx, from the STM32 family. Other key parts include the AMS1117-3.3. By type, the board carries 9 capacitors, 9 resistors, 6 connectors, 3 diodes, 2 ICs and 2 switches.

Blue pill, from the project README
From the project README

Main components on the Blue pill

STM32F103C8TxAMS1117-3.3

Blue pill bill of materials (BOM)

32 components, 20 distinct parts.

QtyPartRefs
1
STM32F103C8Tx
U1
1
AMS1117-3.3
U2
1
Crystal
X1
1
V_Battery
J1
1
STLINK
J2
1
MPU6050
J5
1
NRF24
J6
1
UART
J7
1
PINHD_1x3_Male
J8
1
SW_DPST_x2
SW1
1
SW_DPST_x2
SW2
3
LED
D1, D2, D3
2
1uF
C1, C9
3
100nF
C2, C3, C4
2
22pF
C5, C6
1
10uF
C7
1
22uF
C8
4
10k
R1, R2, R4, R7
3
220
R3, R5, R6
2
PORDEFINIR
R8, R9

Blue pill design files

The KiCad project lives in the DasReyxr/STM32F-CAR repository on GitHub; these links point at the commit this page was built from.

Blue pill: common questions

What microcontroller does the Blue pill use?

The Blue pill is built around the STM32F103C8Tx, from the STM32 family.

How big is the Blue pill PCB?

The Blue pill measures 47 × 32.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Blue pill?

32 components, from 20 distinct parts. The full bill of materials is listed on this page.

Where can I download the Blue pill design files?

From the DasReyxr/STM32F-CAR repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Blue pill design in my own project?

The repository has no license, so all rights stay with DasReyxr. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Blue pill without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
