F405 pill

davidmolony·F405_pill·F405_pill_V1.1/F405_pill.kicad_pcb

F405 pill PCB layout, top view — open source STM32 board by davidmolony
Simulate this board

About the F405 pill PCB

F405 pill is an open source STM32 PCB design by davidmolony, published on GitHub under the BSD-3-Clause license. It is a 4-layer board measuring 54.1 × 19.4 mm, with 46 components from 30 distinct parts.

Its main chip is the STM32F405RGTX, from the STM32 family. Other key parts include the TCAN1051HDR, LM1117-3.3 and HT7550. By type, the board carries 22 capacitors, 12 resistors, 4 ICs, 3 diodes, 2 jumpers and 1 crystal.

From the project

F405 Pill for running VESC based motor control from a Black/Blue Pill footprint

Xtal caps from 18pF to 12pF Separate the two LEDs from the single resistor CAN spike protection RC between GND and pb12 to stop false trips PC12->PA15 to drive LED Increased functionality of several header pins * Review this document for pin changes

* Jumper to disable CAN termination resistor on bottom side of board

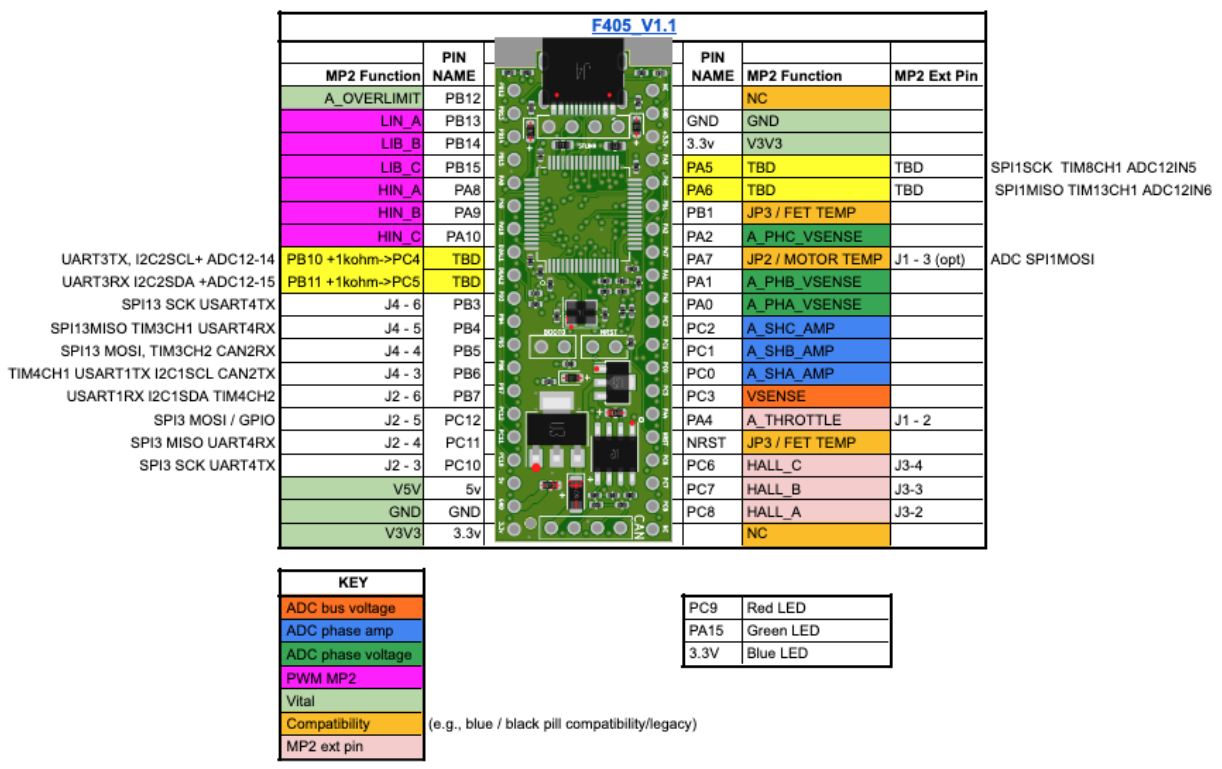

F405 pill, from the project README
From the project README

Main components on the F405 pill

STM32F405RGTXTCAN1051HDRLM1117-3.3HT7550

F405 pill bill of materials (BOM)

46 components, 30 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STM32F405RGTX
STM32F405RGTx
U1
1
TCAN1051HDR
TJA1050T/CM,118
U2
1
LM1117-3.3
U3
1
HT7550
U5
1
CRYSTAL_GND24
Crystal_GND24
Y1
1
TYPE-C-31-M-12
J4
2
Jumper_2_Open
JP1, JP2
1
C130724
BLU
D1
1
C130723
GRN
D2
1
C90692
RED
D3
1
39N
39n
L1
1
4U7
4u7
C1
8
100N
100n
C2, C4, C7, C10, C12, C17, C18, C19
2
12P
12p
C3, C6
1
1u
C5
1
10N
10n
C8
2
2U2
2u2
C9, C11
1
4.7N
4.7n
C13
2
100P
100p
C14, C15
1
10U
10u
C16
Show 10 more
QtyPartRefs
1
100N
100n
C20
1
10n
C21
1
10u
C22
2
10K
10k
R1, R2
2
C101133
100Ω
R3, R4
2
20k
R5, R7
1
47R
R6
2
1k
R8, R12
1
20K
20k
R9
2
5.1K
5.1k
R10, R11

F405 pill design files

The KiCad project lives in the davidmolony/F405_pill repository on GitHub; these links point at the commit this page was built from.

F405 pill: common questions

What microcontroller does the F405 pill use?

The F405 pill is built around the STM32F405RGTX, from the STM32 family.

How big is the F405 pill PCB?

The F405 pill measures 54.1 × 19.4 mm, has 4 copper layers and is 4.69 mm thick.

How many components are on the F405 pill?

46 components, from 30 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the F405 pill design files?

From the davidmolony/F405_pill repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the F405 pill design in my own project?

Yes, under the terms of its BSD-3-Clause license, which davidmolony chose for the repository.

Can I test firmware for the F405 pill without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
