Lcd Daughterboard
dchwebb·Oscar·Hardware_v3/lcd_Daughterboard.kicad_pcb
About the Lcd Daughterboard PCB
Lcd Daughterboard is an open source PCB design by dchwebb, published on GitHub under the Unlicense license. It is a 2-layer board measuring 68 × 45 mm, with 5 components from 3 distinct parts.
Other key parts include the LT1117-3.3. By type, the board carries 4 connectors and 1 IC.
It belongs with the audio, displays & leds and test & measurement designs in this gallery.
From the project

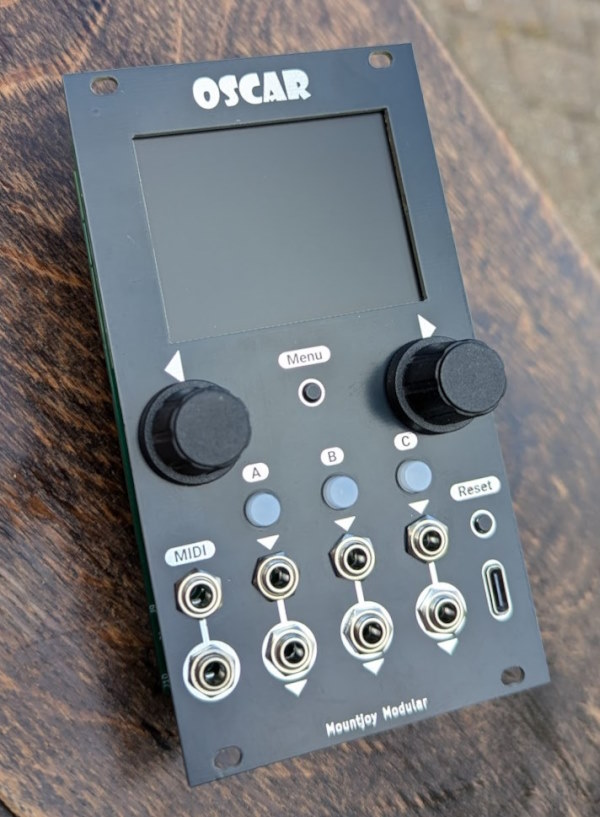

Eurorack 3 Channel Oscilloscope based on ARM STM32F446 MCU
Oscar is a three channel oscilloscope, tuner, spectrum analyser and MIDI event viewer designed for use in a Eurorack modular synthesiser.
Version 3 changes: - Optimised for DIY building - Build Guide - Bill of Materials - Illuminated buttons for quick channel selection - USB input for firmware updates and USB MIDI analysis - An opto-coupler and passive mult on the serial MIDI input - Dedicated Menu button

Main components on the Lcd Daughterboard
Lcd Daughterboard bill of materials (BOM)
5 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LT1117-3.3 ILI9341_SPI_Bare | 18x0.8mmLCDConnector | U1 |
| 2 | Conn_01x03_Pin | PinHeader_1x03_P2.54mm_Vertical | J3, J4 |
| 2 | Conn_01x02_Pin | PinHeader_1x02_P2.54mm_Vertical | J5, J6 |
Lcd Daughterboard design files
The KiCad project lives in the dchwebb/Oscar repository on GitHub; these links point at the commit this page was built from.
Lcd Daughterboard: common questions
How big is the Lcd Daughterboard PCB?
The Lcd Daughterboard measures 68 × 45 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Lcd Daughterboard?
5 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Lcd Daughterboard design files?
From the dchwebb/Oscar repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Lcd Daughterboard design in my own project?
Yes, under the terms of its Unlicense license, which dchwebb chose for the repository.
