Dee pad clean PCB layout, top view — open source board by Dee-24r

About the Dee pad clean PCB

Dee pad clean is an open source PCB design by Dee-24r, published on GitHub. It is a 2-layer board measuring 75.2 × 59.6 mm, with 17 components from 6 distinct parts.

Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 9 diodes, 6 switches, 1 IC and 1 connector.

It belongs with the displays & leds and keyboards designs in this gallery.

From the project

This is the clean repo for github.com/Dee-24r/My_Hackpad. This repo contains files for the design of my custom macropad including the schematic and PCB designs, the case design, firmware, gerber files & more. My hackpad has 5 keys, a rotary encoder, an OLED display screen and 3 rgb led lights.

This repo contains the design files (electrical and cad) for deepad v.1.0, :) my macropad. I added the schematic and pcb designs (along with the (custom) symbol and footprint libraries used), the case and pcb cad designs (in .STEP files), gerber files for pcb production (gerber.zip), and the firmware for the macropad. There is also an image folder (If you're scooping around, this is what you should open - it contains screenshots of every important file/design, and so does this README).

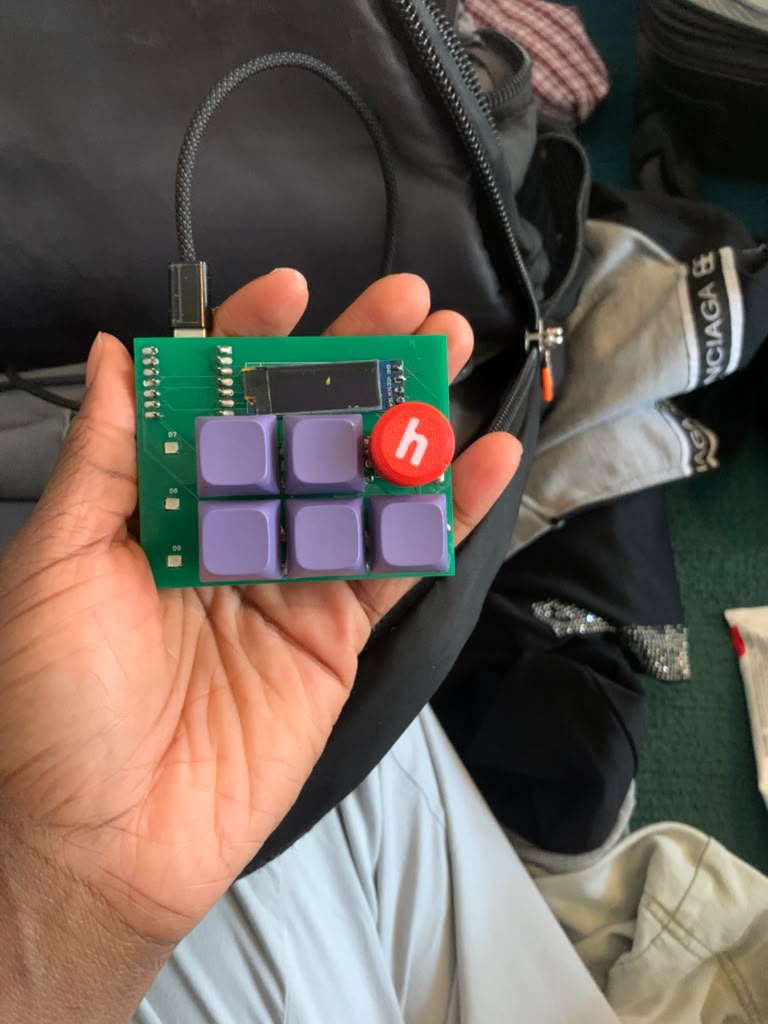

Dee pad clean, from the project README
From the project README

Main components on the Dee pad clean

MOUDLE-SEEEDUINO-XIAO

Dee pad clean bill of materials (BOM)

17 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MOUDLE-SEEEDUINO-XIAO
U1
1
OLED Display Pin
J1
5
SW_Push_45deg
SW1, SW2, SW3, SW4, SW5
1
RotaryEncoder_Switch
SW7
6
1N4148
D1, D2, D3, D4, D5, D6
3
SK6812MINI-E
D7, D8, D9

Dee pad clean design files

The KiCad project lives in the Dee-24r/Dee-pad_clean repository on GitHub; these links point at the commit this page was built from.

Dee pad clean: common questions

How big is the Dee pad clean PCB?

The Dee pad clean measures 75.2 × 59.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Dee pad clean?

17 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Dee pad clean design files?

From the Dee-24r/Dee-pad_clean repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Dee pad clean design in my own project?

The repository has no license, so all rights stay with Dee-24r. Use it as a reference, and ask the author before reusing the design.
