Lcdconn50

deltabeard·lcdconn50·src/lcdconn50.kicad_pcb

Lcdconn50 PCB layout, top view — open source board by deltabeard

About the Lcdconn50 PCB

Lcdconn50 is an open source PCB design by deltabeard, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 51.3 × 14.7 mm, with 4 components from 4 distinct parts.

Other key parts include the CAT4002. By type, the board carries 1 IC, 1 capacitor and 1 resistor.

It belongs with the displays & leds and dev boards & breakouts designs in this gallery.

From the project

Raspberry Pi Breakout Board for a 50 Pin LCD Connector (KD026 FM)

Raspberry Pi Breakout Board for a 50 Pin LCD Connector (KD026 FM).

Uses CC-BY-SA-4.0 license. See the LICENSE file for more information.

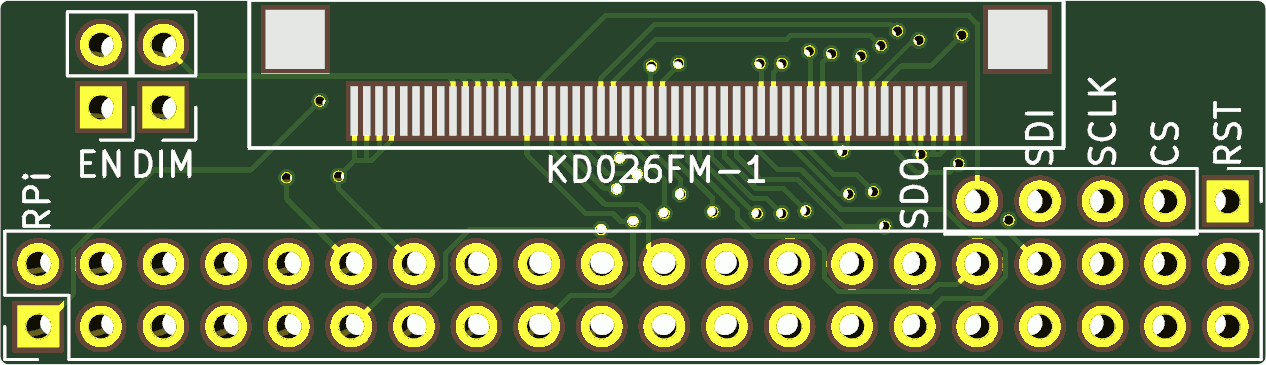

Lcdconn50, from the project README
From the project README

Main components on the Lcdconn50

CAT4002

Lcdconn50 bill of materials (BOM)

4 components, 4 distinct parts.

QtyPartRefs
1
CAT4002
U1
1
2.6FM_1_PIN
KD026FM-1
1
1u
C1
1
1.5k
R1

Lcdconn50 design files

The KiCad project lives in the deltabeard/lcdconn50 repository on GitHub; these links point at the commit this page was built from.

Lcdconn50: common questions

How big is the Lcdconn50 PCB?

The Lcdconn50 measures 51.3 × 14.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Lcdconn50?

4 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the Lcdconn50 design files?

From the deltabeard/lcdconn50 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Lcdconn50 design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which deltabeard chose for the repository.
