About the MacSnap SCSI Original Board
MacSnap SCSI Original Board is an open source PCB design by demik, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 78.2 × 80.9 mm, with 29 components from 18 distinct parts.
Other key parts include the MB_LOW, MB_HI, ROM_LOW, ROM_HI and DOV1. By type, the board carries 9 capacitors, 9 resistors, 6 ICs, 1 connector and 1 diode.
It belongs with the retro computing designs in this gallery.
From the project
SCSI interface by Dove Computer Corporation for Macintosh 512Ke

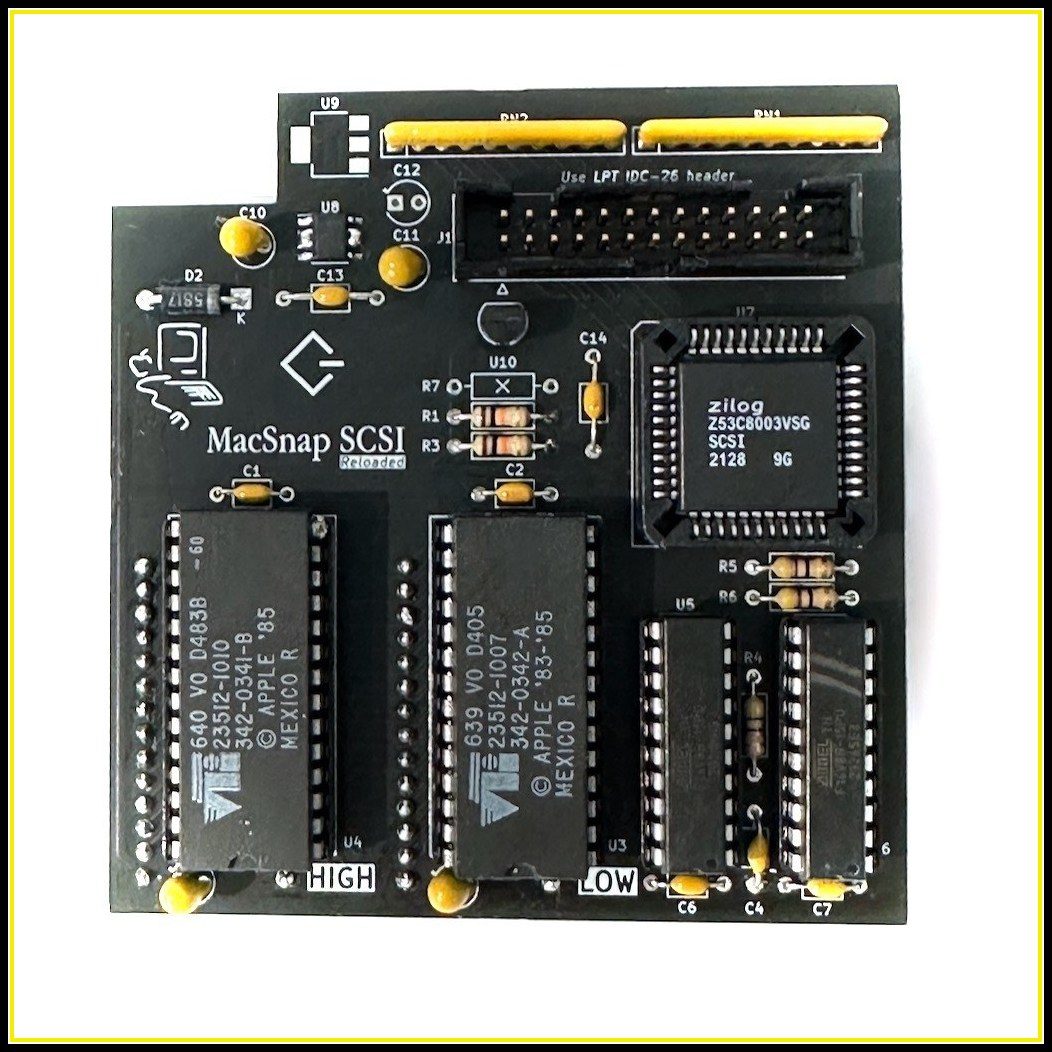

The MacSnap SCSI is an upgrade for the Macintosh 512K(e) It includes a SCSI controller and is designed to plug into the ROM slots It was developed by Dove Computer Corporation. This is a REcreation with a few improvements.
[Documentation]: https://github.com/demik/MacSnap-SCSI/tree/main/EDA/REloaded/README.md
[Button Documentation]: https://img.shields.io/badge/Documentation-FFDD21?style=for-the-badge&logoColor=white&logo=opensourcehardware

Main components on the MacSnap SCSI Original Board
MacSnap SCSI Original Board bill of materials (BOM)
29 components, 18 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MB_LOW | DIP-28_W15.24mm_Socket_Mirroed | U1 |
| 1 | MB_HI | DIP-28_W15.24mm_Socket_Mirroed | U2 |
| 1 | ROM_LOW | DIP-28_W15.24mm_Socket | U3 |
| 1 | ROM_HI | DIP-28_W15.24mm_Socket | U4 |
| 1 | DOV1 | DIP-20_W7.62mm_Socket | U5 |
| 1 | DOV2 | DIP-20_W7.62mm_Socket | U6 |
| 1 | Conn_01x03 | PinHeader_1x03_P2.54mm_Vertical | J1 |
| 1 | SCSI IDC-26 | PinHeader_2x13_P2.54mm_Vertical | IDC26 |
| 1 | SCSI IDC-50 | PinHeader_2x25_P2.54mm_Vertical | IDC50 |
| 1 | Z53C80 | DIP-48_W15.24mm | UZ53C80 |
| 1 | 1N4148 | D_DO-35_SOD27_P12.70mm_Horizontal | D1 |
| 6 | 0.1 | C_Axial_L3.8mm_D2.6mm_P7.50mm_Horizontal | C1, C2, C3, C5, C6, C7 |
| 1 | 1500pF | C_Axial_L3.8mm_D2.6mm_P7.50mm_Horizontal | C4 |
| 2 | 10 | CP_Radial_Tantal_D4.5mm_P2.50mm | C8, C9 |
| 3 | 10k | R_Axial_DIN0309_L9.0mm_D3.2mm_P12.70mm_Horizontal_mod | R1, R2, R3 |
| 1 | 470 | R_Axial_DIN0309_L9.0mm_D3.2mm_P12.70mm_Horizontal_mod | R4 |
| 2 | 47 | R_Axial_DIN0309_L9.0mm_D3.2mm_P12.70mm_Horizontal_mod | R5, R6 |
| 3 | 220/330 | R_Array_SIP8 | RN1, RN2, RN3 |
MacSnap SCSI Original Board design files
The KiCad project lives in the demik/MacSnap-SCSI repository on GitHub; these links point at the commit this page was built from.
MacSnap SCSI Original Board: common questions
How big is the MacSnap SCSI Original Board?
The MacSnap SCSI Original Board measures 78.2 × 80.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the MacSnap SCSI Original Board?
29 components, from 18 distinct parts. The full bill of materials is listed on this page.
Where can I download the MacSnap SCSI Original Board design files?
From the demik/MacSnap-SCSI repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the MacSnap SCSI Original Board design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which demik chose for the repository.
