Stm32-nrf24-wireless node

denysderihlazov·stm32-nrf24-wireless-node·hardware/revB/kicad/nRF24Radio_STM32G431KB.kicad_pcb

Stm32-nrf24-wireless node PCB layout, top view — open source STM32 board by denysderihlazov
Simulate this board

About the Stm32-nrf24-wireless node PCB

Stm32-nrf24-wireless node is an open source STM32 PCB design by denysderihlazov, published on GitHub under the MIT license. It is a 2-layer board measuring 46 × 75.9 mm, with 46 components from 20 distinct parts.

Its main chip is the STM32G431KBTX, from the STM32 family. Other key parts include the AMS1117-3.3. By type, the board carries 17 resistors, 15 capacitors, 5 switches, 5 diodes, 2 ICs and 1 crystal.

It belongs with the displays & leds and iot & wireless designs in this gallery.

From the project

Custom STM32G431KBT6 + nRF24L01 wireless communication module with SSD1306 OLED interface, 2-layer PCB and STM32 HAL firmware. Hardware (KiCad), Gerbers, BOM and documentation included. Fully assembled boards tested in practice.

A fully custom-designed embedded wireless node with its own PCB, firmware, and working radio communication demo.

Custom 2-layer embedded wireless node built around STM32G431KBT6, nRF24L01+ over SPI, and SSD1306 OLED over I2C. This repository contains both the hardware design and the starter firmware for a compact custom communication platform.

This project is a custom PCB-based wireless node designed and assembled for experimenting with:

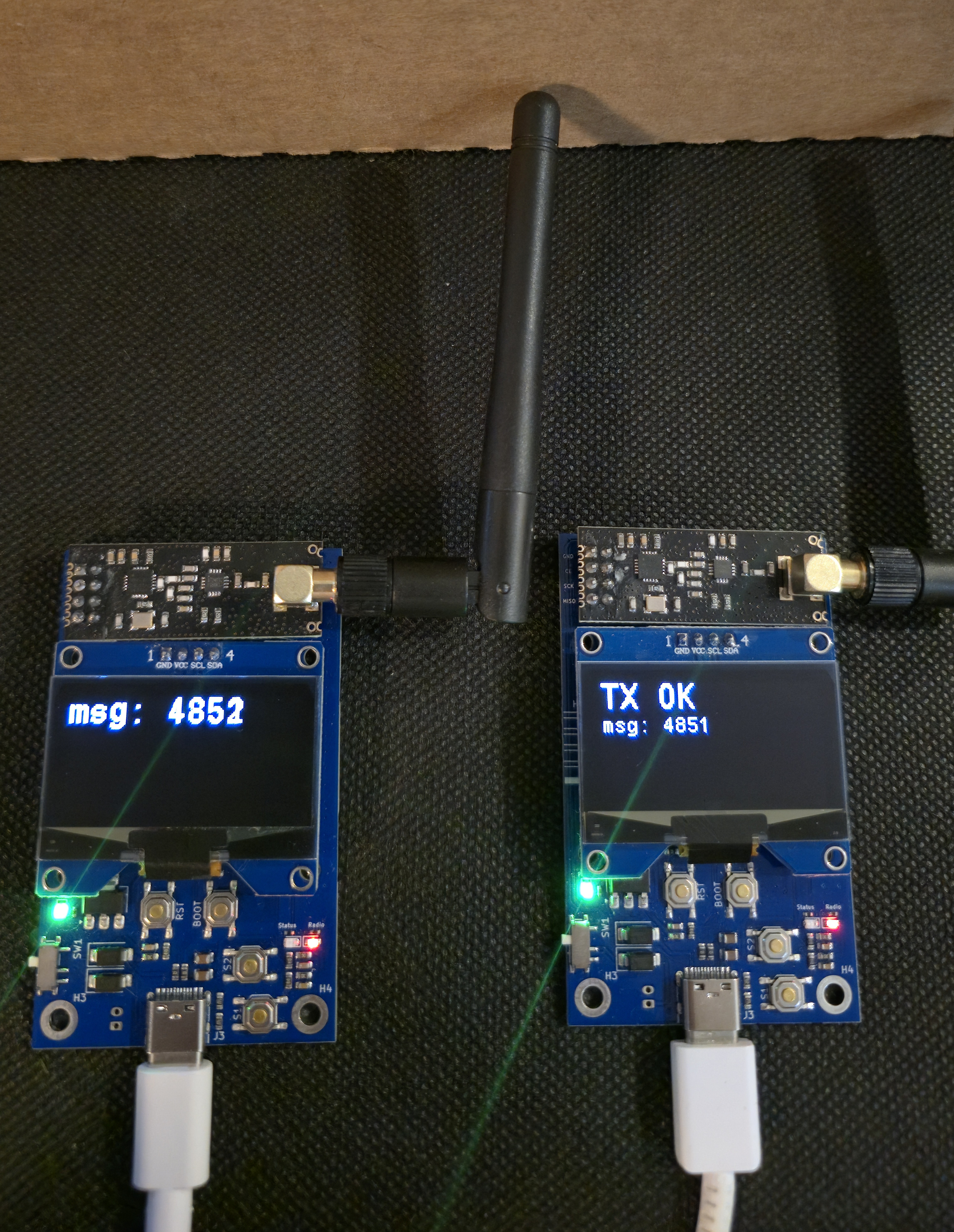

Stm32-nrf24-wireless node, from the project README
From the project README

Main components on the Stm32-nrf24-wireless node

STM32G431KBTXAMS1117-3.3

Stm32-nrf24-wireless node bill of materials (BOM)

46 components, 20 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STM32G431KBTX
STM32G431KBTx
U1
1
AMS1117-3.3
U2
1
YXC Crystal Oscillators XL7EL89CKI-111YLC-32M
24mHz 8pf
Y1
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J3
4
C318884
Tactile Button, 160gf
XKB Connectivity
S1, S2, S3, S4
1
MSK12C02
SW1
2
SS54
MDD（Microdiode Electronics）
D1, D2
1
C2286
White
Hubei KENTO Elec
D3
2
C2297
Green
Hubei KENTO Elec
D4, D5
7
100NF
100nF
YAGEO
C1, C4, C6, C10, C12, C15, C17
2
10PF
10pF
Samsung Electro-Mechanics
C2, C3
4
10UF
10uF
Murata Electronics
C5, C7, C8, C9
1
4.7UF
4.7uF
Samsung Electro-Mechanics
C11
1
1UF
1uF
Samsung Electro-Mechanics
C16
6
10kΩ
UNI-ROYAL(Uniroyal Elec)
R1, R4, R6, R8, R13, R14
2
100Ω
UNI-ROYAL(Uniroyal Elec)
R2, R3
1
1kΩ
UNI-ROYAL(Uniroyal Elec)
R5
2
5.1kΩ
UNI-ROYAL(Uniroyal Elec)
R7, R9
3
0Ω
UNI-ROYAL(Uniroyal Elec)
R10, R11, R15
3
5.1kΩ
UNI-ROYAL(Uniroyal Elec)
R17, R18, R19

Stm32-nrf24-wireless node design files

The KiCad project lives in the denysderihlazov/stm32-nrf24-wireless-node repository on GitHub; these links point at the commit this page was built from.

Stm32-nrf24-wireless node: common questions

What microcontroller does the Stm32-nrf24-wireless node use?

The Stm32-nrf24-wireless node is built around the STM32G431KBTX, from the STM32 family.

How big is the Stm32-nrf24-wireless node PCB?

The Stm32-nrf24-wireless node measures 46 × 75.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Stm32-nrf24-wireless node?

46 components, from 20 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Stm32-nrf24-wireless node design files?

From the denysderihlazov/stm32-nrf24-wireless-node repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Stm32-nrf24-wireless node design in my own project?

Yes, under the terms of its MIT license, which denysderihlazov chose for the repository.

Can I test firmware for the Stm32-nrf24-wireless node without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
