PyroPen PCB layout, top view — open source AVR/Arduino board by DerpyDoggo11

About the PyroPen PCB

PyroPen is an open source AVR/Arduino PCB design by DerpyDoggo11, published on GitHub. It is a 2-layer board measuring 43 × 10 mm, with 55 components from 17 distinct parts.

Its main chip is the ATTINY1616-MNR, from the AVR/Arduino family. Other key parts include the MAX17222ELT+T. By type, the board carries 30 diodes, 12 resistors, 5 connectors, 4 capacitors, 2 ICs and 1 switch.

It belongs with the sensors designs in this gallery.

From the project

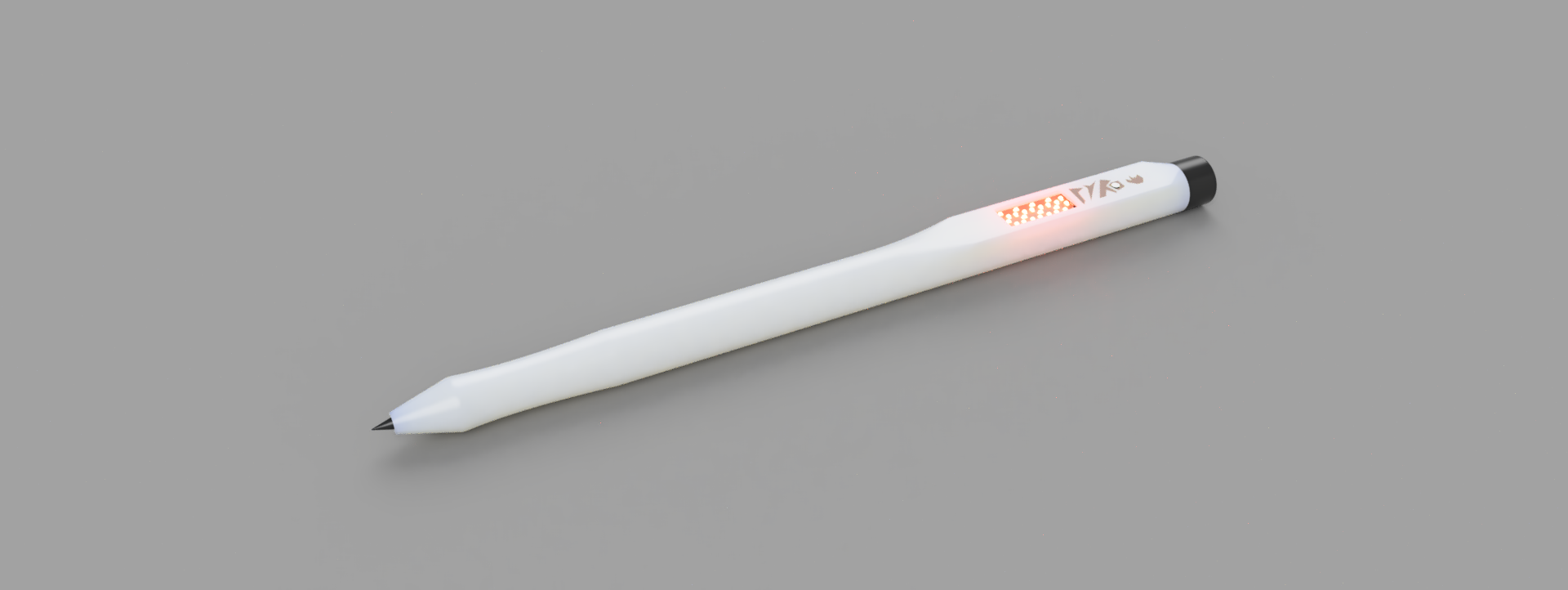

My solution to this is the PyroPen - a portable thermal sensor that fits in the palm of your hand! It can also replace a regular pen, meaning that you have this sensor on you wherever you go.

PyroPen, from the project README
From the project README

Main components on the PyroPen

ATTINY1616-MNRMAX17222ELT+T

PyroPen bill of materials (BOM)

55 components, 17 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATTINY1616-MNR
MICROCHIP(美国微芯)
U1
1
MAX17222ELT+T
ADI(亚德诺)/MAXIM(美信)
U2
1
AAAA BATT
J1
1
Front 3.3v LED
J2
1
MLX90614ESF-DCC-000-TU
J3
1
BUZZ
J4
1
DEBUG
J5
1
B3U-1000P
OMRON(欧姆龙)
SW1
30
LED_45DEG
LED_45deg
D2, D3, D4, D5, D6, D8, D9, D10 +22
1
2.2UH
2.2uH
L1
2
100NF
100nF
C1, C4
2
10UF
10uF
C6, C7
6
68
R1, R2, R3, R4, R5, R6
1
80.6K
80.6k
R7
2
4.7K
4.7k
R8, R9
1
150
R10
2
100
R27, R28

PyroPen design files

The KiCad project lives in the DerpyDoggo11/PyroPen repository on GitHub; these links point at the commit this page was built from.

PyroPen: common questions

What microcontroller does the PyroPen use?

The PyroPen is built around the ATTINY1616-MNR, from the AVR/Arduino family.

How big is the PyroPen PCB?

The PyroPen measures 43 × 10 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PyroPen?

55 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the PyroPen design files?

From the DerpyDoggo11/PyroPen repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the PyroPen design in my own project?

The repository has no license, so all rights stay with DerpyDoggo11. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the PyroPen without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
