About the Keyboard PCB
Keyboard is an open source PCB design by DiScarlet, published on GitHub. It is a 2-layer board measuring 264.8 × 109.2 mm, with 105 components from 3 distinct parts.
Other key parts include the Adafruit_Feather_HUZZAH32_ESP32. By type, the board carries 52 switches, 52 diodes and 1 module.
It belongs with the keyboards and dev boards & breakouts designs in this gallery.
From the project
Why are the Space and Tab keys so big? Completely unnecessary.
Why are the Space and Tab keys so big? Completely unnecessary.
We are not accountants. Why should some keys get more space than others?

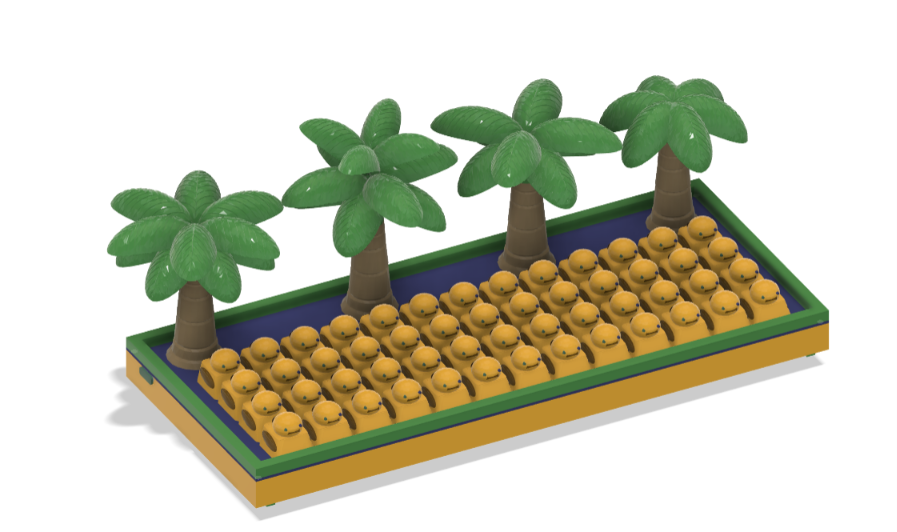

Ducks, palm trees, and pure summer vibes. Tactile. Compact.
Built for minimalists who still want to have fun.
52-key compact layout Uniform key sizes with no oversized Space or Tab keys Tactile typing experience Custom duck-themed design Compact footprint for minimalist setups Integrated sound effects: every keypress quacks
Main components on the Keyboard
Keyboard bill of materials (BOM)
105 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Adafruit_Feather_HUZZAH32_ESP32 | Adafruit_Feather | A1 |
| 52 | SW_Push | SW_choc_v1_HS_CPG135001S30_1u | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +44 |
| 52 | D | D_SOD-123 | D1, D2, D3, D4, D5, D6, D7, D8 +44 |
Keyboard design files
The KiCad project lives in the DiScarlet/Keyboard repository on GitHub; these links point at the commit this page was built from.
- LayoutHardware/keyboard.kicad_pcb
- SchematicHardware/keyboard.kicad_sch
- BOMBoM.csv
Keyboard: common questions
How big is the Keyboard PCB?
The Keyboard measures 264.8 × 109.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Keyboard?
105 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Keyboard design files?
From the DiScarlet/Keyboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Keyboard design in my own project?
The repository has no license, so all rights stay with DiScarlet. Use it as a reference, and ask the author before reusing the design.
