DoppelLoraModul-RaspberryPi-HAT
About the DoppelLoraModul-RaspberryPi-HAT
DoppelLoraModul-RaspberryPi-HAT is an open source PCB design by DJ2RF, published on GitHub under the MIT license. It is a 2-layer board measuring 65 × 56 mm, with 9 components from 4 distinct parts.
By type, the board carries 4 capacitors, 2 ICs, 2 resistors and 1 connector.
It belongs with the rf & radio, dev boards & breakouts and iot & wireless designs in this gallery.
From the project

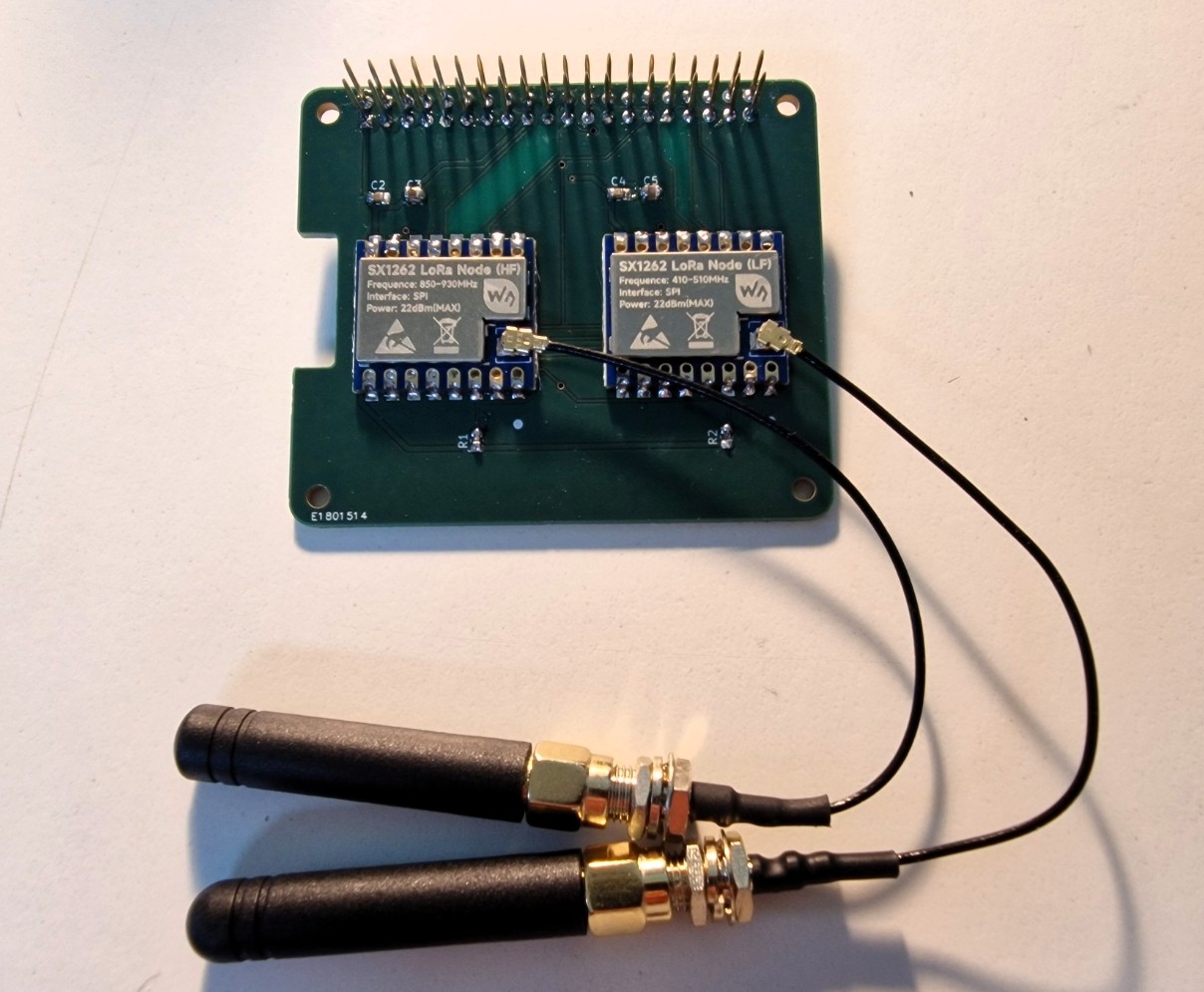

Raspberry HAT for Nerdverlag LoRa Analyser or any other projects
Dieses KiCad-Projekt enthält die Schaltung und das Leiterplattenlayout für ein Raspberry-Pi-HAT mit zwei unabhängigen LoRa-Funkmodulen auf Basis des Semtech SX1262.
Die Platine wurde für den gleichzeitigen Betrieb eines 433-MHz- und eines 863/868-MHz-Moduls entwickelt. Beide Funkmodule verwenden den gemeinsamen SPI0-Bus des Raspberry Pi, besitzen jedoch getrennte Chip-Select-, Reset-, Busy-, Interrupt- und HF-Umschaltleitungen.
DoppelLoraModul-RaspberryPi-HAT bill of materials (BOM)
9 components, 4 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | ~ | Waveshare_Core1262_HF_LF | U3, U4 |
| 1 | Conn_02x20_Odd_Even | PinSocket_2x20_P2.54mm_Vertical | J1 |
| 4 | C | C_0805_2012Metric | C2, C3, C4, C5 |
| 2 | 10k | R_0805_2012Metric | R1, R2 |
DoppelLoraModul-RaspberryPi-HAT design files
The KiCad project lives in the DJ2RF/DoppelLoraModul-RaspberryPi-HAT repository on GitHub; these links point at the commit this page was built from.
DoppelLoraModul-RaspberryPi-HAT: common questions
How big is the DoppelLoraModul-RaspberryPi-HAT?
The DoppelLoraModul-RaspberryPi-HAT measures 65 × 56 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the DoppelLoraModul-RaspberryPi-HAT?
9 components, from 4 distinct parts. The full bill of materials is listed on this page.
Where can I download the DoppelLoraModul-RaspberryPi-HAT design files?
From the DJ2RF/DoppelLoraModul-RaspberryPi-HAT repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the DoppelLoraModul-RaspberryPi-HAT design in my own project?
Yes, under the terms of its MIT license, which DJ2RF chose for the repository.
