Coleco adam ade pro shield
About the Coleco adam ade pro shield
Coleco adam ade pro shield is an open source PCB design by djtersteegc, published on GitHub under the MIT license. It is a 2-layer board measuring 99.1 × 61 mm, with 26 components from 25 distinct parts.
Other key parts include the CARD-SD-ADAPTER-CATALEX. By type, the board carries 8 connectors, 7 switches, 4 resistors, 1 module, 1 transistor and 1 jumper.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
Coleco Adam ADE Pro compatible shield using an Arduino Mega2560

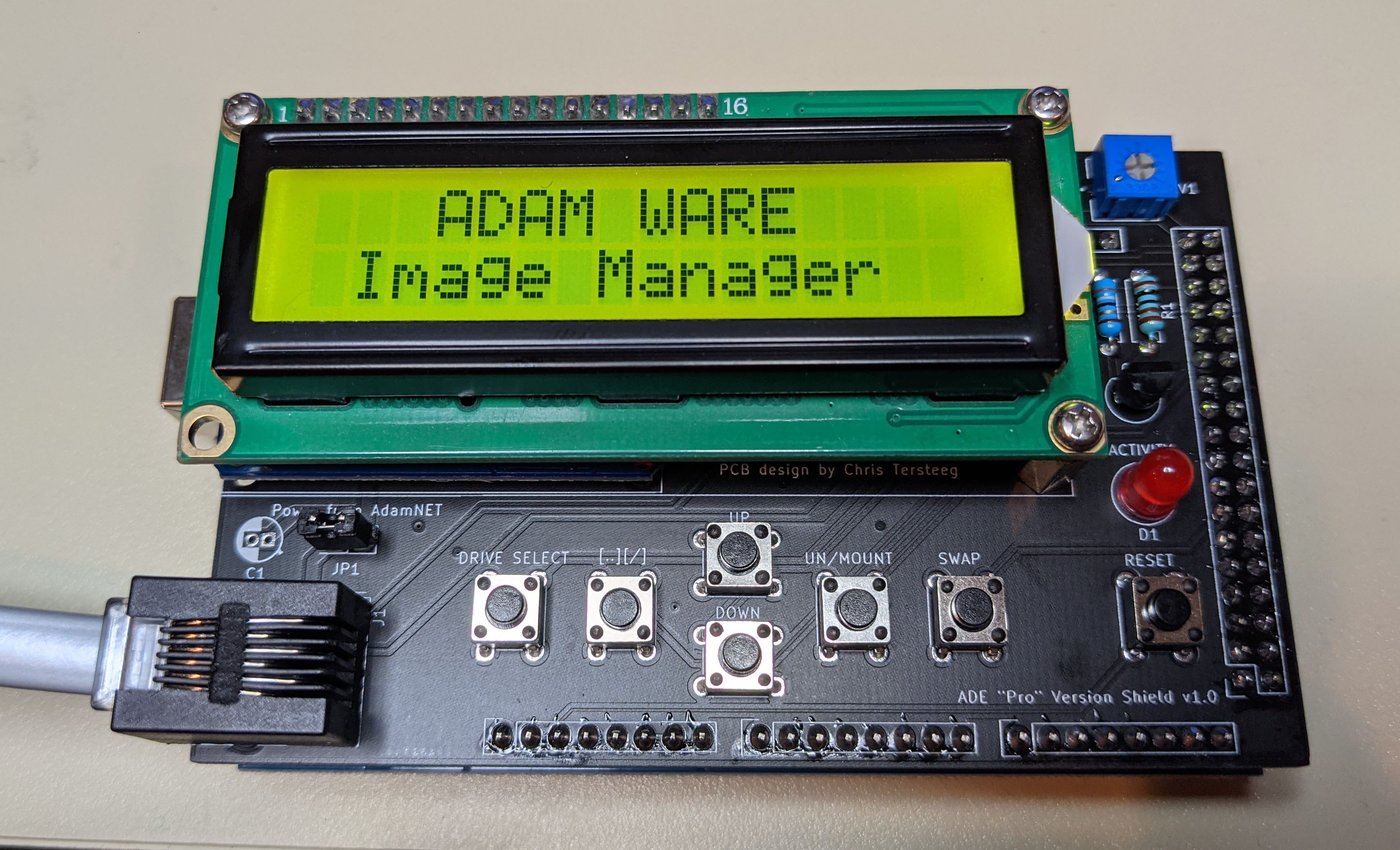

This custom Arduino Mega 2560 shield compatible with AdamNet Drive Emulator (ADE) software by Sean Myers. The design is built to be compatible with the "Pro" version of the software available precompiled and ready for flashing on his repo. I was inspired by John Lundy's original ADE shield design, but wanted something with a slightly smaller footprint and different SD card module. This was accomplished by putting the LCD on stand-offs and mounting the card (and some other components) underneath it.
Main components on the Coleco adam ade pro shield
Coleco adam ade pro shield bill of materials (BOM)
26 components, 25 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CARD-SD-ADAPTER-CATALEX | Catalex-MicroSD-Card-Down | MOD1 |
| 1 | 2N3906 | TO-92_Inline | Q1 |
| 1 | RJ12 | RJ12_Amphenol_54601 | J1 |
| 1 | Digital | Socket_Strip_Arduino_2x18 | P1 |
| 1 | Power | Socket_Strip_Arduino_1x08 | P2 |
| 2 | Analog | Socket_Strip_Arduino_1x08 | P3, P4 |
| 1 | PWM | Socket_Strip_Arduino_1x10 | P5 |
| 1 | PWM | Socket_Strip_Arduino_1x08 | P6 |
| 1 | Communication | Socket_Strip_Arduino_1x08 | P7 |
| 1 | WC1602A | WC1602A | DS1 |
| 1 | Jumper | PinHeader_2x01_P2.54mm_Vertical | JP1 |
| 1 | R_POT_TRIM_US | TRIM_3362P-1-103 | RV1 |
| 1 | SWAP | SW_TH_Tactile_Omron_B3F-10xx | SW1 |
| 1 | [..][/] | SW_TH_Tactile_Omron_B3F-10xx | SW2 |
| 1 | UN/MOUNT | SW_TH_Tactile_Omron_B3F-10xx | SW3 |
| 1 | DOWN | SW_TH_Tactile_Omron_B3F-10xx | SW4 |
| 1 | UP | SW_TH_Tactile_Omron_B3F-10xx | SW5 |
| 1 | DRIVE SELECT | SW_TH_Tactile_Omron_B3F-10xx | SW6 |
| 1 | RESET | SW_TH_Tactile_Omron_B3F-10xx | SW7 |
| 1 | LED | LED_D5.0mm | D1 |
Show 5 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 22uf 6.3v | CP_Radial_D4.0mm_P1.50mm | C1 |
| 1 | 1K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
| 1 | 33R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2 |
| 1 | 5.6K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R3 |
| 1 | 100 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R4 |
Coleco adam ade pro shield design files
The KiCad project lives in the djtersteegc/coleco-adam-ade-pro-shield repository on GitHub; these links point at the commit this page was built from.
Coleco adam ade pro shield: common questions
How big is the Coleco adam ade pro shield?
The Coleco adam ade pro shield measures 99.1 × 61 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Coleco adam ade pro shield?
26 components, from 25 distinct parts. The full bill of materials is listed on this page.
Where can I download the Coleco adam ade pro shield design files?
From the djtersteegc/coleco-adam-ade-pro-shield repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Coleco adam ade pro shield design in my own project?
Yes, under the terms of its MIT license, which djtersteegc chose for the repository.
