Rx02-emulator mega shield

djtersteegc·rx02-emulator-mega-shield

Rx02-emulator mega shield layout, top view — open source board by djtersteegc

About the Rx02-emulator mega shield

Rx02-emulator mega shield is an open source PCB design by djtersteegc, published on GitHub under the MIT license. It is a 2-layer board measuring 99.1 × 71.1 mm, with 57 components from 25 distinct parts.

Other key parts include the 74HCT14 and CARD-SD-ADAPTER-CATALEX. By type, the board carries 26 resistors, 8 connectors, 7 transistors, 5 capacitors, 4 switches and 3 diodes.

It belongs with the displays & leds and dev boards & breakouts designs in this gallery.

From the project

Arduino Mega2560 shield with buttons and LCD for AK6DN's DEC RX02 emulator code

Arduino Mega2560 shield with buttons and LCD based on AK6DN's DEC RX02 emulator board design and code. There is a fork of his project at https://github.com/djtersteegc/rx02_emulator that adds software support for the new board design.

You can also still run it via the original serial terminal command scheme. If you don't want to build it with the LCD or buttons, you can disable supprort in the code by leaving

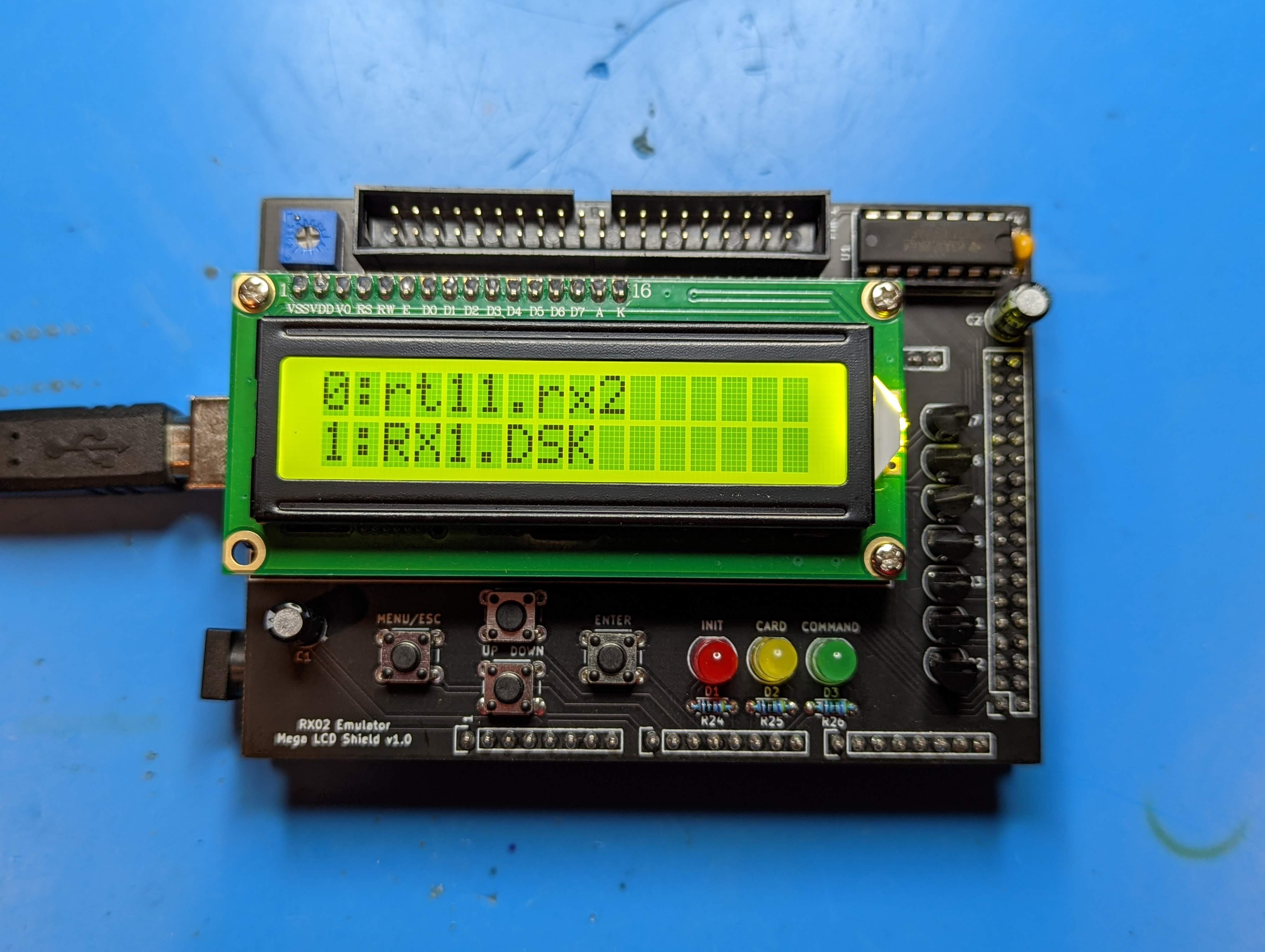

Rx02-emulator mega shield, from the project README — From the project README

Main components on the Rx02-emulator mega shield

74HCT14 CARD-SD-ADAPTER-CATALEX

Rx02-emulator mega shield bill of materials (BOM)

57 components, 25 distinct parts.

Qty	Part	Footprint	Refs
1	74HCT14	DIP-14_W7.62mm_Socket_LongPads	U1
1	CARD-SD-ADAPTER-CATALEX	Catalex-MicroSD-Card-Up-No-Holes	MOD1
7	2N7000	TO-92_HandSolder	Q1, Q2, Q3, Q4, Q5, Q6, Q7
1	Conn_02x20_Odd_Even	IDC-Header_2x20_P2.54mm_Vertical	J1
1	Digital	Socket_Strip_Arduino_2x18	P1
1	Power	Socket_Strip_Arduino_1x08	P2
2	Analog	Socket_Strip_Arduino_1x08	P3, P4
1	PWM	Socket_Strip_Arduino_1x10	P5
1	PWM	Socket_Strip_Arduino_1x08	P6
1	Communication	Socket_Strip_Arduino_1x08	P7
1	WC1602A	WC1602A	DS1
1	10K	TRIM_3362P-1-103	RV1
1	MENU/ESC	SW_PUSH_6mm_H4.3mm	SW1
1	DOWN	SW_PUSH_6mm_H4.3mm	SW2
1	UP	SW_PUSH_6mm_H4.3mm	SW3
1	ENTER	SW_PUSH_6mm_H4.3mm	SW4
1	INIT	LED_D5.0mm	D1
1	CARD	LED_D5.0mm	D2
1	COMMAND	LED_D5.0mm	D3
2	33uf	CP_Radial_D5.0mm_P2.50mm	C1, C2

Show 5 more

Qty	Part	Footprint	Refs
3	0.1uf	C_Disc_D5.0mm_W2.5mm_P5.00mm	C3, C4, C5
11	390R	R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal	R1, R3, R5, R7, R9, R11, R13, R15 +3
11	180R	R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal	R2, R4, R6, R8, R10, R12, R14, R16 +3
1	100R	R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal	R21
3	330R	R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal	R24, R25, R26

Rx02-emulator mega shield design files

The KiCad project lives in the djtersteegc/rx02-emulator-mega-shield repository on GitHub; these links point at the commit this page was built from.

Layoutrx02-emulator-mega-shield.kicad_pcb

Rx02-emulator mega shield: common questions

How big is the Rx02-emulator mega shield?

The Rx02-emulator mega shield measures 99.1 × 71.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Rx02-emulator mega shield?

57 components, from 25 distinct parts. The full bill of materials is listed on this page.

Where can I download the Rx02-emulator mega shield design files?

From the djtersteegc/rx02-emulator-mega-shield repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Rx02-emulator mega shield design in my own project?

Yes, under the terms of its MIT license, which djtersteegc chose for the repository.
