Sd breakout

dkonigsberg·sd-breakout

Sd breakout layout, top view — open source board by dkonigsberg

About the Sd breakout

Sd breakout is an open source PCB design by dkonigsberg, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 31.1 × 27.9 mm, with 5 components from 5 distinct parts.

Other key parts include the EClamp2410P. By type, the board carries 2 connectors, 1 IC, 1 capacitor and 1 resistor.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

microSD Breakout Board

This repository contains the KiCad project with the complete circuit schematics and PCB layout for a microSD card breakout board. This board includes all the necessary pull-up resistors and protection diodes for the full SD interface, courtesy of the EClamp2410P component.

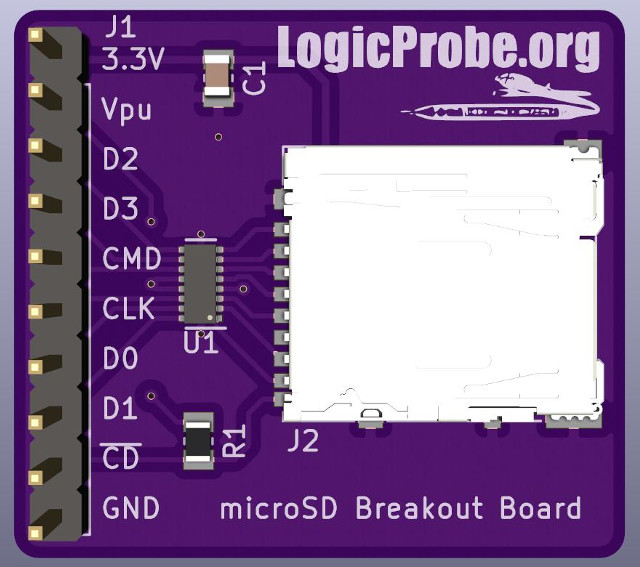

Sd breakout, from the project README
From the project README

Main components on the Sd breakout

EClamp2410P

Sd breakout bill of materials (BOM)

5 components, 5 distinct parts.

QtyPartRefs
1
EClamp2410P
Semtech Corporation
U1
1
Header
J1
1
microSD Socket
Hirose Electric Co Ltd
J2
1
10uF
Samsung Electro-Mechanics
C1
1
10k
Vishay Dale
R1

Sd breakout design files

The KiCad project lives in the dkonigsberg/sd-breakout repository on GitHub; these links point at the commit this page was built from.

Sd breakout: common questions

How big is the Sd breakout?

The Sd breakout measures 31.1 × 27.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Sd breakout?

5 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the Sd breakout design files?

From the dkonigsberg/sd-breakout repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Sd breakout design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which dkonigsberg chose for the repository.
