UNICON board layout, top view — open source AVR/Arduino board by dodotronix

About the UNICON board

UNICON board is an open source AVR/Arduino PCB design by dodotronix, published on GitHub. It is a 2-layer board measuring 127 × 110 mm, with 127 components from 52 distinct parts.

Its main chip is the ATXMEGA64A1-A, from the AVR/Arduino family. Other key parts include the LF33CDT. By type, the board carries 54 resistors, 21 capacitors, 18 connectors, 10 inductors, 9 diodes and 6 switches.

It belongs with the robotics & motion and sensors designs in this gallery.

From the project

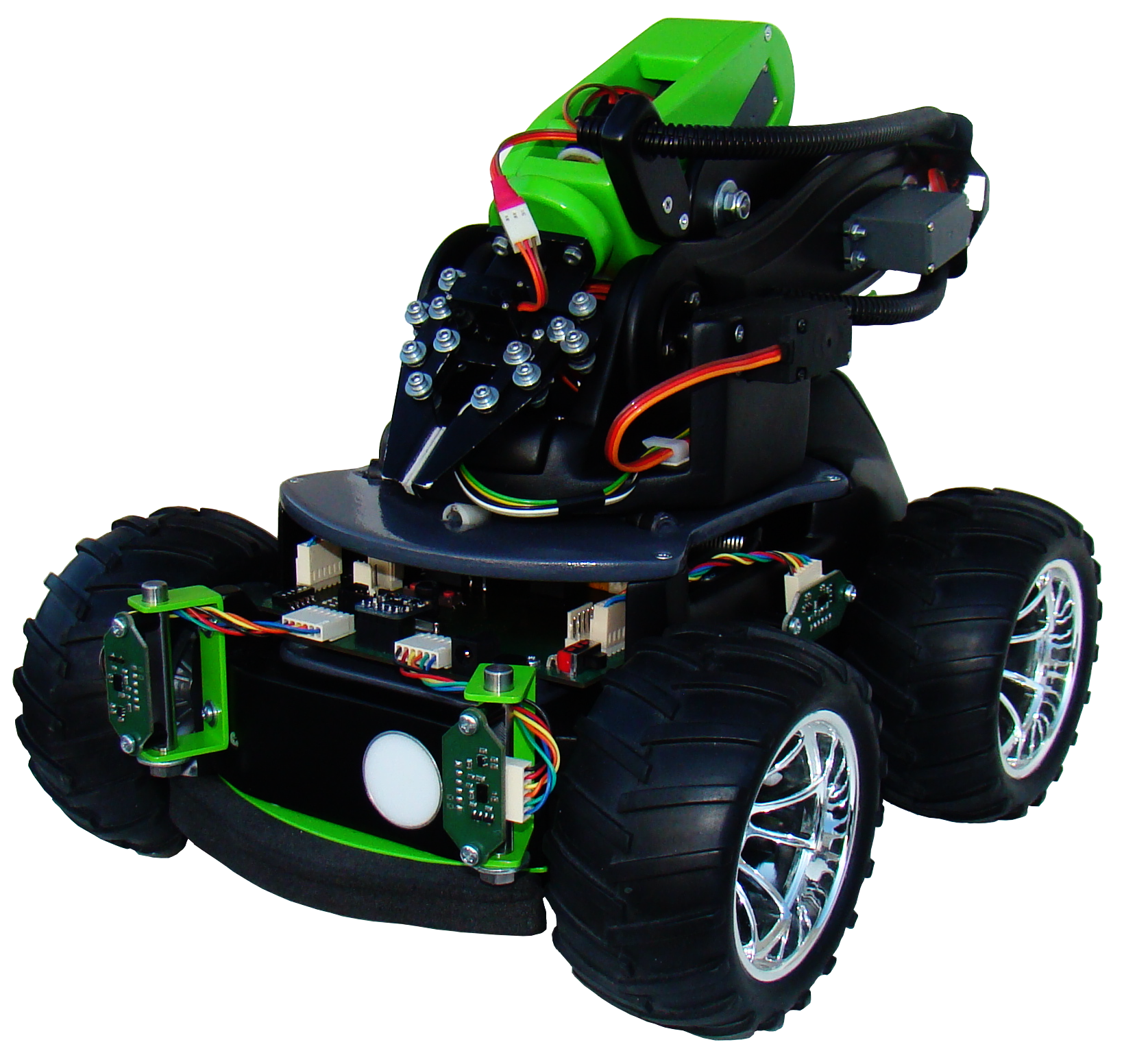

This project is focused on a design of an autonomous robot including its electronics and basic software to present robot's features

UNICON board, from the project README
From the project README

Main components on the UNICON board

ATXMEGA64A1-ALF33CDT

UNICON board bill of materials (BOM)

127 components, 52 distinct parts.

QtyPartRefs
1
ATXMEGA64A1-A
IC1
1
LF33CDT
U1
1
BS133
Q1
1
35Mhz
X1
1
CONN_5X2
P1
1
Sens3
P2
1
Sens2
P3
1
compss
P4
1
Sens4
P5
1
Supp_board
P6
1
Sens0
P7
1
Sens1
P8
1
I2C_1
P9
1
I2C_0
P10
3
CONN_6
P11, P13, P14
1
CONN_4
P12
1
RPI_supp
P15
1
Add_BRD
P16
1
BATT
P17
1
GPIOs
P18
Show 32 more
QtyPartRefs
1
Power
K1
1
PCA9551
LDR1
1
relay
RL1
2
UBEC(5A)
S1, S2
1
DIPS_05
SW1
1
REBOOT
SW2
1
SWITCH_INV
SW3
1
MODE
SW4
2
3V6
Z1, Z2
2
DIODESCH
D1, D2
6
LED
D3, D4, D5, D7, D8, D9
1
ZENER
D6
8
FILTER
FB1, FB2, FB3, FB4, FB5, FB6, FB7, FB8
1
FERIT
FB9
1
10uH
L1
1
0.1uF
C1
1
2.2uF
C2
3
22pF
C3, C4, C5
2
10uF
C6, C17
10
100nF
C7, C8, C9, C10, C11, C12, C13, C14 +2
4
C
C18, C19, C20, C21
2
820
R1, R2
2
220
R3, R4
5
10K
R5, R11, R36, R37, R42
12
180
R6, R7, R18, R19, R20, R21, R22, R23 +4
3
250
R8, R9, R10
6
4K7
R12, R13, R14, R15, R16, R17
4
100K
R28, R29, R30, R31
4
170K
R32, R33, R34, R35
4
100
R38, R39, R40, R41
11
0
R43, R44, R46, R47, R48, R49, R50, R51 +3
1
180
R45

UNICON board design files

The KiCad project lives in the dodotronix/RobotClaire repository on GitHub; these links point at the commit this page was built from.

UNICON board: common questions

What microcontroller does the UNICON board use?

The UNICON board is built around the ATXMEGA64A1-A, from the AVR/Arduino family.

How big is the UNICON board?

The UNICON board measures 127 × 110 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the UNICON board?

127 components, from 52 distinct parts. The full bill of materials is listed on this page.

Where can I download the UNICON board design files?

From the dodotronix/RobotClaire repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the UNICON board design in my own project?

The repository has no license, so all rights stay with dodotronix. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the UNICON board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
