TS4231-breakout board

DotBots·TS4231-breakout-board

TS4231-breakout board layout, top view — open source board by DotBots

About the TS4231-breakout board

TS4231-breakout board is an open source PCB design by DotBots, published on GitHub under the BSD-3-Clause license. It is a 2-layer board measuring 12 × 12.9 mm, with 6 components from 6 distinct parts.

Other key parts include the TS4231. By type, the board carries 2 capacitors, 1 IC, 1 connector, 1 diode and 1 resistor.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Kicad hardware files for a breakout board of the TS4231 lighthouse v2 receiver IC from Triad Semiconductors.

The schematic was taken directly from the recommended circuit from the TS4231 datasheet.

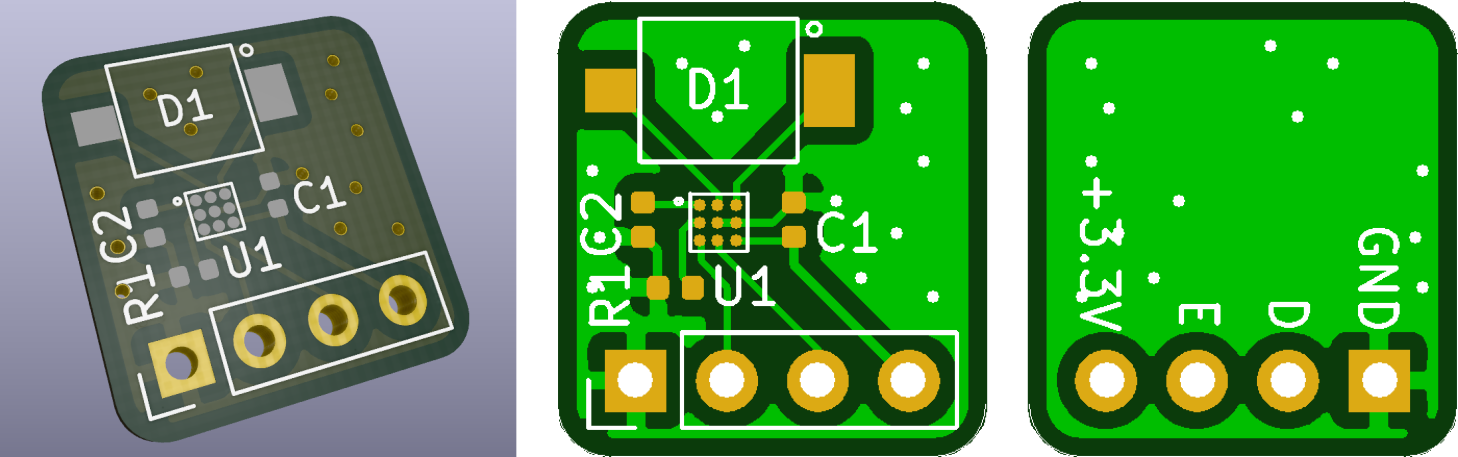

TS4231-breakout board, from the project README
From the project README

Main components on the TS4231-breakout board

TS4231

TS4231-breakout board bill of materials (BOM)

6 components, 6 distinct parts.

QtyPartRefs
1
TS4231
U1
1
Conn_01x04
J1
1
BPW34S
D1
1
100nF
C1
1
1uF
C2
1
15k
R1

TS4231-breakout board design files

The KiCad project lives in the DotBots/TS4231-breakout-board repository on GitHub; these links point at the commit this page was built from.

TS4231-breakout board: common questions

How big is the TS4231-breakout board?

The TS4231-breakout board measures 12 × 12.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the TS4231-breakout board?

6 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the TS4231-breakout board design files?

From the DotBots/TS4231-breakout-board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the TS4231-breakout board design in my own project?

Yes, under the terms of its BSD-3-Clause license, which DotBots chose for the repository.
