Ir smart led controller

dotcypress·ir-smart-led-controller·pcb/ir-smart-led-controller.kicad_pcb

Ir smart led controller PCB layout, top view — open source STM32 board by dotcypress

About the Ir smart led controller PCB

Ir smart led controller is an open source STM32 PCB design by dotcypress, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 11 × 22.1 mm, with 7 components from 5 distinct parts.

Its main chip is the STM32G030J6Mx, from the STM32 family. Other key parts include the TSSP58038 and LDK220. By type, the board carries 3 ICs, 3 capacitors and 1 connector.

It belongs with the displays & leds designs in this gallery.

From the project

IR Remote Controller for WS2812(or analog) LED Strip

IR Remote Controller for WS2812(or analog) LED Strip.

- Apache License, Version 2.0 (LICENSE-APACHE or http://www.apache.org/licenses/LICENSE-2.0) - MIT license (LICENSE-MIT or http://opensource.org/licenses/MIT)

Unless you explicitly state otherwise, any contribution intentionally submitted for inclusion in the work by you, as defined in the Apache-2.0 license, shall be dual licensed as above, without any additional terms or conditions.

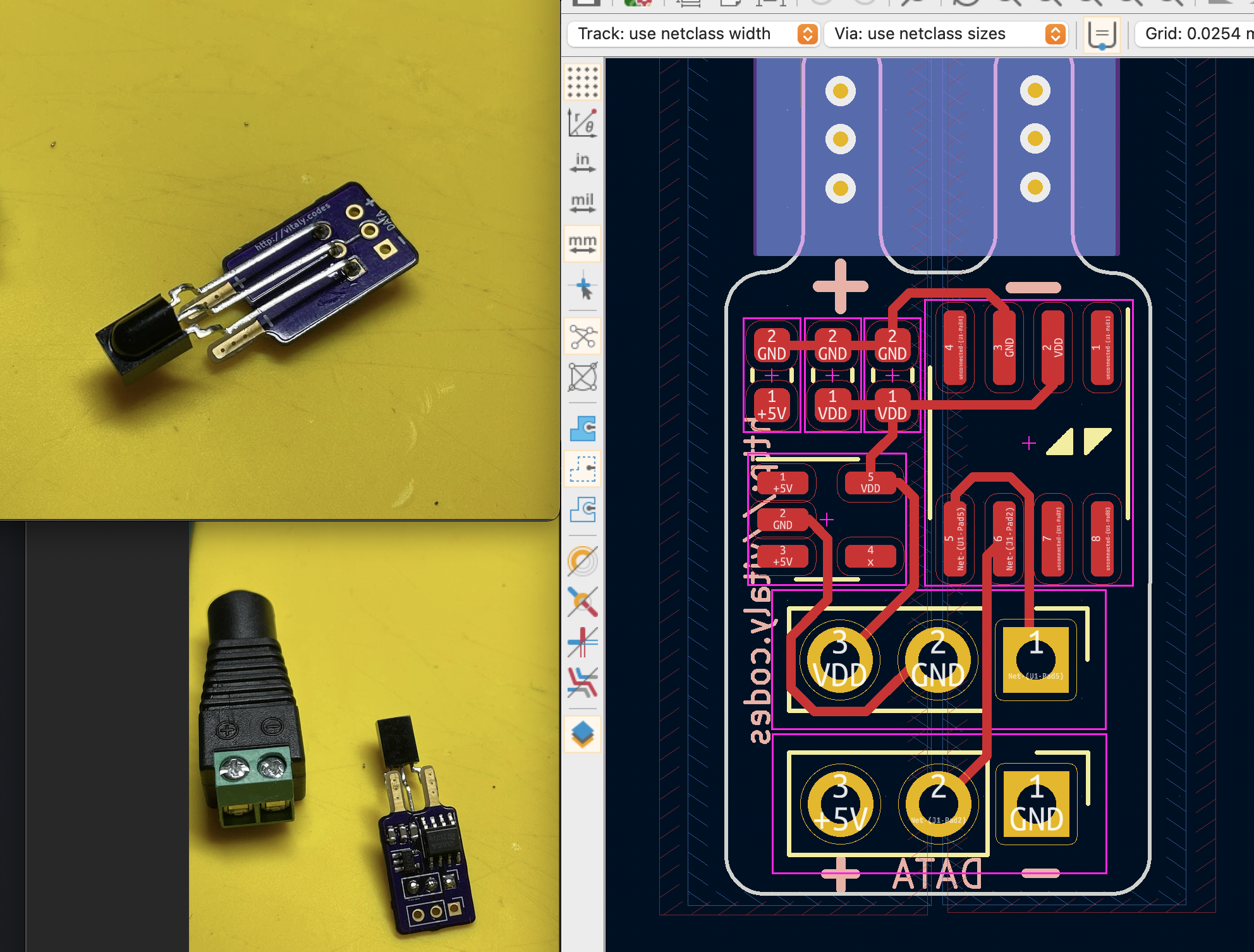

Ir smart led controller, from the project README
From the project README

Main components on the Ir smart led controller

STM32G030J6MxTSSP58038LDK220

Ir smart led controller bill of materials (BOM)

7 components, 5 distinct parts.

QtyPartRefs
1
STM32G030J6Mx
U1
1
TSSP58038
U2
1
LDK220
U3
1
Conn_01x03
J1
3
C
C1, C2, C3

Ir smart led controller design files

The KiCad project lives in the dotcypress/ir-smart-led-controller repository on GitHub; these links point at the commit this page was built from.

Ir smart led controller: common questions

What microcontroller does the Ir smart led controller use?

The Ir smart led controller is built around the STM32G030J6Mx, from the STM32 family.

How big is the Ir smart led controller PCB?

The Ir smart led controller measures 11 × 22.1 mm, has 2 copper layers and is 0.332 mm thick.

How many components are on the Ir smart led controller?

7 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the Ir smart led controller design files?

From the dotcypress/ir-smart-led-controller repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Ir smart led controller design in my own project?

Yes, under the terms of its Apache-2.0 license, which dotcypress chose for the repository.

Can I test firmware for the Ir smart led controller without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
